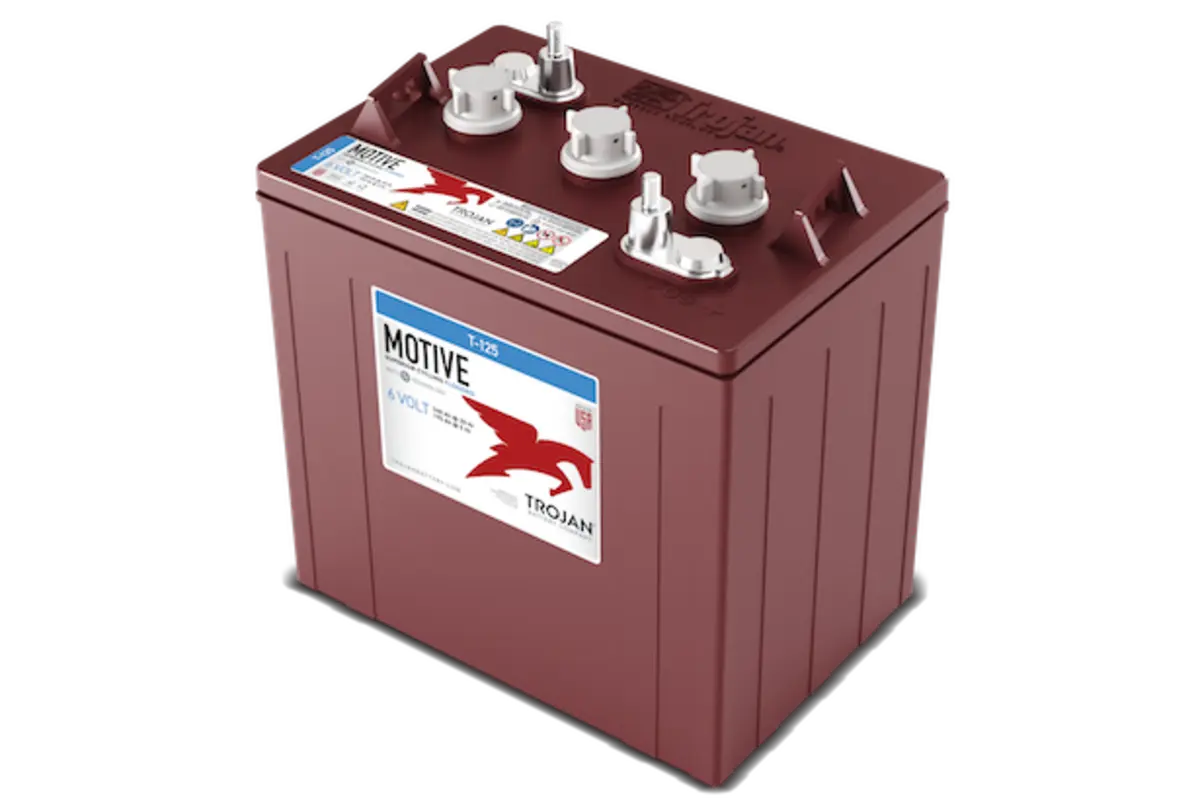

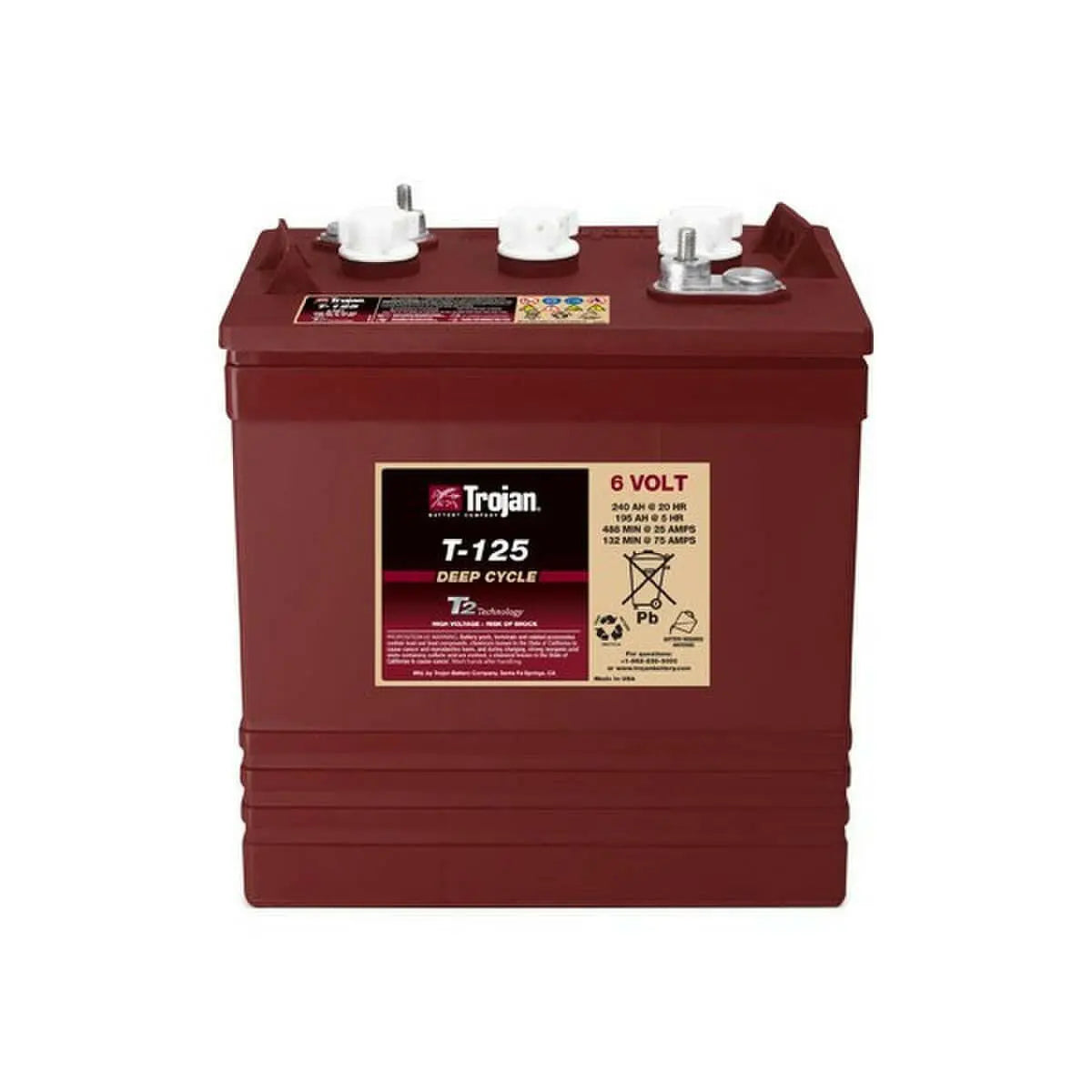

Trojan Battery 6 V 240 Ah Deep-Cycle Flooded Lead Acid Battery with Bayonet Cap

The T-125 6V Flooded lead acid battery provides excellent performance with increased total energy for different applications, such as Transportation or Marine. The technology of this battery delivers sustained power, reduces downtime, and lowers overall maintenance costs.

Features

• Part of the Signature Line, the flagship Trojan flooded lead-acid batteries
• Featuring Alpha Plus® paste with T2 Technology for maximum sustained performance, longer life and increased total energy
• Maxguard T2 advanced separator sustains performance providing exceptionally longer battery life and significantly lowering your operating costs
• Manufactured polypropylene rugged case
• Heat and corrosion resistant
• HydroLink™ single-point watering system makes maintenance easy and safe
• Only 5-15% self-discharge per month
• 4 different terminal types
• 99% recyclable
• HydroLink™ watering system


Specifications

• Type: With Bayonet Cap, Deep-Cycle Flooded
• Voltage Rating: 6 V
• Nominal Capacity: 488 min at 25 A, 132 min at 75 A, 195 Ah at 5 hr, 221 Ah at 10 hr, 240 Ah at 20 hr, 266 Ah at 100 hr
• Dimensions: 10.30 in Length x 7.13 in Width x 11.15 in Height
• Material: Polypropylene
• Battery Group Size: Gc2
• Operating Temperature: -20 to 45 deg C
• Self-Discharge Rate: 5-15% per Month Depending on Storage Temperature Conditions
• Charge Voltage Rating: 6 V System Voltage, 7.4 V Bulk Charge, 6.7 V Float Charge, 8.1 V Equalize Charge
• Terminal: 1, 2, 3, 4
• Technology: Flooded, Embedded Low-Profile Terminal
• Color: Maroon
• Float Charge: 6.7 V
• Equalize Charge: 8.1 V
• Bulk Charge: 7.4 V
• Standards: ISO, IEC
• Weight: 66 lb
• Warranty: 1-8 Years


Documents

• Specification Sheet
• Instruction/Installation Manual
• Warranty Information
