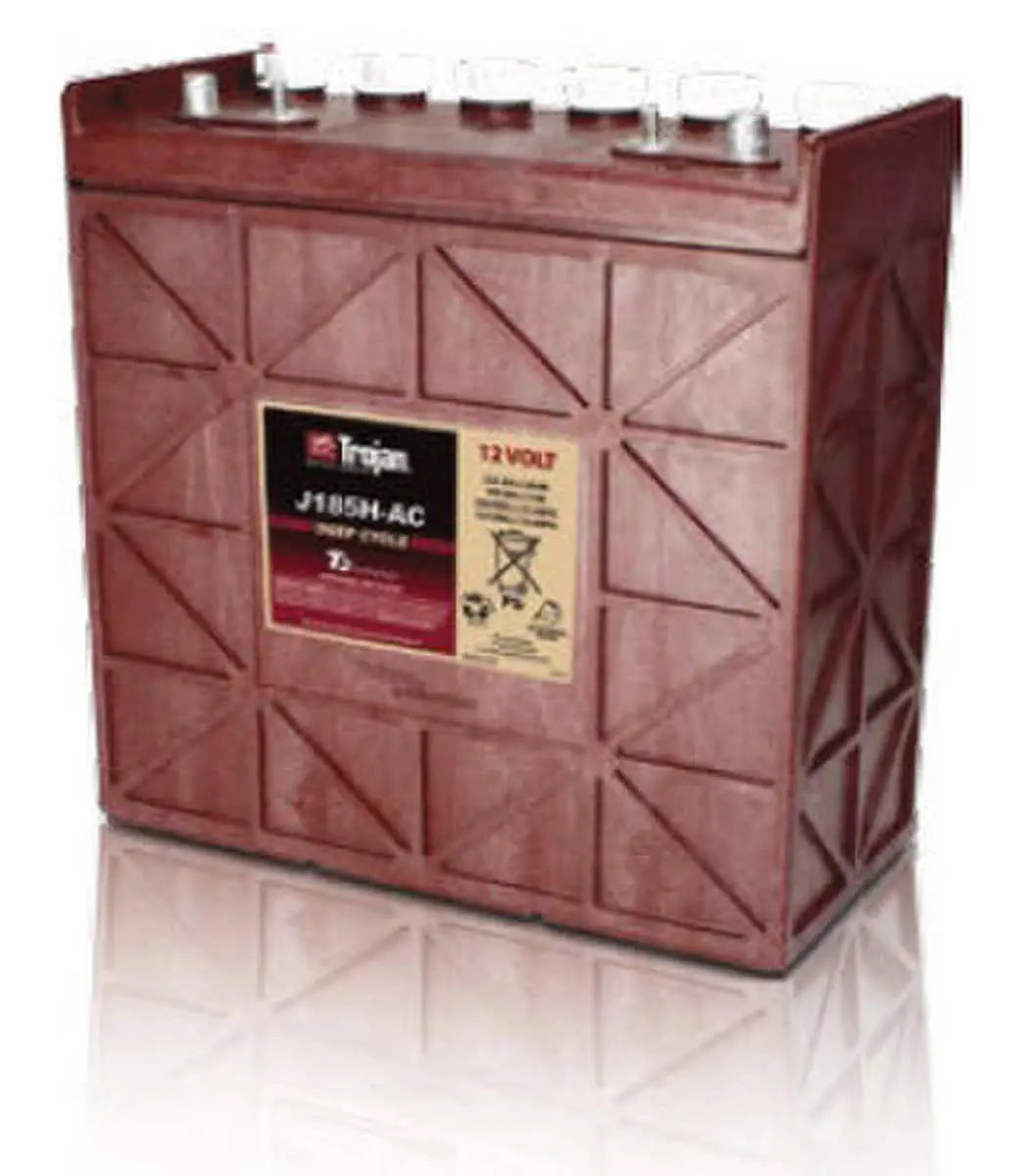

Trojan Battery 12 V 225 Ah Flooded Lead Acid Battery

The J185H-AC 12V Flooded Lead Acid battery provides the necessary energy output to improve the performance of Floor Cleaning Machines or Marine applications. This AC Series™ battery provides maximum uptime and more productive hours on the job.

Features

• Maxguard® Advanced Design Separator and Alpha Plus® paste formulation for long life, industry-leading performance, and lower overall maintenance costs
• Two battery case options
• Polyon™ case for exceptional durability in heavy service applications
• Generic case design for standard applications
• Heat and corrosion resistant
• With handles for easy carrying
• HydroLink™ single-point watering system available
• Only 5-15% self-discharge per month
• 99% recyclable


Specifications

• Type: Flooded
• Nominal Capacity: 440 min at 25 A, 121 min at 75 A, 185 Ah at 5 hr, 207 Ah at 10 hr, 225 Ah at 20 hr, 249 Ah at 100 hr
• Dimensions: 14.97 in Length x 6.91 in Width x 14.71 in Height
• Material: Polypropylene
• Battery Group Size: 921
• Operating Temperature: -20 to 45 deg C
• Self-Discharge Rate: 5-15% per Month Depending on Storage Temperature Conditions
• Terminal: 6
• Energy: 2.99 kWh
• Color: Maroon
• Absorption Charge: 14.8 at 12 V, 29.6 at 24 V, 44.4 at 36 V, 59.2 at 48 V
• Float Charge: 13.2 at 12 V, 26.4 at 24 V, 39.6 at 36 V, 52.8 at 48 V
• Equalize Charge: 15.5 at 12 V, 31 at 24 V, 46.5 at 36 V, 62 at 48 V
• Standards: UL Listed
• Weight: 128 lb
• Warranty: 2 Years Limited
