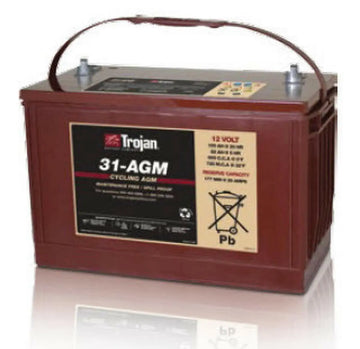

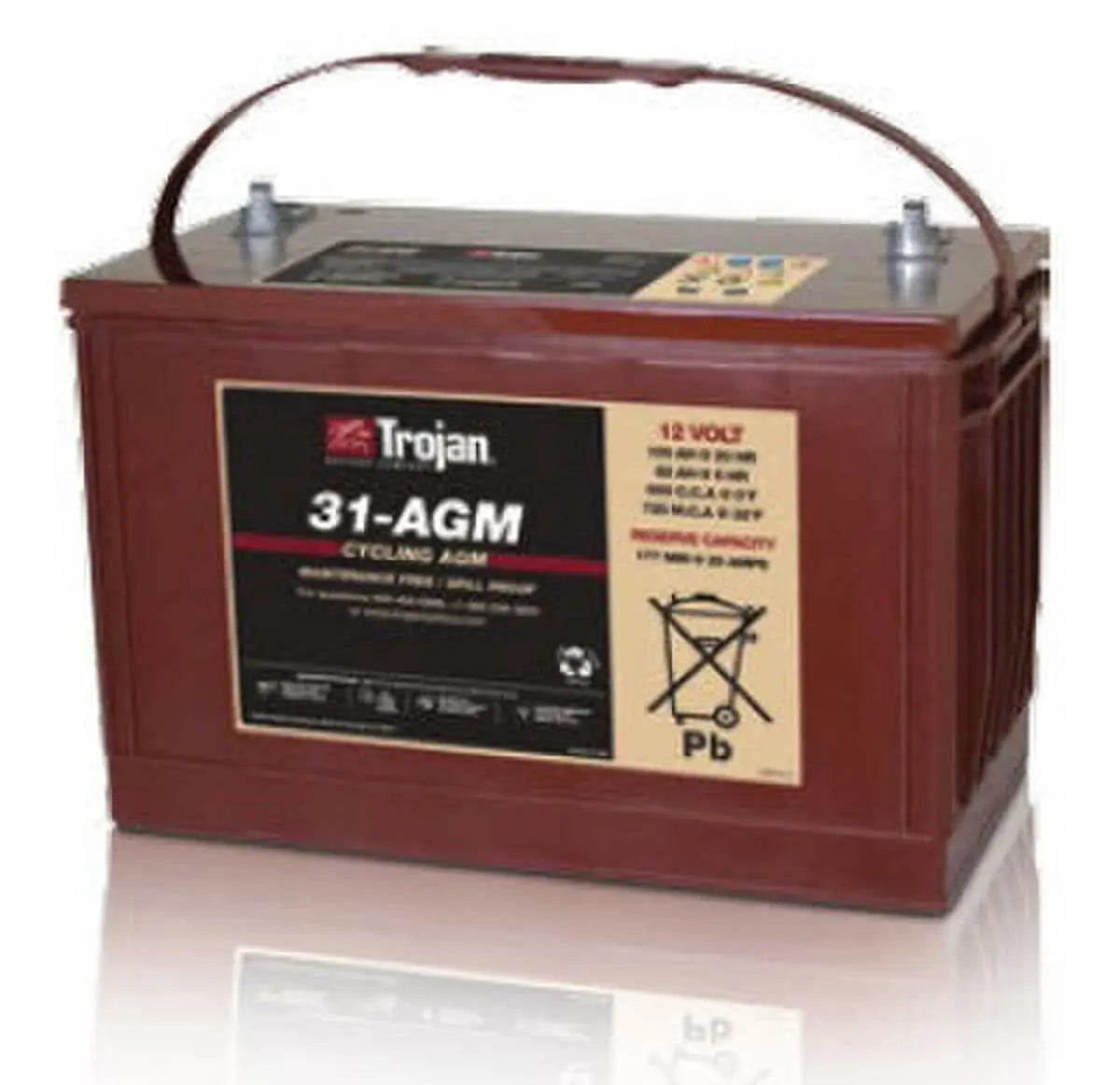

Trojan Battery 12 V 100 Ah Lead Acid Battery

Trojan's deep-cycle absorbed glass mat (AGM) maintenance-free batteries for renewable energy applications feature a number of design elements to provide optimum performance. Robust plates extend the life-cycle of Trojan's deep-cycle AGM batteries. A separator of glass fibers serves to isolate the positive and negative plates while acting as a blotter to absorb the electrolyte. The separator is maintained under compression between plates to assure contact with plate surfaces. A computer-generated grid design is optimized for high-power density. Low calcium grid alloy reduces gas emissions and a flame arresting, one-way pressure relief vent prevents buildup of excessive pressure. Trojan's deep-cycle AGM batteries are low temperature tolerant, shock and vibration resistant and have a low internal resistance for higher discharge current and higher charging efficiency.

Features

• Safety - Calcium grid allow reduces gas emissions. Flame arresting one-way pressure relief vent prevents buildup is optimized for high power density
• Efficient - Low internal resistance for higher discharge current and higher charging efficiency
• Flexible - Maintenance free design with optimum performance


Specifications

• Voltage Rating: 12 V
• Nominal Capacity: 177 min at 25 A, 82 Ah at 5 hr, 92 Ah at 10 hr, 100 Ah at 20 hr, 111 Ah at 100 hr
• Dimensions: 13.73 in Length x 6.8 in Width x 9.16 in Height
• Material: Polypropylene
• Battery Group Size: 31
• Operating Temperature: -20 to 45 deg C
• Self-Discharge Rate: <3% per Month Depending on Storage Temperature Conditions
• Terminal: 6
• Technology: VRLA AGM
• Energy: 1.33 kWh
• Color: Maroon
• Absorption Charge: 14.1-14.7 at 12 V, 28.2-29.4 at 24 V, 42.3-44.1 at 36 V, 56.4-58.8 at 48 V
• Float Charge: 13.5 at 12 V, 27 at 24 V, 40.5 at 36 V, 54 at 48 V
• Cranking Performance: 600 C.C.A at 0 deg F, 720 C.A. at 32 deg F
• Standards: UL Listed
• Weight: 69 lb
• Warranty: 2 Years Limited
