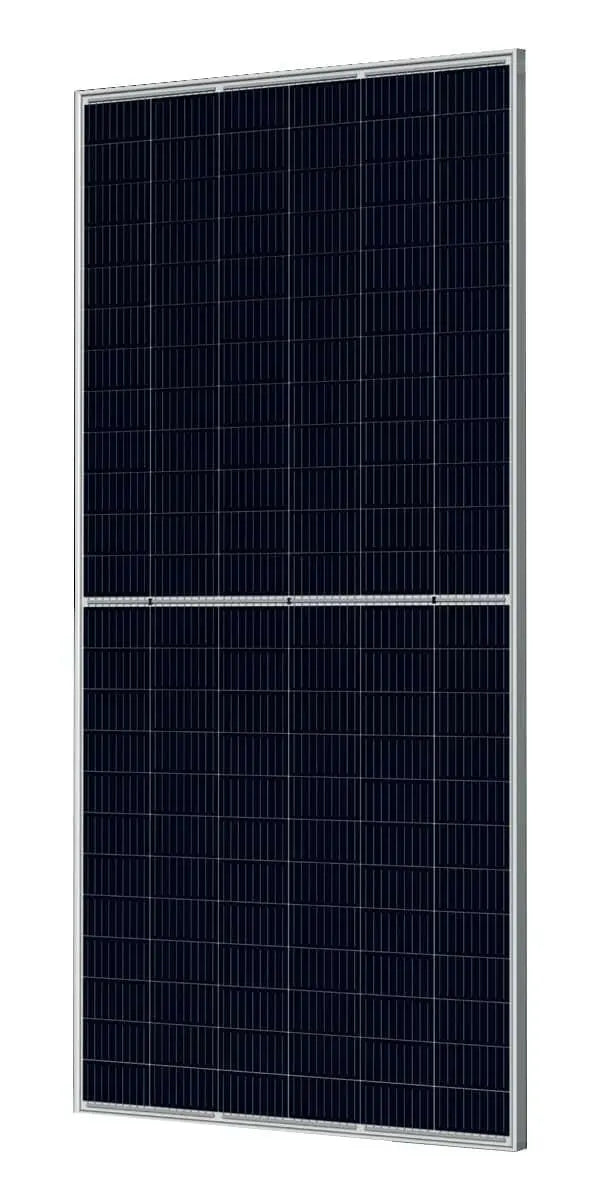

TrinaSolar TSM-400-DE15M(II) 400w Mono Solar Panel

Explore the Robust Features of the TrinaSolar Solar Panel TSM-400-DE15M(II) 400W Mono

Trina Solar's TALLMAX modules enable commercial and utility-scale solar projects to realize significant system savings. As a vertically integrated company, Trina Solar controls the quality for our PV systems across the entire supply chain, mitigating risk and boosting ROI. Trina Solar was the first PV company to be awarded UL's Client Test Data Program Certification, allowing us to test and issue UL-recognized quality standards.

Features

• Highly reliable due to stringent quality control - TALLMAX, TALLMAX M PLUS and TALLMAX 1500V modules are recognized by industry professionals for their proven historical performance in the field and high manufactured quality. Their industry leading quality and reliability is assured by Trina's rigorous in-house testing program that includes over 30 tests, and goes well beyond the requirements of reputed industry standard certification bodies
• A partner you can count on - Your solar project is an investment that will span decades. At Trina Solar, we offer an industry-leading Limited Manufacturer's Warranty for 25 years on a linear degradation
• Split-cell technology - upgrade option - Trina Solar half-cut modules are developed by replacing the full cell with half-cut cell technology and are available in both poly- and monocrystalline. Two pieces of half cells are connected in series; the power loss caused by ribbon resistance is reduced to 1/4 of that in full cell. The special cell string design makes each cell string can work independently which can significantly reduce the energy loss due to the mismatch problem which may be caused by shading between modules
• High Power Output - Multi busbar technology combined with mono PERC cells. Reduced BOS costs with higher power bins and 1500V system voltage. Consistently high bankability ratings by BNEF, banks and investors
• High Efficiency - Optimized power output under inter-row shading conditions. Low thermal coefficients for higher energy yield at elevated operating temperatures. Reduced interconnection losses
• Reliable - Over 30 in-house tests (UV, TC, HF etc). Increased-house testing goes well beyond certification requirements. PID resistant. 2x 100% inline EL inspection
• Certified to withstand the most challenging environmental conditions - Salt mist corrosion, Ammonia corrosion, Blowing sand


Specifications

• Series/Model: TallMax M
• Dimensions: 2024 mm (L) x 1004 mm (W) x 35 mm (H)
• Frame Depth: 35 mm
• Cells Technology: Monocrystalline (Mono) Half-Cell
• Number of Half Cells: 144 (6 x 24)
• Maximum Power (Pmax): 400 W STC / 301 W NOCT / 375.2 W PTC
• Maximum Power Voltage (Vmp): 40.3 V STC / 37.9 V NOCT
• Maximum Power Current (Imp): 9.92 A STC / 7.96 A NOCT
• Open-Circuit Voltage (VOC): 49 V STC / 46.1 V NOCT
• Short-Circuit Current (Isc): 10.45 A STC / 8.43 A NOCT
• Maximum System Voltage: 1500 VDC (IEC)
• Maximum Series Fuse Rating: 20 A
• Module Efficiency: 19.7%
• Frame Material: Anodized Aluminum Alloy with 400 mm Mounting Holes
• Front Glass: 3.2 mm High Transmission, Anti-Reflection Coated Heat Strengthened Glass
• Frame Color: Clear
• Backsheet Color: White
• Irradiance: 1000W/m² STC / 800W/m² NOCT
• Output Cables: Photovoltaic Cable 4.0 mm²
  • Portrait: N 140 mm / P 285 mm (5.51 / 11.22 in)
  • Landscape: N 1400 mm / P 1400 mm (55.12 / 55.12 in)
• Connector Type: TS4
• Front Side Maximum Static Loading: 5400 Pa / 3600 Pa
• Rear Side Maximum Static Loading: 2400 Pa / 1600 Pa
• Operating Temperature: -40 to 185°F
• Cell Temperature: 25°C STC
• Ambient Temperature: 20°C NOCT
• Temperature Coefficients:
  • Pmax: -0.37%/°K
  • VOC: -0.29%/°K
  • Isc: -0.05%/°K
• Nominal Operating Cell Temperature: 41 ± 3°K
• Air Mass (AM): 1.5 STC / 1.5 NOCT
• Junction Box: IP68 Rated
• Power Output Tolerance: 0-5 W
• Encapsulant: Ethylene Vinyl Acetate (EVA)
• Standards:
  • CE, UL, TUV, PV Cycle, cULus
  • IEC 61215 / IEC 61730 / UL 1703 / IEC 61701 (Salt Mist Corrosion)
  • IEC 62716 (Ammonia Corrosion)
  • IEC 60068 (Blowing Sand)
  • ISO 9001, ISO 14001, OHSAS 18001
• Warranty: 10 Years Product, 25 Years Power
• Weight: 22.8 kg


Documents

• Specification Sheet


High Efficiency and Advanced Technology

The TrinaSolar solar panel is designed to deliver high efficiency and long-lasting performance. The TSM-400-DE15M(II) 400W Mono model uses monocrystalline silicon technology, which offers superior power conversion rates compared to traditional panels. This makes it an excellent choice for residential and commercial solar installations, ensuring you get the most energy out of limited space. Its PERC (Passivated Emitter Rear Cell) technology boosts efficiency by reflecting unused light back into the cell, increasing power output and reliability over time.

Durability and Weather Resistance

Built to withstand harsh environmental conditions, the TrinaSolar solar panel features a robust frame and durable tempered glass. It is tested under rigorous conditions for high wind loads and snow pressure, ensuring consistent performance even in extreme weather. The anti-PID (Potential Induced Degradation) technology further guarantees stability and longevity, making it a dependable solution for long-term solar energy generation.

Easy Installation and Versatility

The TrinaSolar TSM-400-DE15M(II) 400W Mono solar panel is designed for hassle-free installation. Its standard sizing and lightweight construction facilitate easy handling and mounting on various surfaces, including rooftops and ground mounts. Compatible with a wide range of solar inverters and mounting systems, this panel offers flexibility for multiple applications, from small-scale home systems to larger commercial projects.
