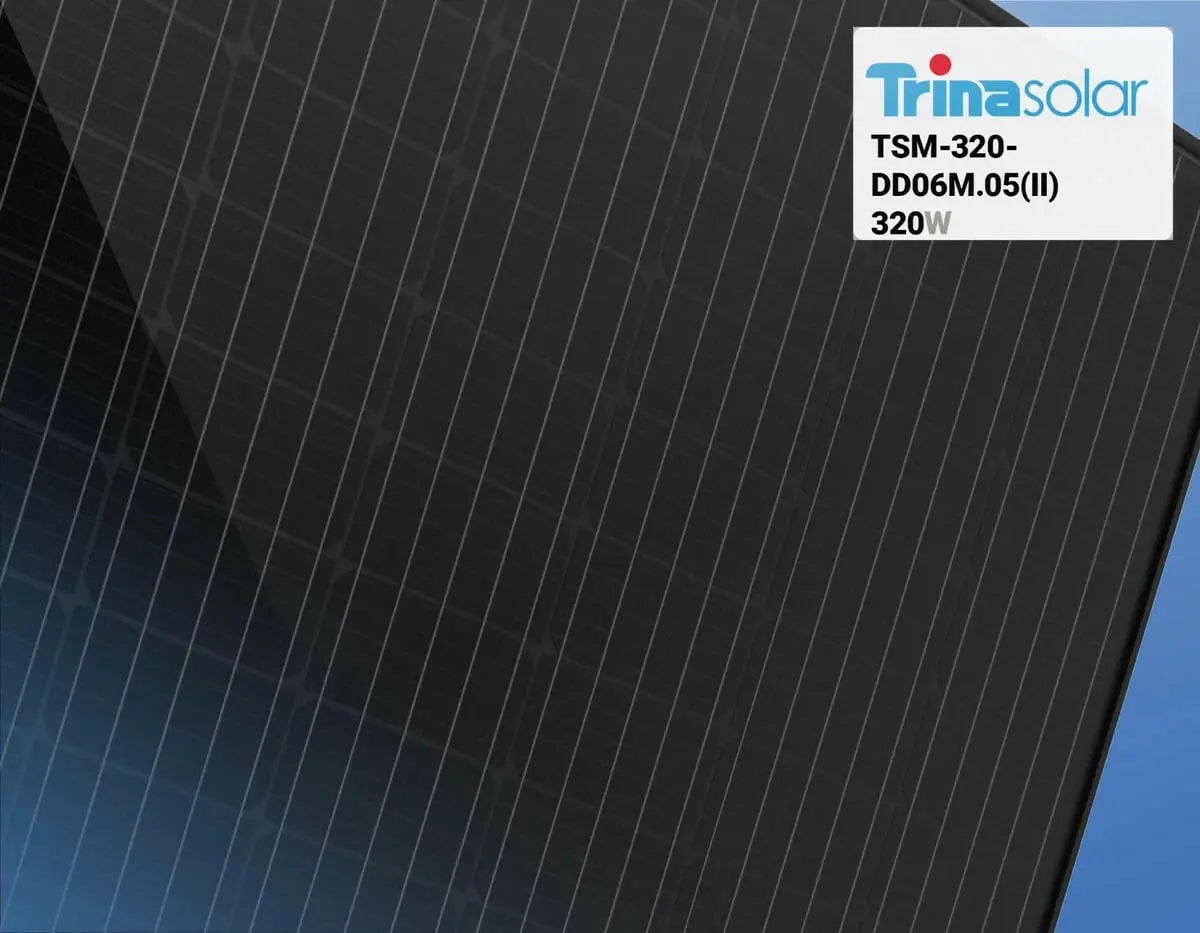

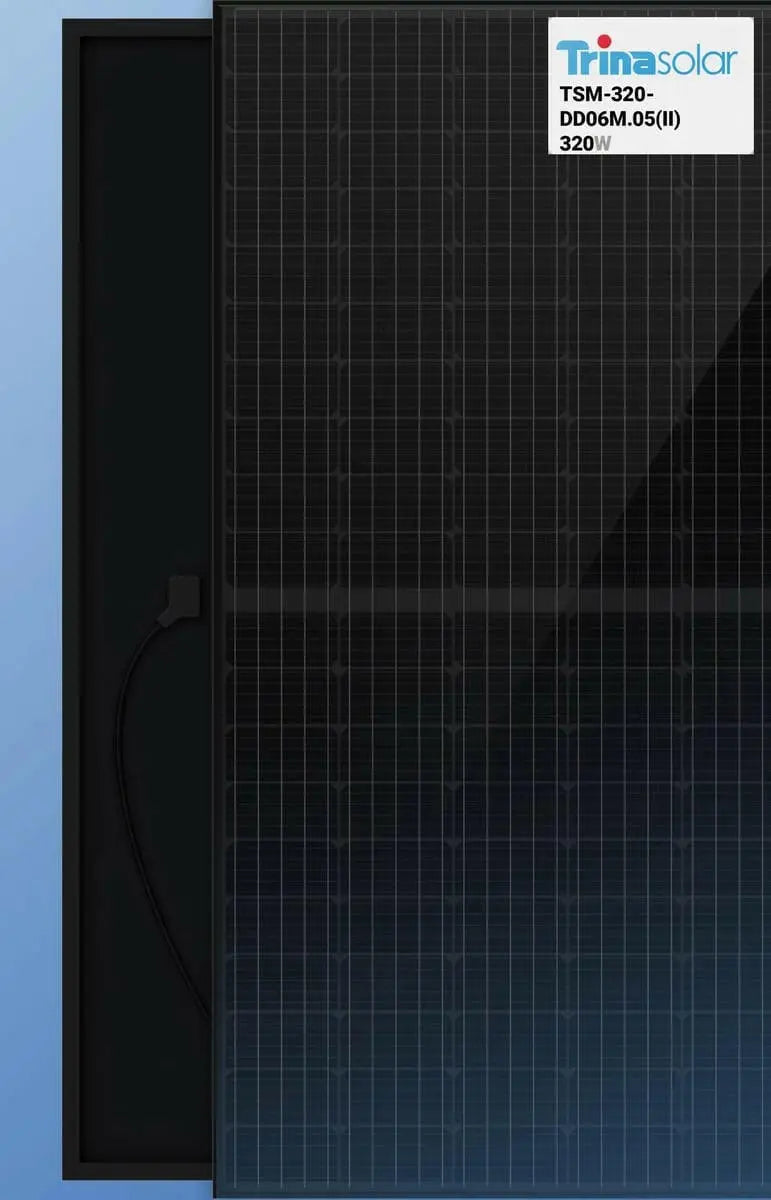

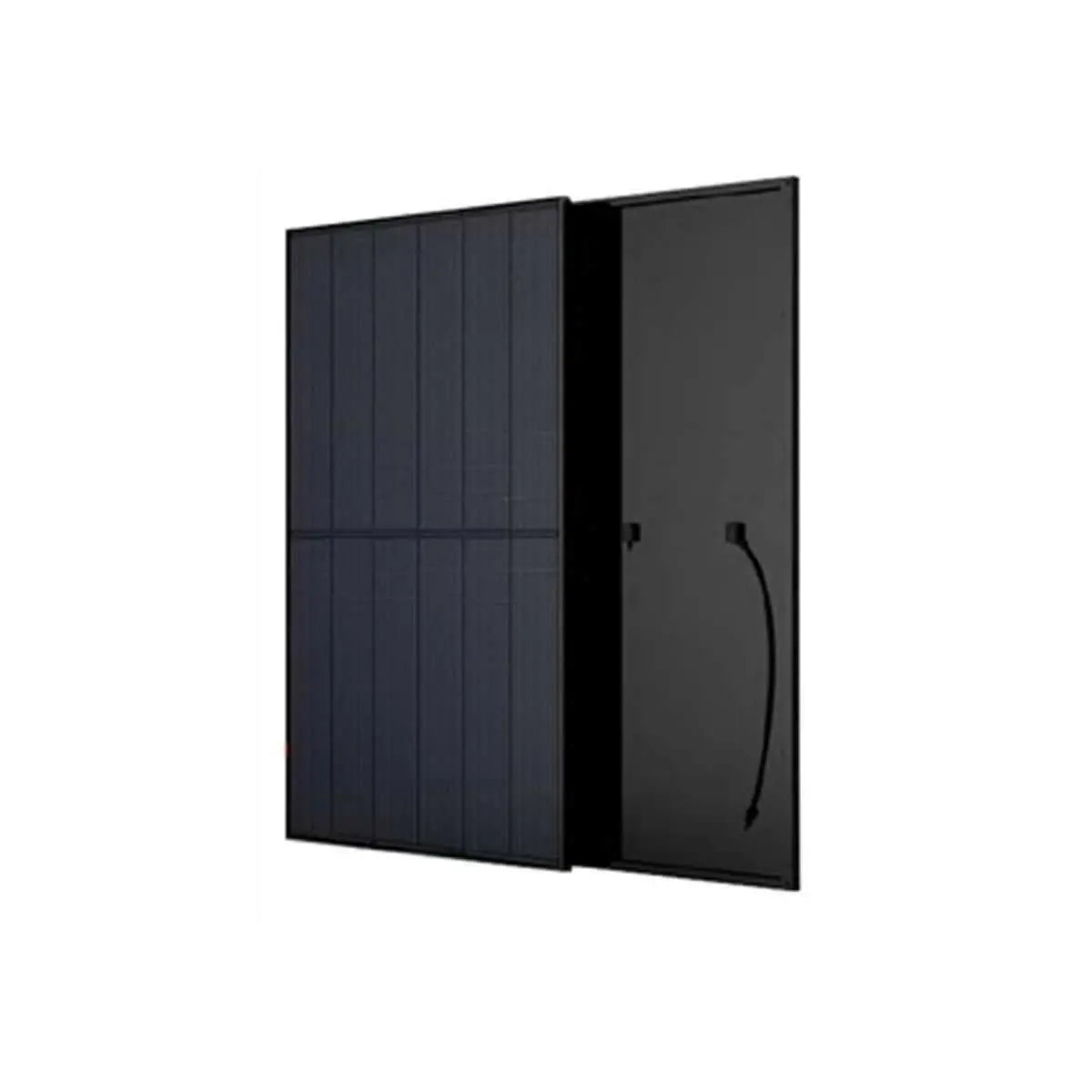

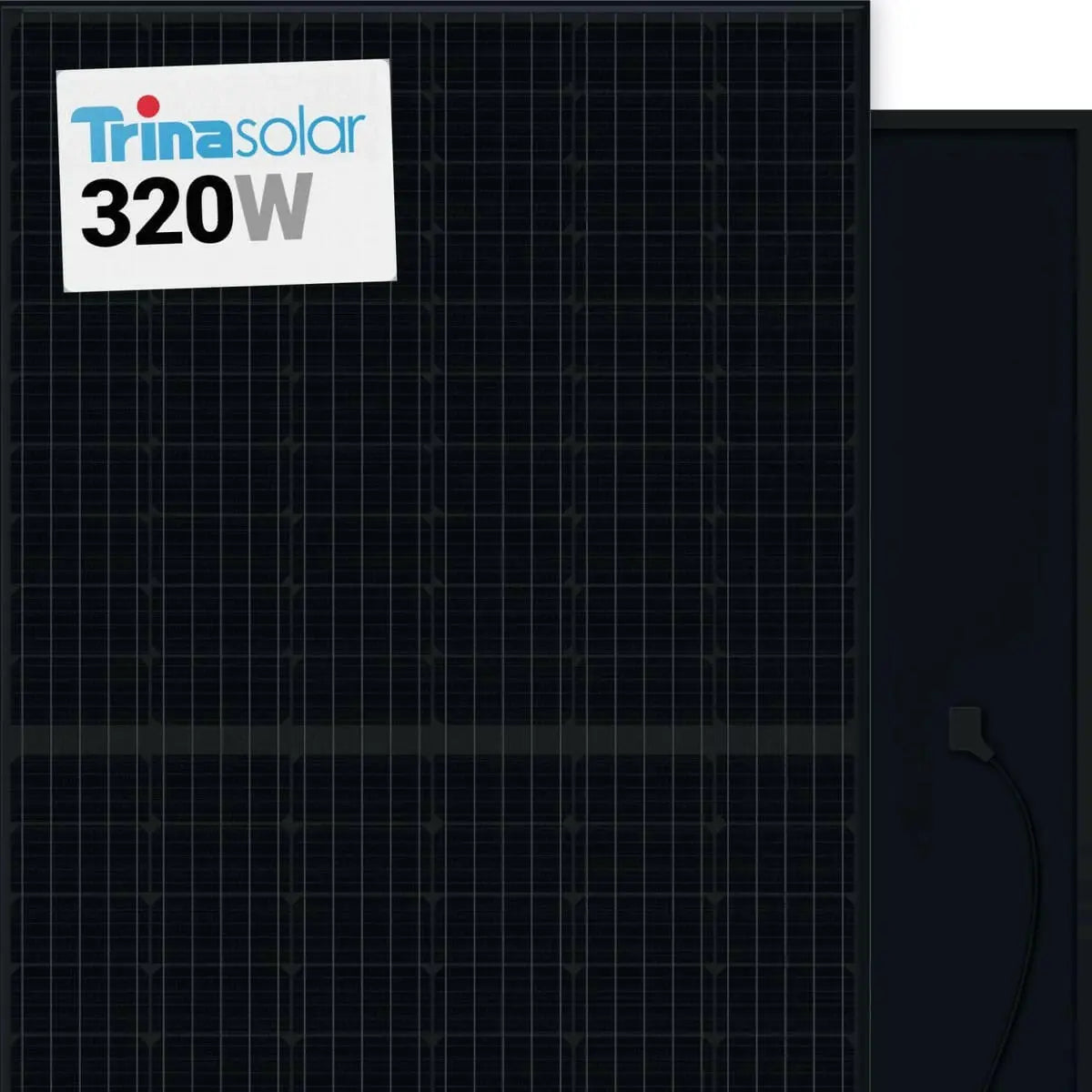

Trina Solar TSM-320-DD06M.05(II) 320W Mono Solar Panel

Overview of the Trina Solar 320W solar panel

TrinaSolar residential panels offer home and business owners reliable power paired with great aesthetics. Available with black or silver frames set to black or white backsheets, TrinaSolar residential modules deliver a sleek visual profile and are backed by TrinaSolar's quality guarantee and our industry-leading 25-Year Limited Manufacturer's Warranty. Dependable and sleek home solar panels. Trina Solar DD06M series modules feature half cut cell architecture with a split center mounted J-Box layout. Split series cell layout improves module resilience and reduces the impact of partial shade. These modules include 1200mm cables - compatible with landscape layout.

Features

• High Power Output - Reduce BOS cost with high power bin and module efficiency. New cell string layout and split junction box location reduces the energy loss caused by inter-row shading. Lower resistance of half-cut cells and increased MBB (Multi Busbar) reflectance ensure higher power
• High Efficiency & Low LCOE - Excellent 3rd party validated IAM and low light performance with cell process and module material optimization. Low Pmax temp coefficient (-0.36%) increases energy production. Better ani-shading performance and lower operating temperature
• Excellent Aesthetics & Easy Installation - Designed for superior rooftop aesthetics. Thinner wires give an eye catching all black look. Safe and easy to transport, handle and install. Certified to perform in highly challenging environments
• Certified to perform in highly challenging environments - High PID resistance through cell process and module material control, Resistant to salt, acid, sand and ammonia, over 30 in-house tests (UV, TC, HF etc), certified to 5400pa positive load and 2400Pa negative load
• Bringing added protection and total peace of mind: Now residential solar installers have access to premium solar modules at affordable prices with 25/25-year warranties
• Industry-leading technological integration: Half-cut and multi busbar (MBB) cell technology improves module efficiency by more than 2%
• Exceptional reliability: Trina Solar's products have always maintained high reliability and solid performance based on rigorous raw material selection and full value chain control of the production line. With the high standard and systematic quality control, Trina Solar ranked as "Top performer" in DNV GL scorecard for 4 consecutive years


Specifications

• Length: 1690 mm
• Width: 996 mm
• Height: 35 mm
• Frame Depth: 35 mm
• Cells Technology: Monocrystalline (Mono)
• Number of Half Cells: 120 (6 x 20)
• Maximum Power (Pmax): 320 W STC/242 W NOCT
• Maximum Power Voltage (Vmp): 33.4 V STC/31.4 V NOCT
• Maximum Power Current (Imp): 9.58 A STC/7.71 A NOCT
• Open-Circuit Voltage (VOC): 40.3 V STC/38 V NOCT
• Short-Circuit Current (Isc): 10.2 A STC/8.22 A NOCT
• Maximum System Voltage: 1000 VDC (IEC/UL)
• Maximum Series Fuse Rating: 20 A
• Module Efficiency: 19%
• Frame Material: 35 mm (1.38 in) Anodized Aluminum Alloy
• Front Glass: 3.2 mm (0.12 in), High Transmission, Tempered Glass
• Frame Color: Black
• Backsheet Color: Black
• Irradiance: 1000 W/m² STC/800 W/m² NOCT
• Output Cables: Photovoltaic Technology Cable 4.0 mm² (0.006 sq-in), Landscape: N 1100 mm/P1100 mm (43.31/43.31 in), Portrait: N 140 mm/P 285 mm (5.51/11.22 in)
• Connector Type: MC4
• Fire Type: Type 2
• Front Side Maximum Static Loading: 5400 Pa
• Rear Side Maximum Static Loading: 2400 Pa
• Operating Temperature: -40 to 185 deg F
• Cell Temperature: 25 deg C STC
• Ambient Temperature: 20 deg C NOCT
• Temperature Coefficients of Pmax: -0.36%/deg C
• Temperature Coefficients of Open-Circuit Voltage (VOC): -0.26%/deg C
• Temperature Coefficients of Isc: -0.04%/deg C
• Nominal Operating Cell Temperature: 41 +/-3 deg C
• Air Mass (AM): 1.5 STC/1.5 NOCT
• Junction Box: IP68 Rated
• Power Output Tolerance: 0-5 W
• Encapsulant: Ethylene Vinyl Acetate (EVA)
• Standards: CE, PV Cycle, UL, TUV, IEC61215/IEC61730/IEC61701/IEC67216, ISO 9001: Quality Management System, ISO 14001: Greenhouse Gases Emissions Verification, OHSAS 18001: Occupation Health & Safety Management System, cULus
• Warranty: 10 Years Product, 25 Years Power
• Weight: 18.7 kg
• Application: Residential


Documents

• Specification Sheet
• Instruction/Installation Manual
• Warranty Information

High Efficiency and Power Output

The Trina Solar 320W solar panel delivers exceptional energy conversion efficiency with its monocrystalline cells, maximizing power output in limited spaces. This 320W solar panel is engineered to produce reliable electricity even under low-light conditions, making it ideal for residential and commercial solar installations. Its advanced cell technology ensures consistent performance and helps reduce energy costs by generating more power per panel compared to older models.

Robust Durability and Weather Resistance

Designed for long-term use, the Trina Solar 320W solar panel features a durable frame and tempered glass that resist harsh weather conditions like heavy rain, snow, and strong winds. Its resilient build ensures performance stability and protects the solar cells from environmental damage. This solar panel meets international quality standards, providing peace of mind through dependable energy output across varying climates.

Easy Integration and Versatility

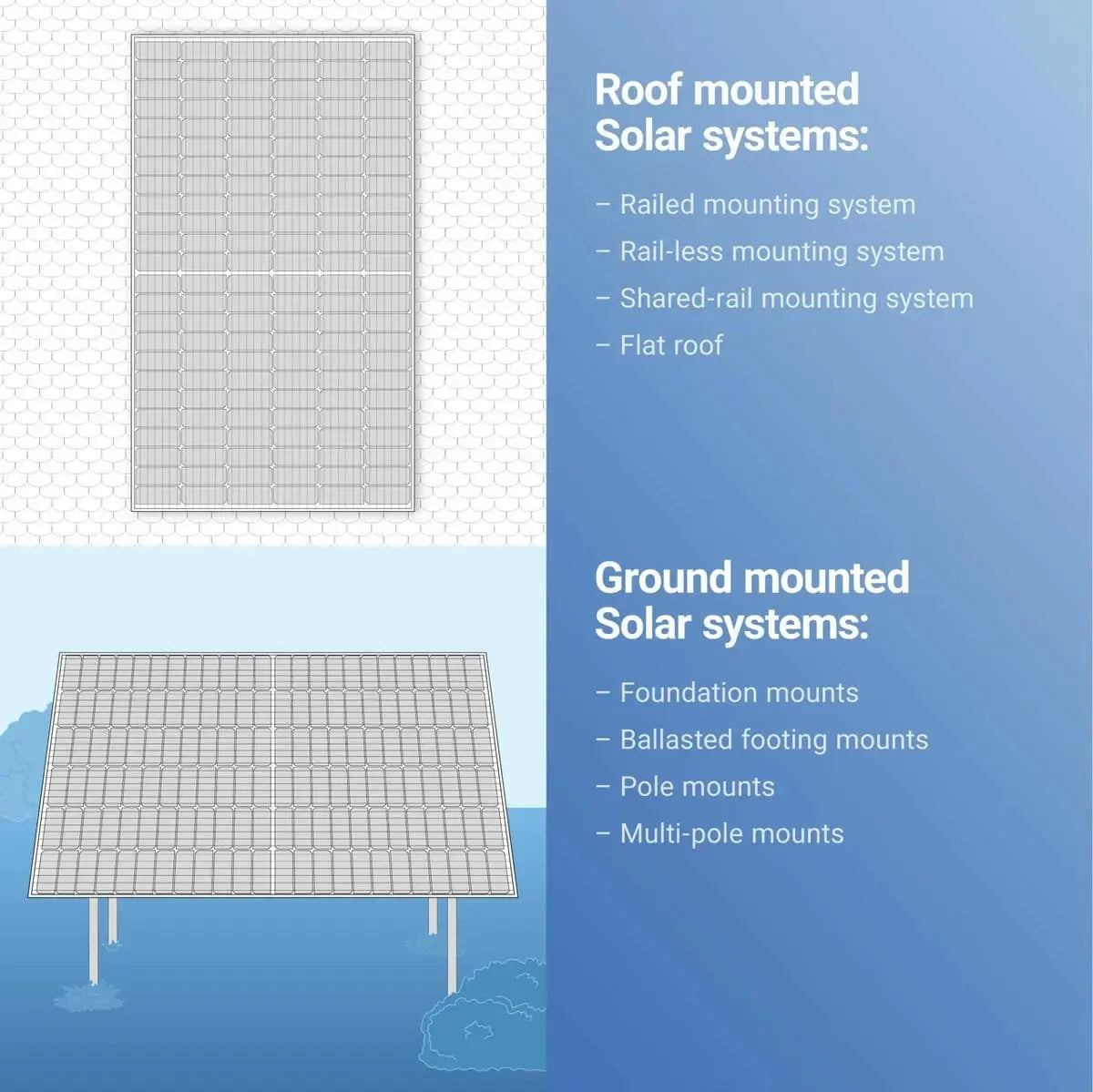

The Trina Solar 320W solar panel offers versatility for diverse solar energy systems with a compact, lightweight design. It is compatible with most inverters and mounting systems, simplifying installation for rooftops, ground mounts, or solar farms. This flexibility makes it a preferred choice for solar power projects seeking efficient, cost-effective renewable energy solutions to reduce carbon footprints and energy bills.
