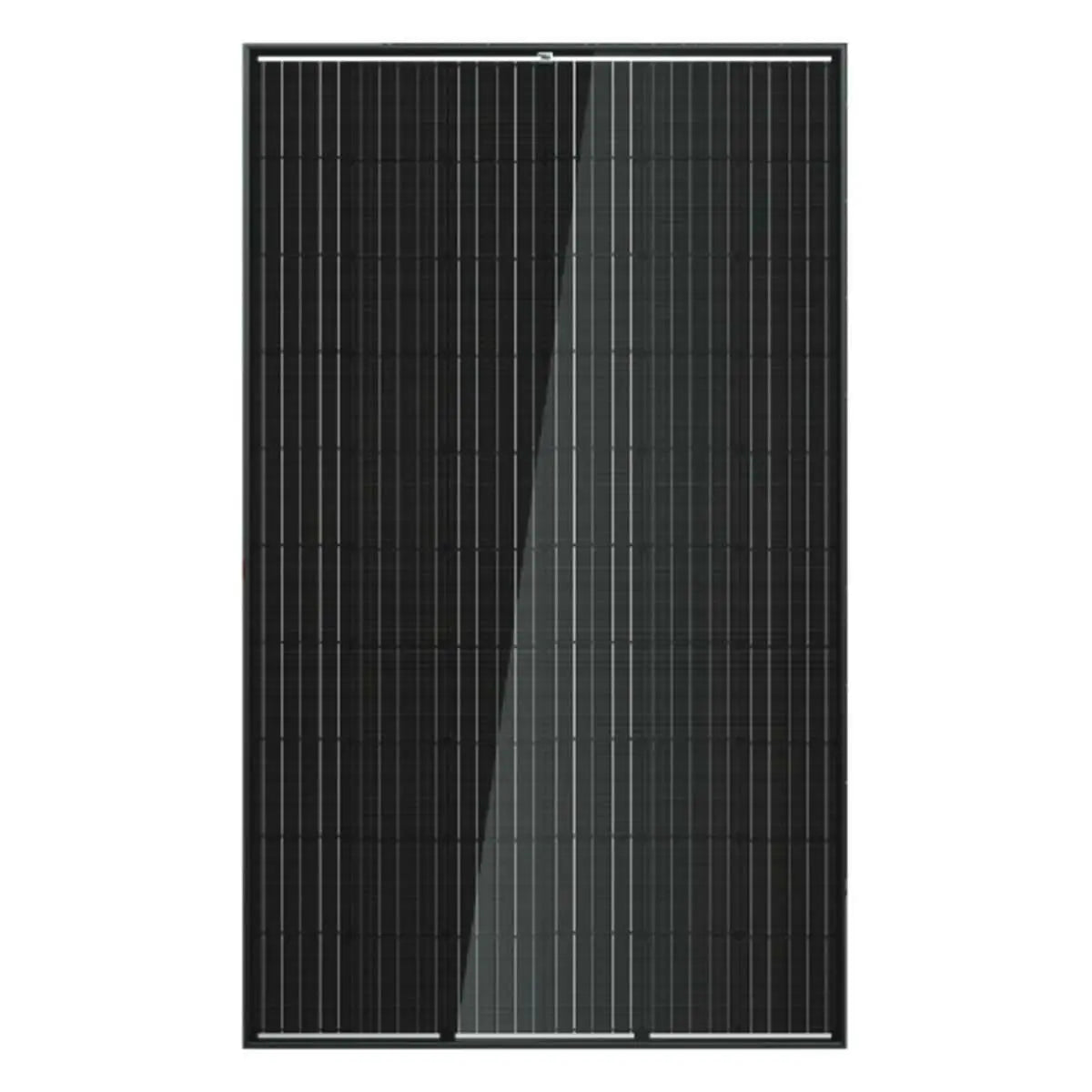

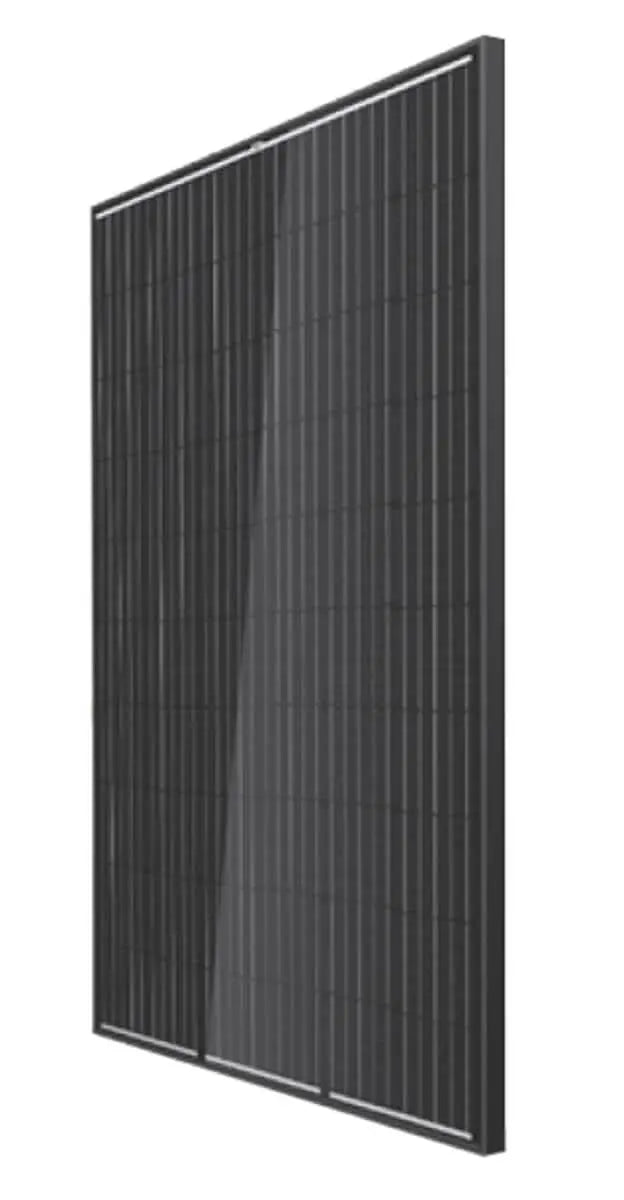

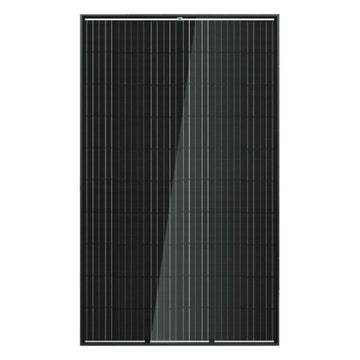

TrinaSolar TSM-300w Mono Solar Panel Pallet (Qty. 30)

High-Quality Solar Panels with 25 Year Warranty for Reliable Energy

Trina Solar HONEY panels offer home and business owners reliable solar power paired with great aesthetics and options to match your personal preferences. Available with black or silver frames set to black or white backsheets, HONEY panels pair their pleasing looks with the quality guarantee of Trina Solar and our industry leading 25-year Limited Manufacturer's Warranty.

Features

• Excellent low light performance on cloudy days, mornings and evenings - Advanced surface texturing, Back surface field, Selective emitter
• Maximize Limited Space with high efficiency - Up to 189 W/m² power density, Low thermal coefficients for greater energy production at high operating temperatures
• Aesthetics - Great aesthetics for dark roofs. Dark mono cells. Back frame and backsheet
• Highly reliable due to stringent quality control - All modules have to pass electroluminescence (EL) inspection, Over 30 in-house tests (UV, TC, HF, and many more), In-house testing goes well beyond certification requirements, PID resistant, 1000V UL/1000V IEC certified
• Certified to withstand challenging environmental conditions - 2400 Pa wind load, 5400 Pa snow load, 35 mm hail stones at 97 km/h, Ammonia resistance, Salt mist resistance, Resistance to sand and dust abrasion


Specifications

• Series/Model: Honey M Plus+
• Length: 1650 mm
• Width: 992 mm
• Height: 35 mm
• Frame Depth: 35 mm
• Cells Technology: Monocrystalline (Mono)
• Number of Half Cells: 60 (6 x 10)
• Maximum Power (Pmax): 300 W STC / 223 W NOCT
• Maximum Power Voltage (Vmp): 32.6 V STC / 30.2 V NOCT
• Maximum Power Current (Imp): 9.19 A STC / 7.38 A NOCT
• Open-Circuit Voltage (VOC): 39.8 V STC / 37 V NOCT
• Short-Circuit Current (Isc): 9.77 A STC / 7.89 A NOCT
• Maximum System Voltage: 1000 VDC (IEC/UL)
• Maximum Series Fuse Rating: 20 A
• Module Efficiency: 18.3%
• Frame Material: Anodized Aluminum Alloy with 400 mm Mounting Holes
• Front Glass: 3.2 mm (0.12 in), High Transmission, Anti-Reflection Coated, Heat Strengthened Glass
• Frame Color: Black
• Backsheet Color: Black
• Irradiance: 1000 W/m² STC / 800 W/m² NOCT
• Output Cables: Photovoltaic Technology Cable 4.0 mm², 1000 mm
• Connector Type:
  • EU Countries: 28 MC4 / UTX / TS4
  • Non-EU Countries: 28 QC4 / TS4
• Front Side Maximum Static Loading: 5400 Pa
• Rear Side Maximum Static Loading: 2400 Pa
• Operating Temperature: -40 to 185°F
• Cell Temperature: 25°C STC
• Ambient Temperature: 20°C NOCT
• Temperature Coefficients:
  • Pmax: -0.39%/°K
  • Open-Circuit Voltage (VOC): -0.29%/°K
  • Short-Circuit Current (Isc): -0.05%/°K
• Nominal Operating Cell Temperature: 44 ±2°C
• Air Mass (AM): 1.5 STC / 1.5 NOCT
• Junction Box: IP67 or IP68 Rated
• Power Output Tolerance: 0-5 W
• Standards:
  • CE, UL, TUV, PV Cycle, cULus
  • IEC61215 / IEC61730 / UL1703 / IEC61701 / IEC62716
  • ISO 9001: Quality Management System
  • ISO 14001: Environmental Management System
  • ISO 14064: Greenhouse Gases Emissions Verification
  • OHSAS 18001: Occupational Health and Safety Management System
• Warranty: 10 Years Product, 25 Years Power
• Weight: 18.6 kg
• Documents

•  Specification Sheet
• Instruction/Installation Manual
• Warranty Information

Long-Lasting Durability and Warranty Assurance

The TrinaSolar TSM-300w Mono Solar Panel Pallet (Qty. 30) is designed for durability and long-term performance. These solar panels come with a 25 year warranty, offering peace of mind through guaranteed protection against defects and gradual power degradation. This long warranty period highlights the manufacturer's confidence in product reliability, ensuring that customers receive consistent, efficient energy output year after year. The robust construction and stringent quality control make these solar panels an excellent investment for residential or commercial solar energy projects seeking long-term sustainability.

High Efficiency and Superior Performance

Each 300-watt monocrystalline solar panel in this pallet boasts high efficiency with advanced photovoltaic technology. The monocrystalline cells are designed to maximize sunlight absorption even in low-light conditions, improving overall energy production. This makes the TrinaSolar pallet ideal for installations where space efficiency is critical. By combining cutting-edge technology with strong warranties, these solar panels not only reduce electricity bills but also contribute effectively to lowering your carbon footprint through clean, renewable energy generation.

Bulk Purchase Benefits and Versatility

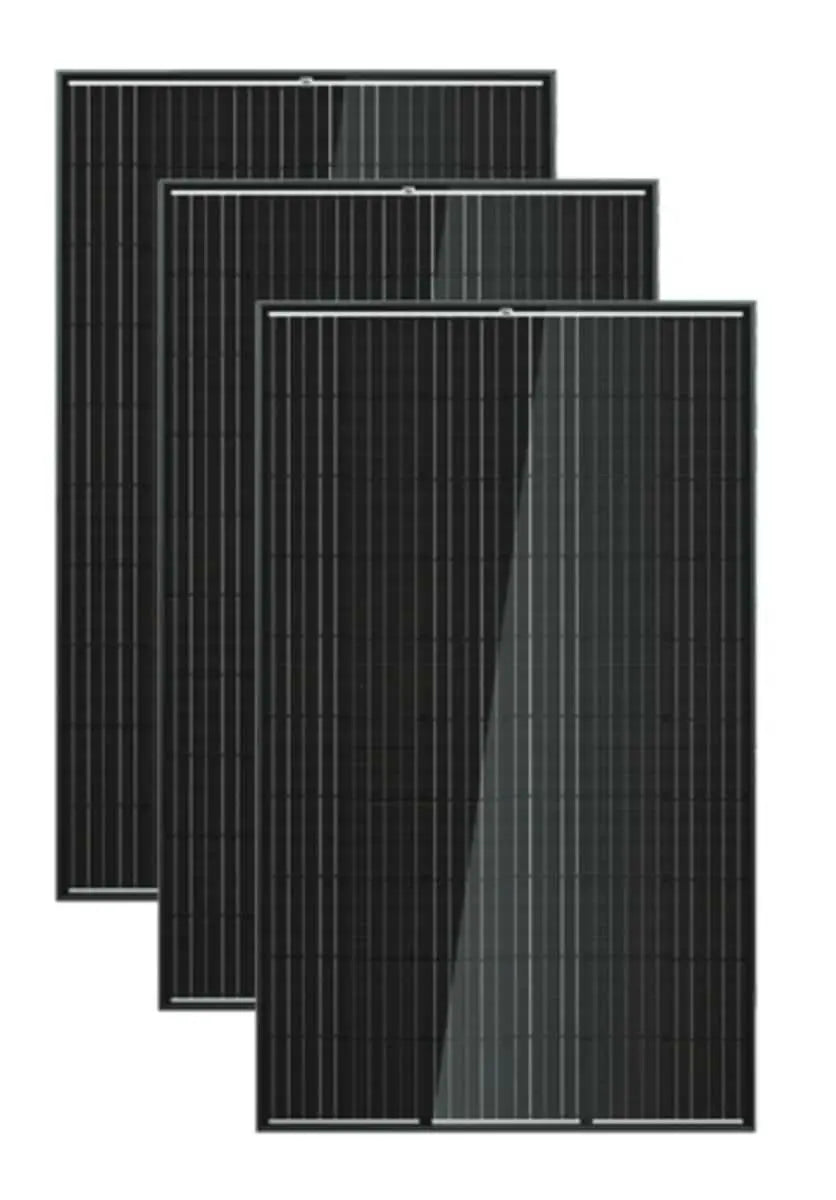

The pallet includes 30 units of TrinaSolar TSM-300w panels, perfect for large-scale solar installations such as commercial rooftops, solar farms, or community energy projects. Buying in bulk ensures cost-effectiveness and easy logistics, making it an advantageous option for contractors and businesses focused on efficient project execution. With the reliable 25 year warranty, these panels provide a trustworthy energy solution that meets diverse application needs, supporting sustainable growth and energy independence over many years.
