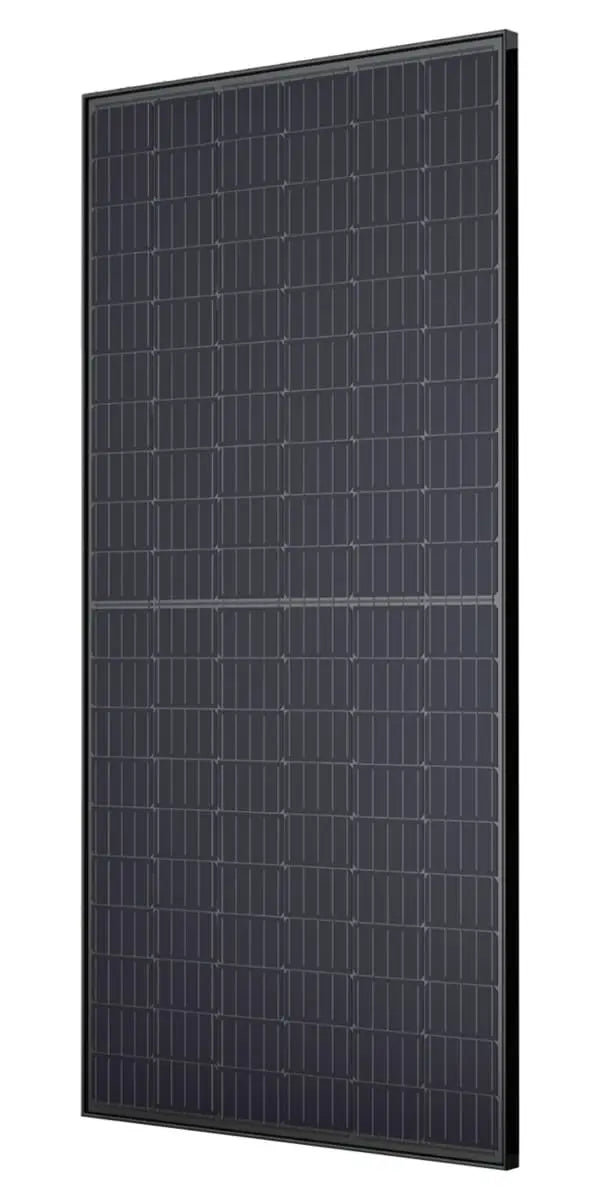

Trina Solar 310 Watt AllMax Black/Black 120 Half-Cell | TSM-310-DD05H.05(II)

Why Choose the Trina Solar 310 Watt for Your Solar Energy Needs

Trina Solar ALLMAX panels offer home and business owners reliable solar power paired with great aesthetics and options to match your personal preferences. Available with black or silver frames set to black or white backsheets, ALLMAX panels pair their pleasing looks with the quality guarantee of Trina Solar and our industry leading 25-year Limited Manufacturer's Warranty.

Features

• Increased Value - Reduce BOS cost with high power bin, Low thermal coefficients for greater energy production at higher temperature
• Half-cell design brings higher efficiency - New cell string layout and split J-box location to reduce the energy loss caused by inter-row shading, Integrated LRF(Light Redirecting Film) to enhance power, specially for ground-mount applications (optional), Lower cell connection power losses due to half-cell layout (120 monocrystalline)
• Highly reliable due to stringent quality control - Over 30 in-house tests (UV, TC, HF etc), PID resistant and free of snail trails, Increased module robustness to minimize micro-cracks, Internal test requirement of Trina more stringent than certification authority
• Certified to withstand the most challenging environmental conditions - 2400Pa negative load, 5400Pa positive load
• Aesthetics - Great aesthetics for dark roofs. Dark mono cells. Back frame and backsheet
• High Efficiency - Excellent low light performance on cloudy days, mornings and evenings: advanced surface texturing, back surface field and selective emitter. Maximize limited space with high efficiency: up to 189w/m² power density, low thermal coefficients for greater energy production at high operating temperatures
• Maximize your savings potential - Available in both mono- and multicrystalline options, the ALLMAX series is perfect for small rooftop systems. ALLMAX panels can generate high amounts of energy even when space is limited. As one of the industry's most trusted panels, the ALLMAX module is a popular option for residential and commercial customers because of its reliability, pleasing aesthetics and compatibility with all major balance of system components and module electronics
• Highest standard of quality - As a vertically integrated company, Trina Solar ensures the highest standards of quality for our PV systems across the entire supply chain, to mitigate risk and increase your return on investment. Ranked as one of the world's most bankable solar manufacturers by Bloomberg New Energy Finance, Trina Solar has the staying power and dependability to stand behind our products for decades. As the first PV company to be awarded UL's Client Test Data Program Certification, we are setting industry standards for safety test and quality standards

Specifications

• Series/Model: AllMax M Plus+
• Length: 1675 mm
• Width: 992 mm
• Height: 35 mm
• Frame Depth: 35 mm
• Cells Technology: Monocrystalline Framed Half Cell
• Cell Dimensions: 6.17 in x 3.09 in
• Number of Half Cells: 120 (6 x 20)
• Maximum Power (Pmax): 310 W STC / 231 W NOCT / 288.2 W PTC
• Maximum Power Voltage (Vmp): 32.9 V STC / 30.8 V NOCT
• Maximum Power Current (Imp): 9.43 A STC / 7.51 A NOCT
• Open-Circuit Voltage (VOC): 40.2 V STC / 37.5 V NOCT
• Short-Circuit Current (Isc): 9.83 A STC / 7.87 A NOCT
• Maximum System Voltage: 1000 VDC (IEC/UL)
• Maximum Series Fuse Rating: 20 A
• Module Efficiency: 18.7%
• Frame Material: 35 mm (1.38 in) Anodized Aluminum Alloy
• Front Glass: 3.2 mm (0.13 in)
• Frame Color: Black
• Backsheet Color: Black
• Irradiance: 1000W/m² STC / 800W/m² NOCT
• Output Cables: Photovoltaic Technology Cable 4.0mm² (0.006 sq-in),
  • Landscape: N 1200 mm / P 1200 mm (47.24 / 47.24 in)
  • Portrait: N 140 mm / P 285 mm (5.51 / 11.22 in)
• Connector Type: MC4
• Front Side Maximum Static Loading: 5400 Pa
• Rear Side Maximum Static Loading: 2400 Pa
• Operating Temperature: -40 to 185°F
• Cell Temperature: 25°C STC
• Ambient Temperature: 20°C NOCT
• Temperature Coefficients of Pmax: -0.37%/°C
• Temperature Coefficients of Open-Circuit Voltage (VOC): -0.29%/°C
• Temperature Coefficients of Isc: -0.05%/°C
• Nominal Operating Cell Temperature: 44 ± 2°C
• Air Mass (AM): 1.5 STC / 1.5 NOCT
• Junction Box: IP68 Rated
• Power Output Tolerance: 0-5 W
• Encapsulant: Ethylene Vinyl Acetate (EVA)
• Standards: CE, UL, TUV, PV Cycle, cULus, IEC61215 / IEC61730 / UL1703 / IEC61701 / IEC62716, ISO 9001 (Quality Management System), ISO 14001 (Environmental Management System), ISO14064 (Greenhouse Gases Emissions Verification), OHSAS 18001 (Occupation Health and Safety Management System)
• Warranty: 10 Years Product, 25 Years Power
• Weight: 18.8 kg

Documents

• Specification Sheet

Superior Efficiency with Half-Cell Technology

The Trina Solar 310 Watt module utilizes advanced 120 half-cell technology to deliver superior efficiency and power output. By splitting cells in half, it reduces power loss and improves shade tolerance, resulting in better overall performance. This innovative design maximizes energy yield compared to traditional full-cell panels, making it a smart choice for residential and commercial solar installations. The black-on-black aesthetics blend seamlessly with modern rooftops, adding both style and function to your solar setup.

Durable Build for Long-Term Reliability

Constructed with premium materials, the Trina Solar 310 Watt AllMax panel is built to withstand harsh environmental conditions such as heavy snow, strong winds, and hail. Its robust frame and tempered glass ensure long-lasting durability and protection against physical damage. The module’s excellent thermal performance also ensures stable operation under high temperatures, enhancing its lifespan and consistent energy production, offering peace of mind for years to come.

Certified Quality and Environmental Benefits

This module meets rigorous international quality standards, including IEC certification, guaranteeing safe and reliable solar energy production. Its high conversion efficiency helps reduce your carbon footprint by maximizing renewable energy generation from a smaller surface area. Installing the Trina Solar 310 Watt panel helps promote sustainable living while lowering electric bills. It’s an ideal choice for consumers seeking an eco-friendly, cost-effective solar solution with proven performance.
