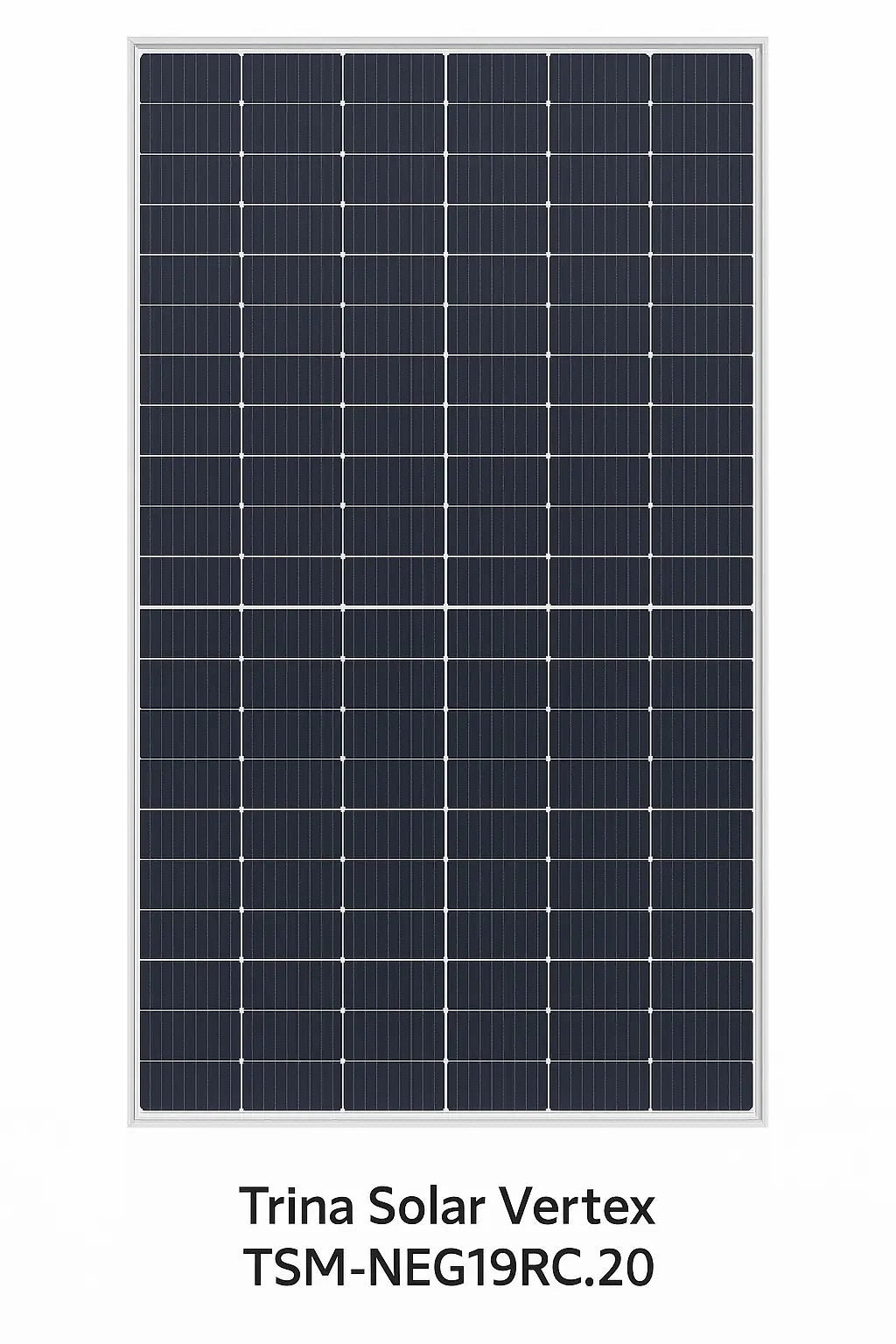

Trina Solar Vertex N-Type 590–620W Bifacial Dual Glass Module

Boost energy yield and system reliability with Trina Solar’s Vertex N-Type bifacial dual glass solar module, delivering up to 620W power output and 23.0% efficiency. Designed with cutting-edge i-TOPCon N-type cell technology, this module ensures higher performance, lower degradation, and superior durability for utility-scale and commercial projects.

Key Features:

• Ultra-High Power – Power range from 590W to 620W with positive power tolerance (0 ~ +5W).

• Higher Energy Yield – Up to 30% additional power gain from the bifacial backside, depending on installation surface (albedo).

• Long-Term Reliability – Industry-leading 30-year power warranty with only 1% first-year degradation and 0.4% annually thereafter.

• Cost Savings – Lower LCOE and BOS costs, optimized shipping with higher container space utilization, and reduced payback time.

• Durable Design – Certified resistance against harsh environments including salt mist, ammonia, sand, humidity, and high temperatures.

• Excellent Temperature Performance – Low temperature coefficient of -0.29%/°C ensures stable output in hot climates.

• Advanced Technology – SMBB (Super Multi-Busbar) for better light trapping, improved current collection, and minimized micro-cracks through non-destructive cutting.

Specifications:

• Module Efficiency: Up to 23.0%

• Dimensions: 2382 × 1134 × 30 mm

• Weight: 33.7 kg

• Front & Back Glass: 2.0 mm heat-strengthened dual glass

• Frame: 30 mm anodized aluminum alloy

• Maximum System Voltage: 1500V DC

• Connector: MC4 EVO2 / TS4 PLUS

• Warranty: 12-year product workmanship + 30-year performance

Ideal for utility-scale, commercial, and large rooftop projects seeking maximum yield and lowest LCOE.
Built for sustainability with recyclable packaging and EU WEEE compliance.

Document: Specification Sheet
