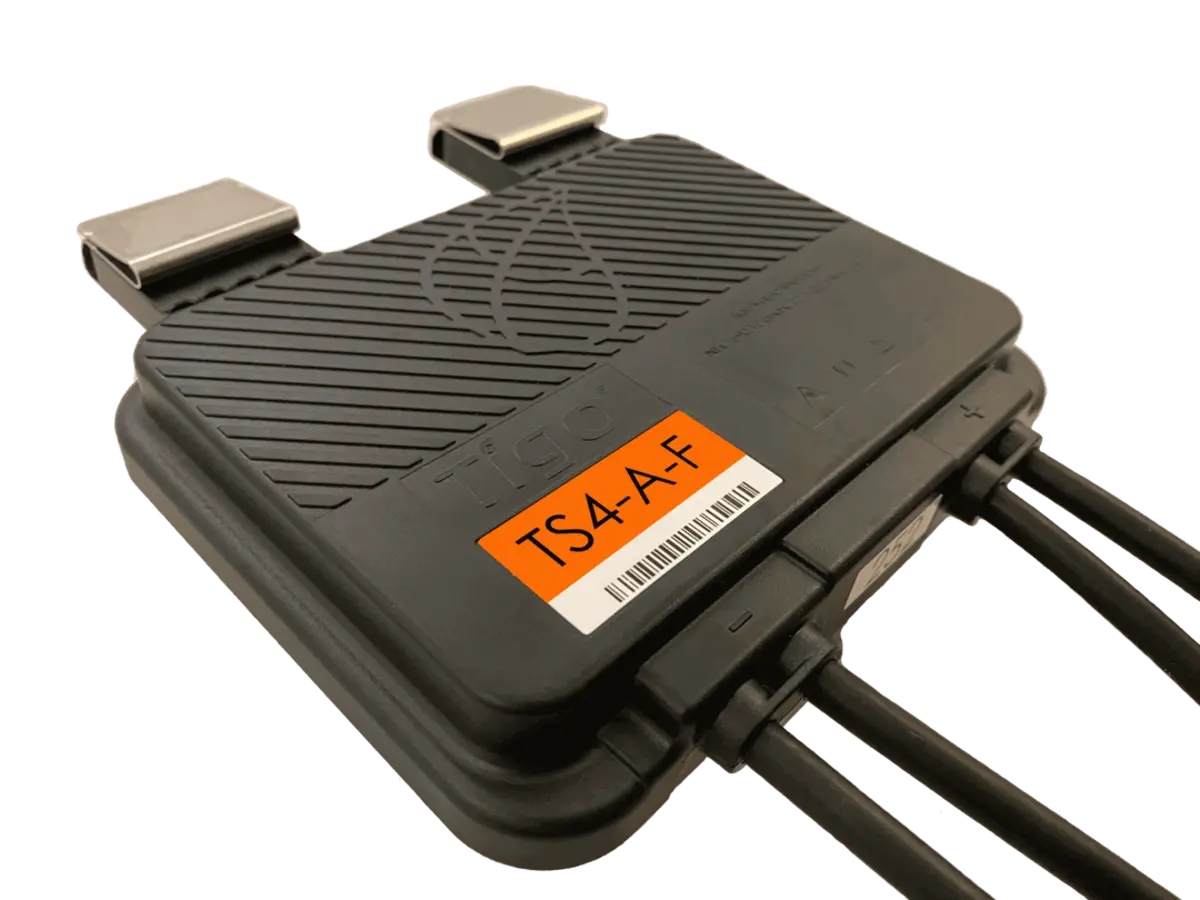

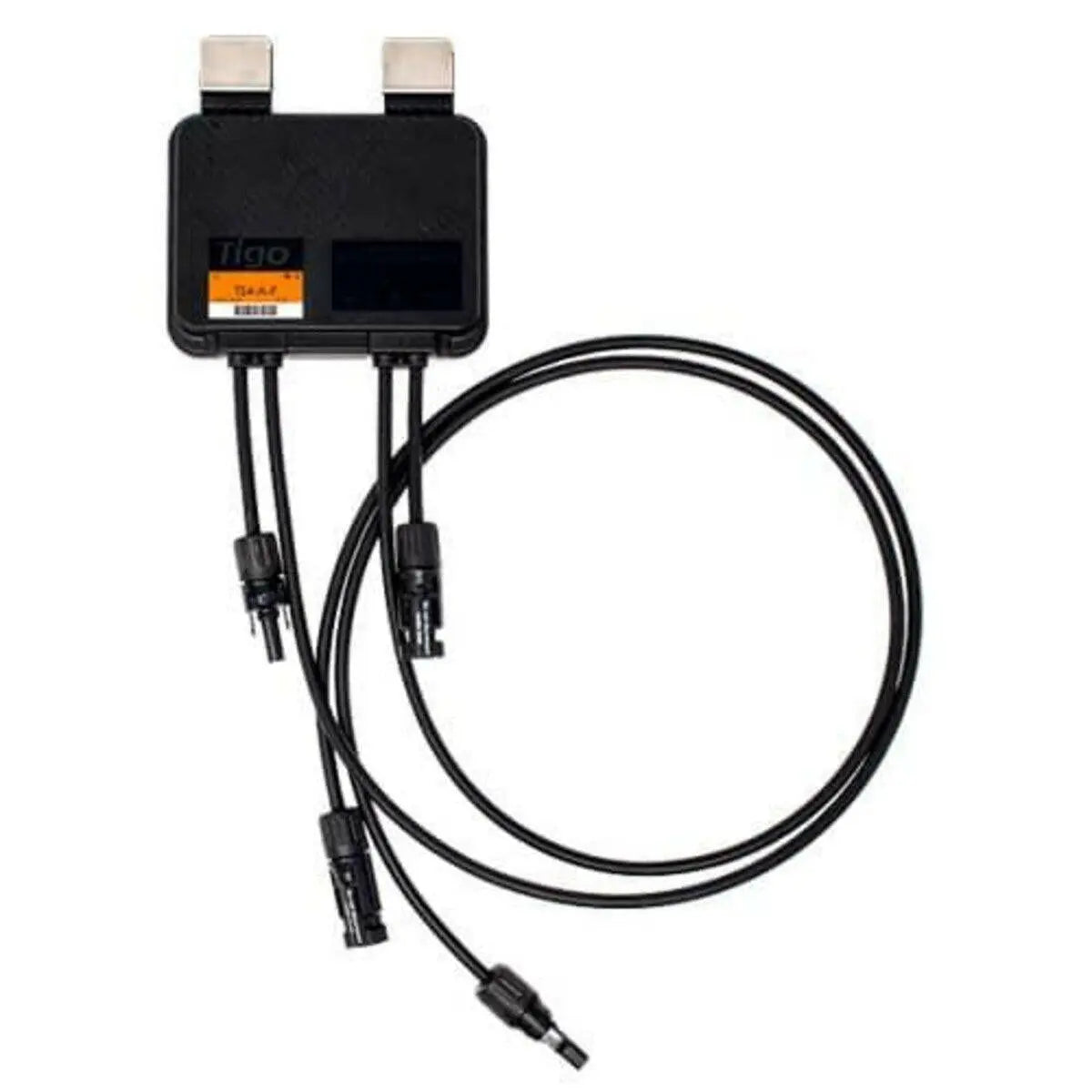

Tigo Energy, TS4-A-F, Rapid Shutdown Receiver

The TS4-A-F enables cost effective rapid shutdown functionality in a 1 module to 1 TS4 configuration. The TS4-A-F is both IEC and UL certified for global acceptance. The TS4-A-F is UL PV Rapid Shutdown System (PVRSS) certified with hundreds of inverters to comply with NEC 2014, 2017, and 2020 rapid shutdown requirements. Many of the inverters have integrated the RSS transmitter, which communicates with the TS4-A-F over PLC, enabling plug and play installations.

Feature Bullets

• MC4 (standard) connectors
• Snaps to module frame for easy mounting
• Does not require ground wire
• PLC communication

Specifications:

• Type: Rapid
• Maximum Input Voltage: 90/80 V
• Operating Voltage: 16-90/16-80 V
• Maximum Input Current ISC: 25 A
• Maximum Input Current IMP: 15/20 A
• Maximum Wattage: 700 W
• Module Conductor Length: 0.12, 0.62 m
• String Conductor Length: 1.2 m
• Connection: MC4, EV02
• Operating Temperature: -40 to 85°C
• Storage Temperature: -40 to 85°C
• Recommended Fuse Rating: 20/30 A
• Outdoor Rating: IP68, NEMA 3R
• Maximum Altitude: 2000/3000 m
• Efficiency: 99.6/99.9%
• Communication: PLC
• Rapid Shutdown Time Limit: 30 secs or less
• Conductor AWG Range: 10-12 AWG
• PVRSE Controlled Conductors: ≤30 VDC, ≤240 VA, ≤8A
• Standards: CE, ETL Listed, IEC
• Warranty: 25 Years
