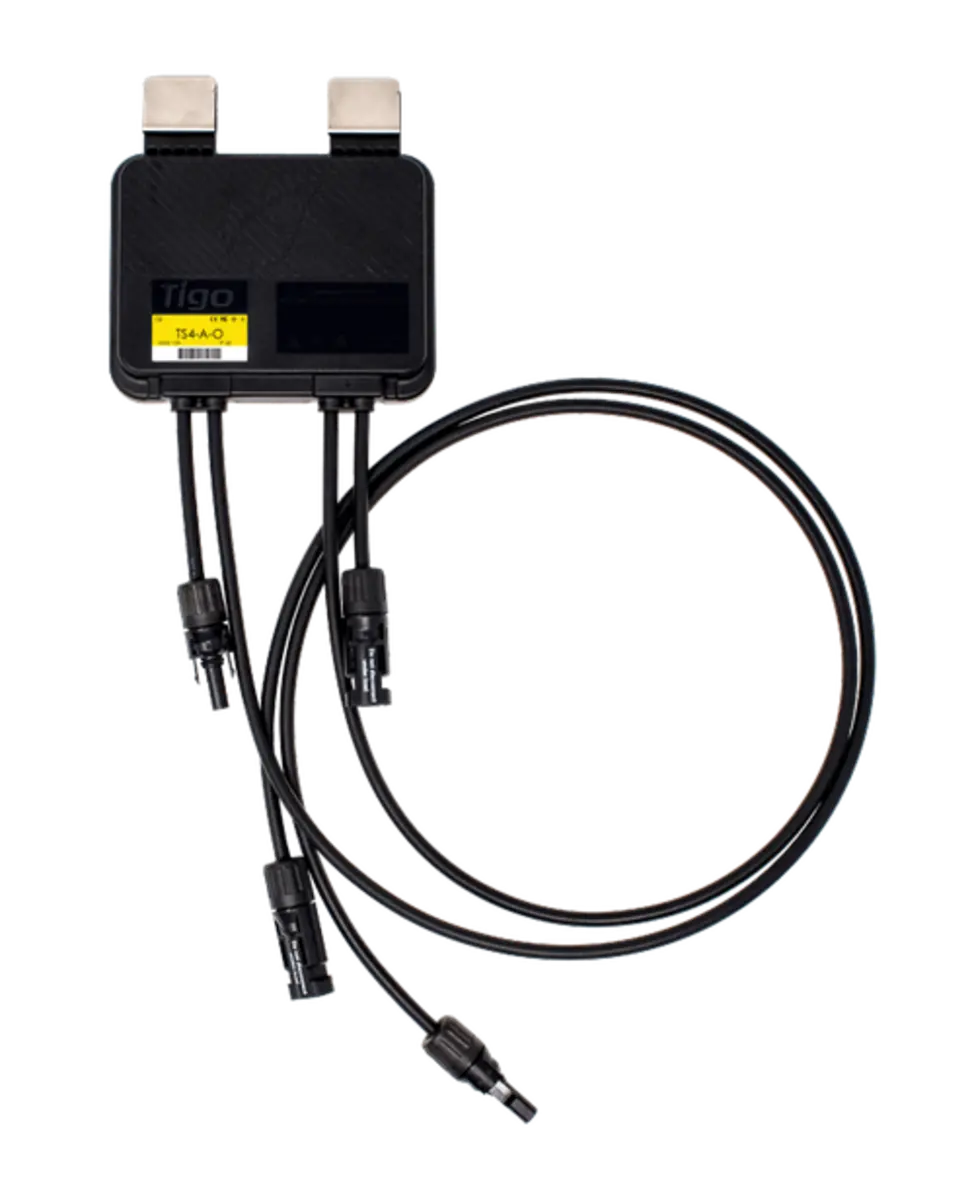

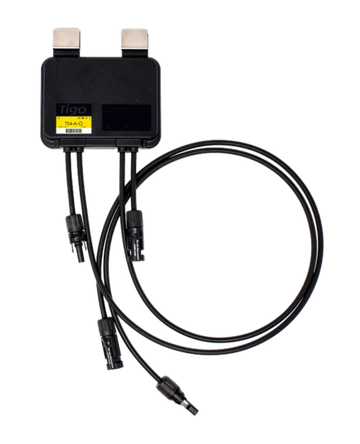

Tigo 700 W IP68 Rapid Shutdown Optimizer

Optimization is a Flex MLPE function available as an integrated modular junction box base (TS4-O) or as an add-on unit (TS4-A-O). Design using unequal string lengths, mixed orientations, or areas of mismatch. Install in shaded areas with a reduced setback ratio. In addition to optimization, the TS4-A-O enables module level monitoring, and rapid shutdown in compliance with NEC 2014, 2017, 2020.

Features

• Shade and mismatch tolerance
• Module-level monitoring, shutdown, optimization
• Complies with 2017 and 2020 NEC rapid shutdown requirements.
• Easy Installation
• Smart Commissioning with Android or iOS mobile device
• Maximised roof usage
• Greater design flexibility
• Enhanced energy yield


Specifications

• Power Rating: 700 W
• Enclosure Rating/IP Rating: IP68
• Voltage Rating: 16-80 V
• Cable Length: 1.2 m
• Connection Type: MC4
• Standards: UL Listed
• Dimensions: 138.4 mm x 139.7 mm x 22.9 mm


Documents

• Datasheet
