Tie Down Engineering 60005 Telescopic Support Brace - TranzSporter Hoist Accessory

Tie Down Engineering 60005 Telescopic Support Brace

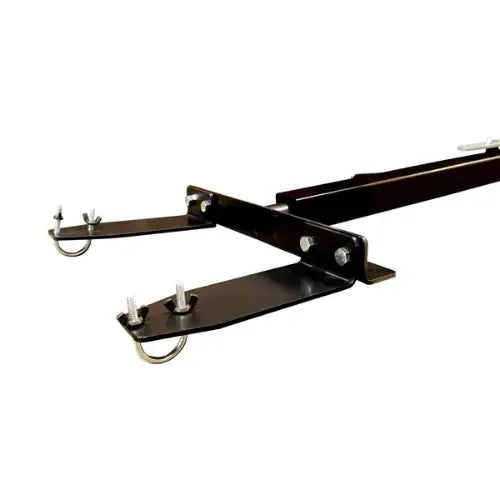

The Tie Down 60005 Telescopic Support Brace is a heavy-duty stabilizing accessory for TranzPorter and TranzVolt ladder hoist systems that bolts directly onto the track. It is engineered to support material lifts in the 250 to 400 lb range and stabilize the hoist when track extensions are used. This brace helps maintain safe and rigid alignment of extended track segments up to 44 ft in total height.

Key Features

• Adjustable telescopic support brace for hoist track stabilization
• Supports material loads from 250 to 400 lb

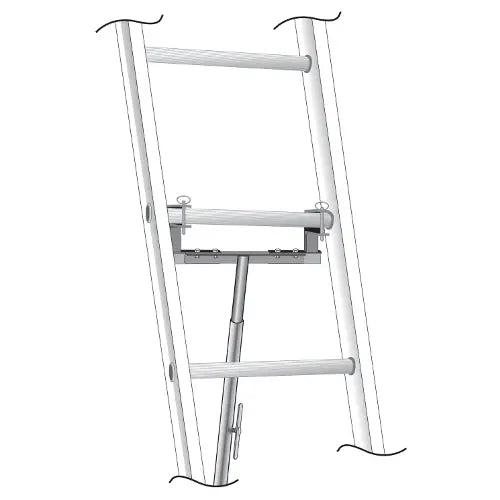

• Bolts directly onto hoist track for secure integration
• Enhances stability especially when using 4 ft or 8 ft track extensions
• Enables safe hoist operation up to 44 ft stacking height
• Compatible with TP250 & TP400 models over 28 ft

Specifications

• SKU: 60005
• MPN: TDE-60005
• Function: Support / stabilize hoist track
• Load Capacity: 250 lb to 400 lb (material lifts)
• Collapsed Length: 153 in
• Extended Length: 23 ft
• Width: 15–16 in
• Product Weight: 60 lbs
• Material/Construction: Heavy steel frame (USA-made parts)
• Compatibility: TranzPorter / TranzSporter / TranzVolt hoist track systems (TP250 & TP400) with extensions
• Maximum Hoist Height Supported: 44 ft when used with track extensions

Warranty

1 Year Limited Warranty from Tie Down Engineering.

Documents

• Installation Instructions (PDF)
• Product Sell Sheet (PDF)
