Tesla Universal Wall Connector Level 2 Hardwired EV Charger – Up to 48A – 24' Cable – White

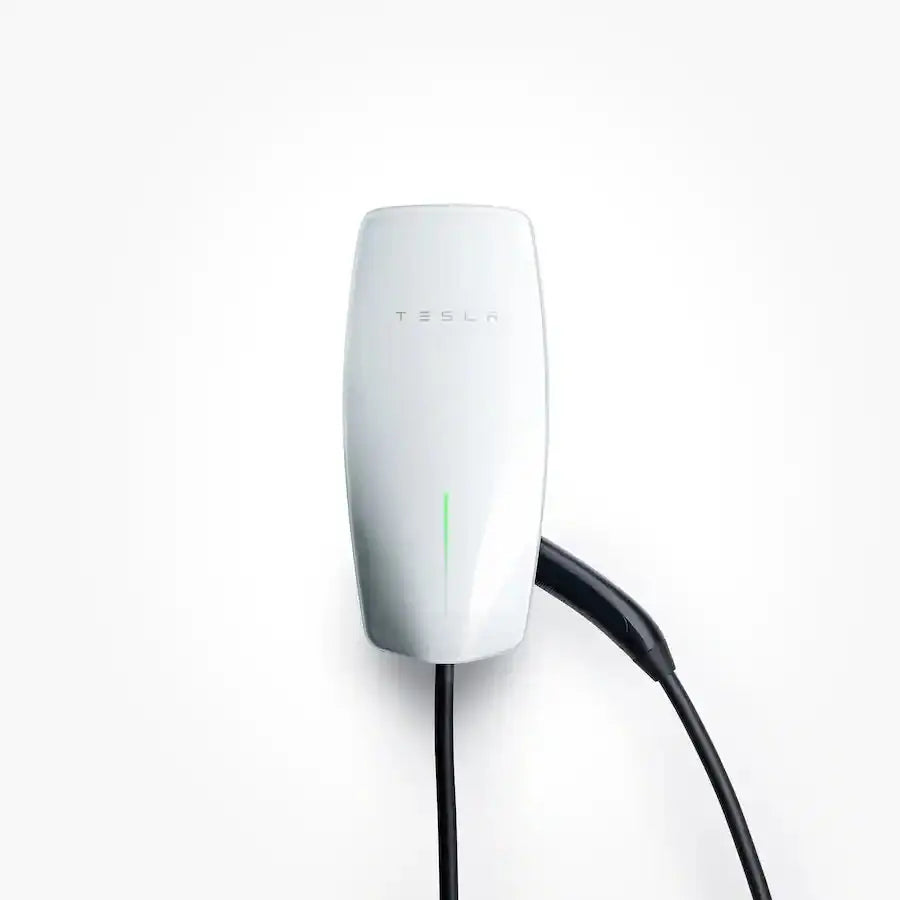

Tesla Universal Wall Connector – Level 2 EV Charger

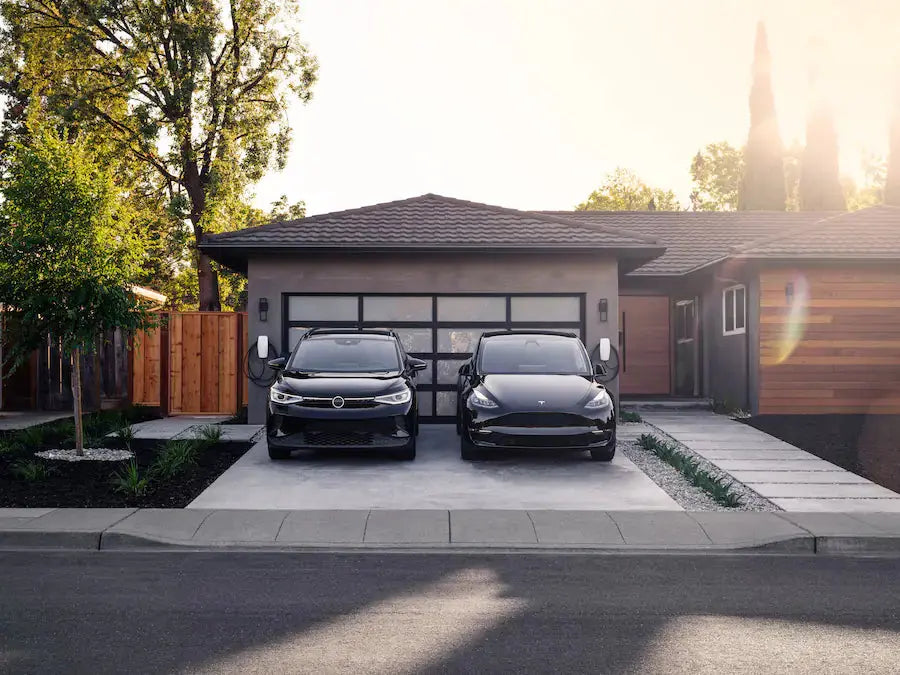

The Tesla Universal Wall Connector is an efficient and convenient charging solution for Tesla and non-Tesla electric vehicles alike. Ideal for homes, apartments, hospitality properties, and workplaces. With the same speed, power, and functionality as the standard Wall Connector, the Universal Wall Connector is compatible with all major North American EVs via both NACS and J1772 connectors.
Key Features

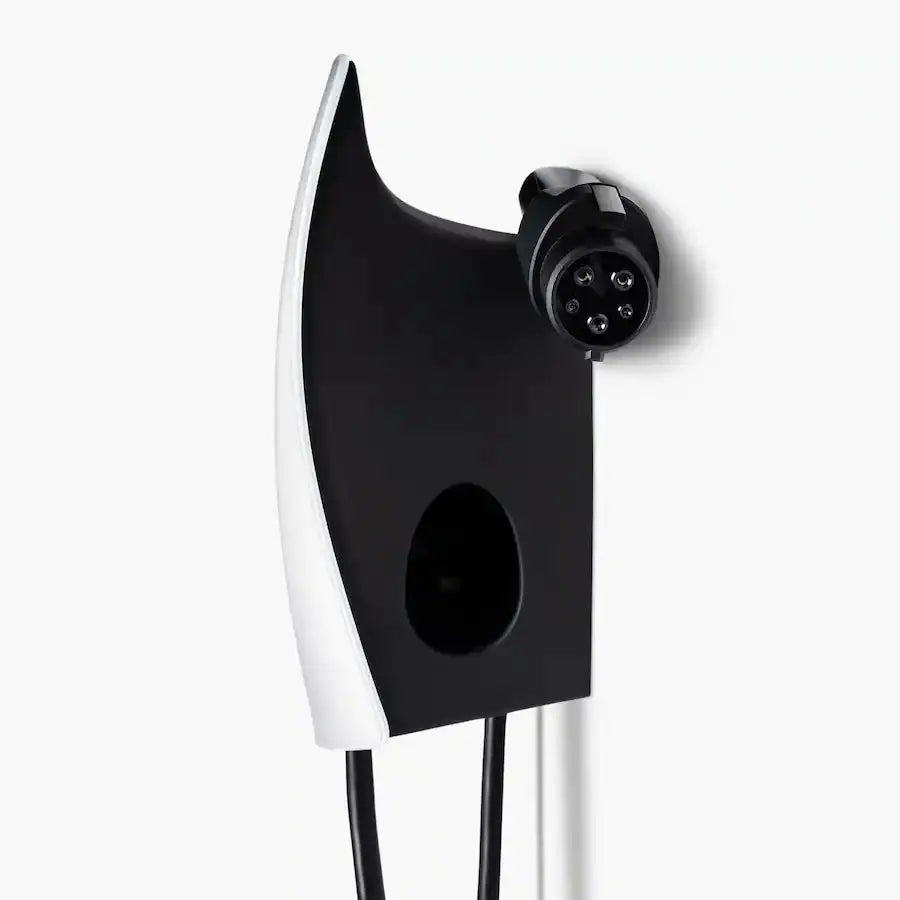

- Universal Compatibility: Seamlessly transitions between NACS and J1772 connectors, accommodating all major North American EVs including Tesla vehicles. Integrated J1772 adapter included.
- Fast Charging: Up to 44 miles of range added per hour at 11.5 kW / 48 amp output.

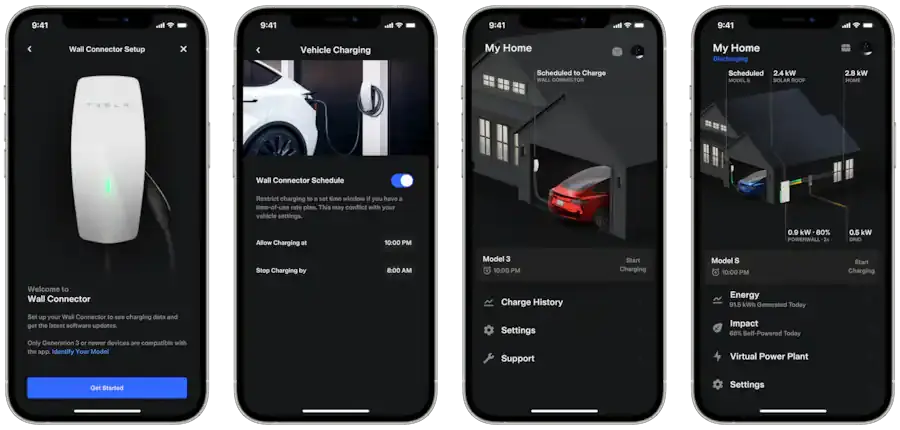

- Tesla App Integration: Monitor and manage your charging schedule and usage from the Tesla app. Over-the-air firmware updates for continual product improvements.
- Auto-Sensing Handle: Automatically opens a Tesla charge port for seamless connection.
- Powerwall Compatible: Pair with Powerwall to use stored energy to charge your EV during outages. Powershare-enabled Tesla vehicles can also provide backup power to your home.
- Indoor/Outdoor Rated: Type 3R enclosure rating — suitable for indoor or outdoor installation.
- Daisy Chain Support: Supports daisy chaining of multiple Wall Connectors on a single branch circuit.
- Wi-Fi Connectivity: 2.4 GHz Wi-Fi (802.11b/g/n) for remote monitoring and firmware updates.
Technical Specifications
| Specification | Details |
|---|---|
| Part Number | 1734412-02-D / 1734411-02-E |
| SKU (Best Buy) | 6557478 |
| Charging Level | Level 2 |
| Nominal Voltage | 200–240V AC Single-Phase |
| Maximum Current Output | 48A (adjustable by installer) |
| Current Output Range | 12–48 Amps |
| Power Output | 11.5 kW |
| Frequency | 50/60 Hz |

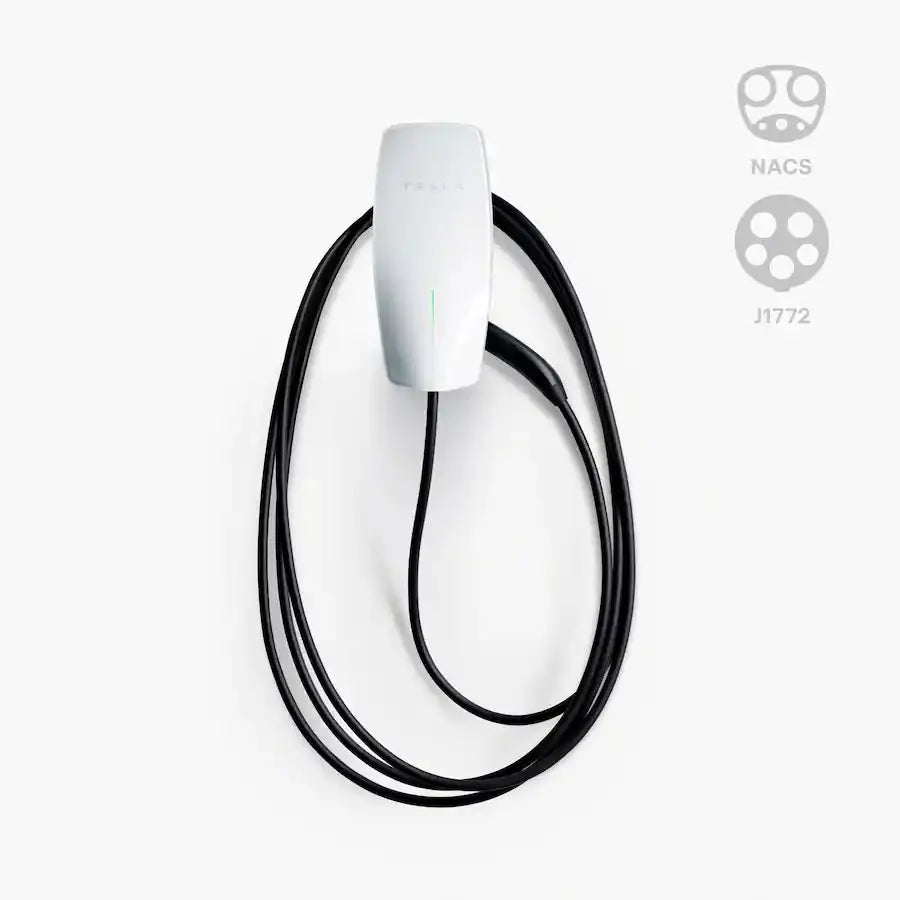

| Connectors | NACS + J1772 (adapter included) |
| Cable Length | 24 ft (7.3 m) |
| Input Wiring Type | Hardwired |
| Circuit Breaker Required | 15A, 20A, 30A, 40A, 50A, or 60A |
| Wi-Fi | 2.4 GHz, 802.11b/g/n |
| Enclosure Rating | Type 3R (Indoor/Outdoor) |
| Operating Temperature | -22°F to 122°F (-30°C to 50°C) |
| Storage Temperature | -40°F to 185°F (-40°C to 85°C) |
| Dimensions (Unit) | 13.6" H x 6.1" W x 5.9" D |
| Dimensions (Wire Box) | 9.8" H x 4.7" W x 3.5" D |
| Weight (including wirebox) | 15 lbs (6.8 kg) |
| Agency Approvals | cULus (E351001), ETL/cETL, Energy Star Certified |
| Standards | UL 2594, UL 2231 |
| Color | White |
Charging Speed by Circuit Breaker
| Circuit Breaker | Max Output | Power (kW) | Model S | Model 3/Y | Model X | Cybertruck |
|---|---|---|---|---|---|---|
| 60A | 48A | 11.5 kW | 41 mph | 44 mph | 35 mph | 30 mph |
| 50A | 40A | 9.6 kW | 34 mph | 37 mph | 29 mph | 25 mph |
| 40A | 32A | 7.7 kW | 27 mph | 30 mph | 23 mph | 20 mph |
| 30A | 24A | 5.7 kW | 21 mph | 22 mph | 17 mph | 15 mph |
Warranty
Residential Use: 48 months (4 years) from date of invoice.
Commercial Use: 12 months from date of invoice.
Covers manufacturing defects under normal use. Does not cover damage from misuse, improper installation, or external factors. Must be installed by a qualified electrician.
Installation
Must be installed by a qualified electrician. Hardwired installation required. Compatible with 15A–60A circuit breakers. Supports conduit sizing of ¾" (default) or 1" (optional). Terminal blocks accept 12–4 AWG (4–25 mm²) copper wire.
Documentation
📄 Download Official Tesla Universal Wall Connector Installation Manual (PDF)
