Tamarack Solar 35 in Mid Clamp

The popular PGRM Mounts are designed for up to 6 modules per mount in portrait orientation. Available tilt angle ranges from 0 to 90 deg and allows easy seasonal adjustability. Use for modules with a minimum length of 35.5-inches and a maximum sq. footage of 24.78. Clamp attachment uses the lip on the back of module frame and accommodates frame thickness between 1.18 in and 2 in. Rated for windspeeds up to 115 MPH. Install up to 92 square feet of modules on a single 4 in Schedule 40 pole and up to 130 square feet of modules on two 4 in schedule 40 poles.

Features

• Mount from 1-6 modules per mount in portrait orientation
• Easy to Install - Simple, one-person installation and tilt angle adjustment
• Accommodates many sizes of modules - for modules up to 24.78 sq-ft and with a minimum length of 35.5 in
• Heavy duty construction - Rated for windspeeds up to 110 mph
• Available Immediately - In stock for immediate shipment using ground carriers
• Adjustable tilt angle - tilt angle can be set from 0 to 90 deg and is easily adjusted seasonally


Specifications

• Suitable For Use With: UNI-PGRM Solar Panel Mount
• Size: 35 in Length

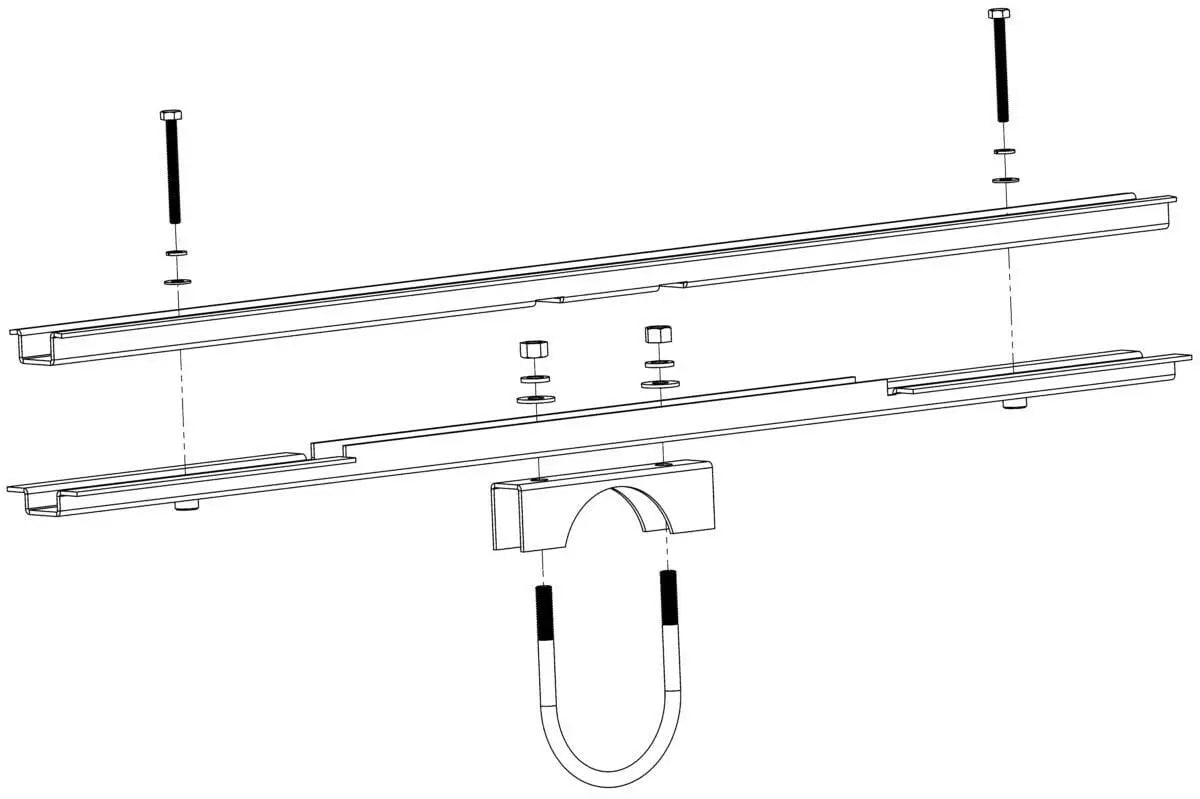

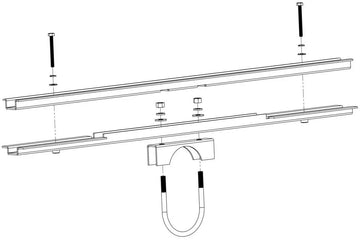

• Includes:
  • (1) U-Bolt Clamp
  • (1) Mid Clamp Top
  • (1) Mid Clamp Bottom
  • (2) Hex Bolts
  • (2) Flat Washers
  • (2) Lock Washers
  • (1) Galvanized Steel U-Bolt
  • (2) Galvanized Flat Washers
  • (2) Galvanized Lock Washers
  • (2) Galvanized Hex Nuts
  • (2) Pem CLS-0420-2
• Standards: ETL, IEC, UL Listed
• Weight: 5 lb


Documents

• Specification Sheet
•  Instruction/Installation Manual
