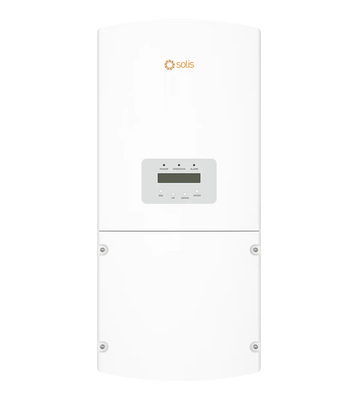

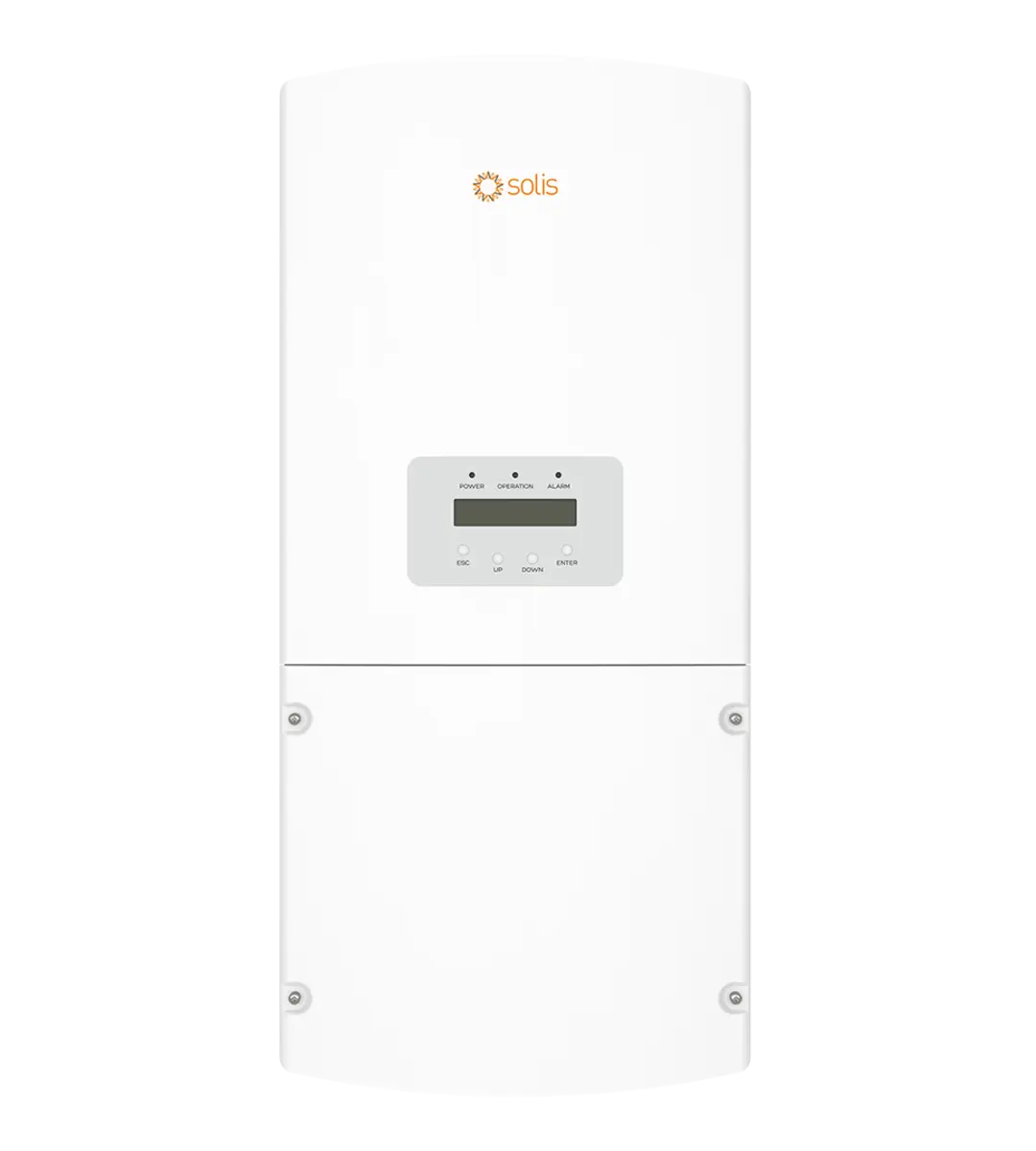

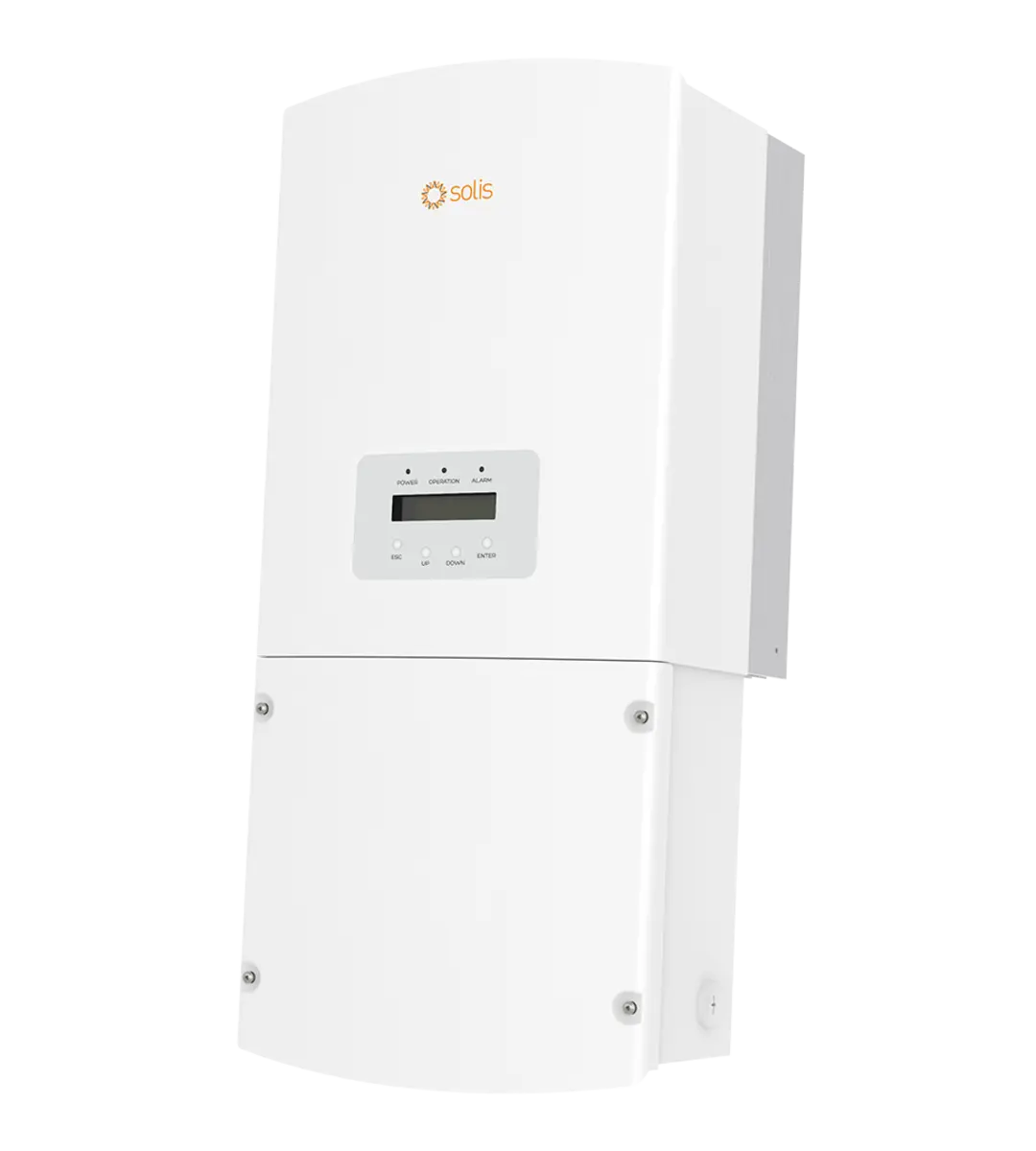

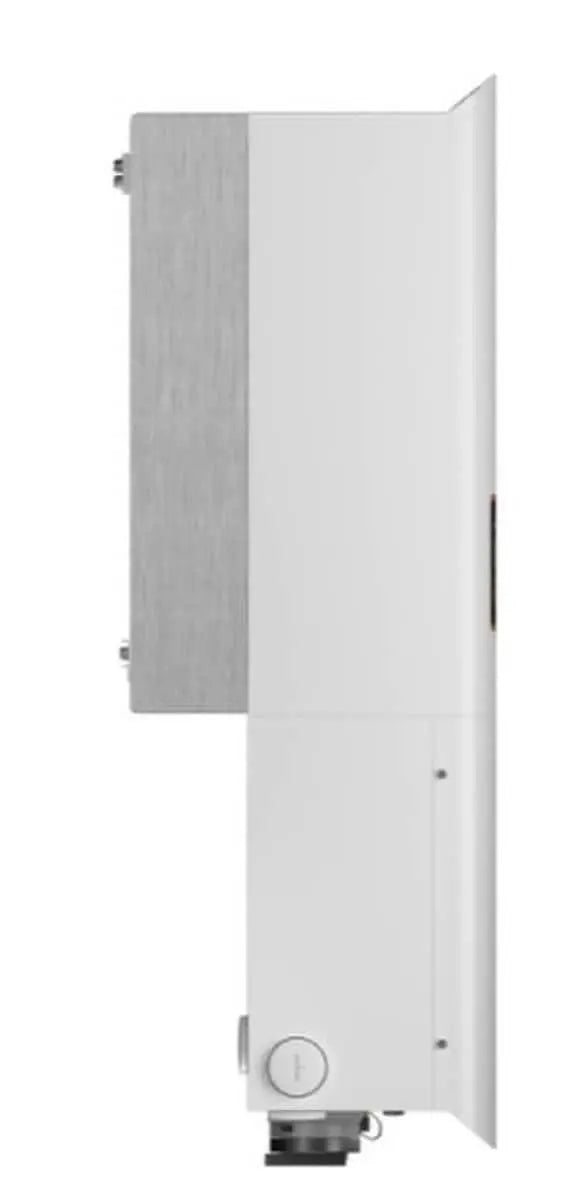

Solis 7.6 kW US version single phase string inverters have 3 MPPTs with 30K Hz switching frequency and ultra-high efficiency which are perfect for residential rooftop systems with different roof orientations. Multiple communication methods greatly ensure the freedom of monitoring. Built-in MLRSD transmitter guarantees the safety of relevant personnel and regulation compliance. The built-in class 0.5 revenue grade meter can guarantee an accurate data recording without losing benefits from the sun.

Features

• Integrated Arc Fault Circuit Interrupt (AFCI)
• 97.8% peak efficiency (97.5% CEC efficiency)
• 10 Year Standard Warranty with extension options
• CA Rule 21 Phase I-III compliant and UL 1741 (SA) certified
• Optional Built-in Revenue Grade Meter, ANSI C12.20-2010 compliance
• Sunspec communication protocol with optional Cellular and Wi-Fi interface
• Built-in Sunspec Certified Module Level Rapid Shutdown Transmitter


Specifications

• Type: US Plus Version
• Dimensions: 13.1 in x 28.8 in x 9.8 in
• Maximum Input Voltage: 600 V - (Input (DC))
• Rated Voltage: 330 V - (Input (DC))
• Start-Up Voltage: 120 V - (Input (DC))
• MPPT Voltage Range: 100-500 V - (Input (DC))
• Maximum Input Current: 14 A/14 A - (Input (DC))
• Maximum Short-Circuit Current (ISC): 22/22 A - (Input (DC))
• MPPT Number/Maximum Input Strings Number: 3/3 - (Input (DC))
• Rated Output Power: 6 kW - (Output (DC))
• Maximum Apparent Output Power: 6 kVA - (Output (DC))
• Maximum Output Power: 7.6 kW - (Output (DC))
• Rated Grid Voltage: 1 Phase/PE, 240 V/208 V - (Output (DC))
• Rated Grid Frequency: 60 Hz - (Output (DC))
• Maximum Output Current for 240 V Grid: 25 A - (Output (DC))
• Maximum Output Current for 208 V Grid: 28.8 A - (Output (DC))
• Power Factor: >0.99 (0.8 Leading - 0.8 Lagging) - (Output (DC))
• Total Harmonic Distortion (THDi): <3% - (Output (DC))
• Maximum Efficiency: 97.8%
• CEC Efficiency: 97.5%
• DC Reverse Polarity Protection: Yes
• Ground Fault Monitoring: Yes
• Anti-Islanding Protection: Yes
• Integrated AFCI (DC Arc-Fault Circuit Protection): Yes
• Integrated DC Switch: Yes
• Rapid Shutdown: Built-In APS
• Surge Protection: DC Type III/AC Type III
• Compliant MLRSD Products: TS4-A-F/2F, APSmart RSD-S/RSD-D
• Topology: Transformerless
• Self-Consumption at Night: <1 W
• Relative Humidity: 0-100%
• Operating Ambient Temperature: -13 to 140 deg F
• Storage Environment: -13 to 176 deg F
• Enclosure Rating: Type 4X

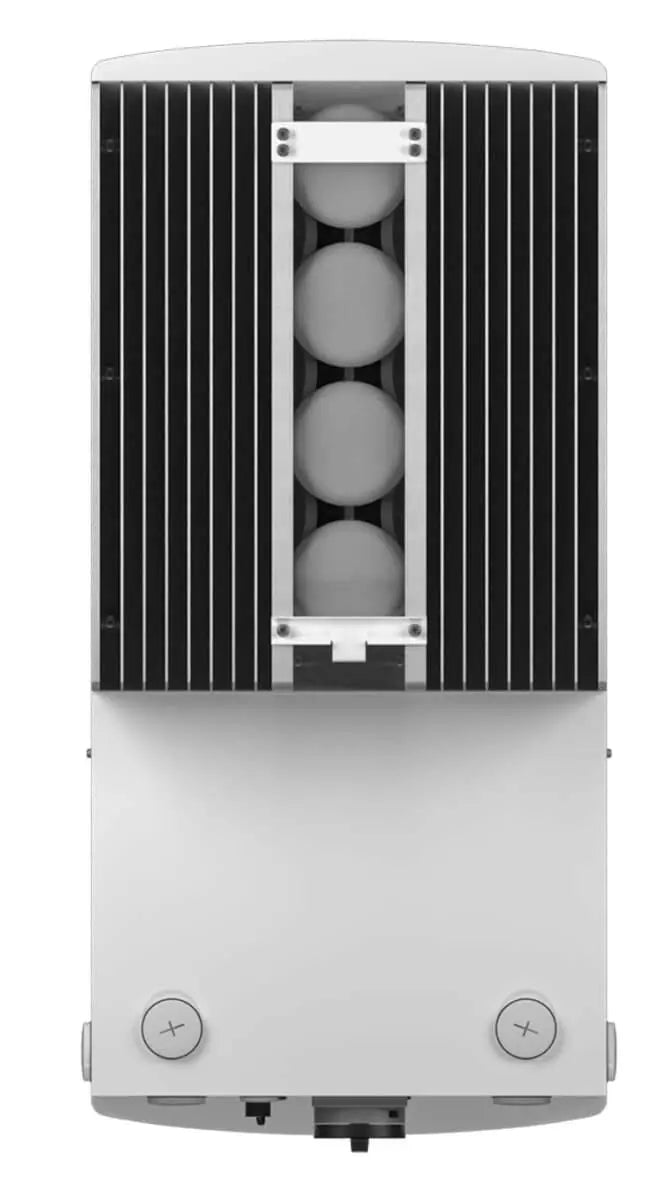

• Cooling Concept: Natural Convection
• Maximum Operation Altitude: 13120 ft
• DC Connection: 2 Knockout for 1 Conduit at Bottom, 4 Knockout for 3/4 in Conduit at Side & Back, Screw Clamp Terminal
• AC Connection: 2 Knockout for 1 in Conduit at Bottom, 4 Knockout for 3/4 in Conduit at Side & Back, OT Terminal
• Display Type: LCD
• Communication: RS485, Optional: Cellular, Wi-Fi
• Standards: UL1741SB, UL1741SA, IEEE 1547-2018, UL1699B, UL1998, FCC Part15 ClassB, California Rule 21, Heco Rule 14H, NEC 690.12-2020, CAN/CSA C22.2107.1-1
• Warranty: 10 Years
• Weight: 45.2 lb


Documents

• Specification Sheet
• Instruction/Installation Manual
