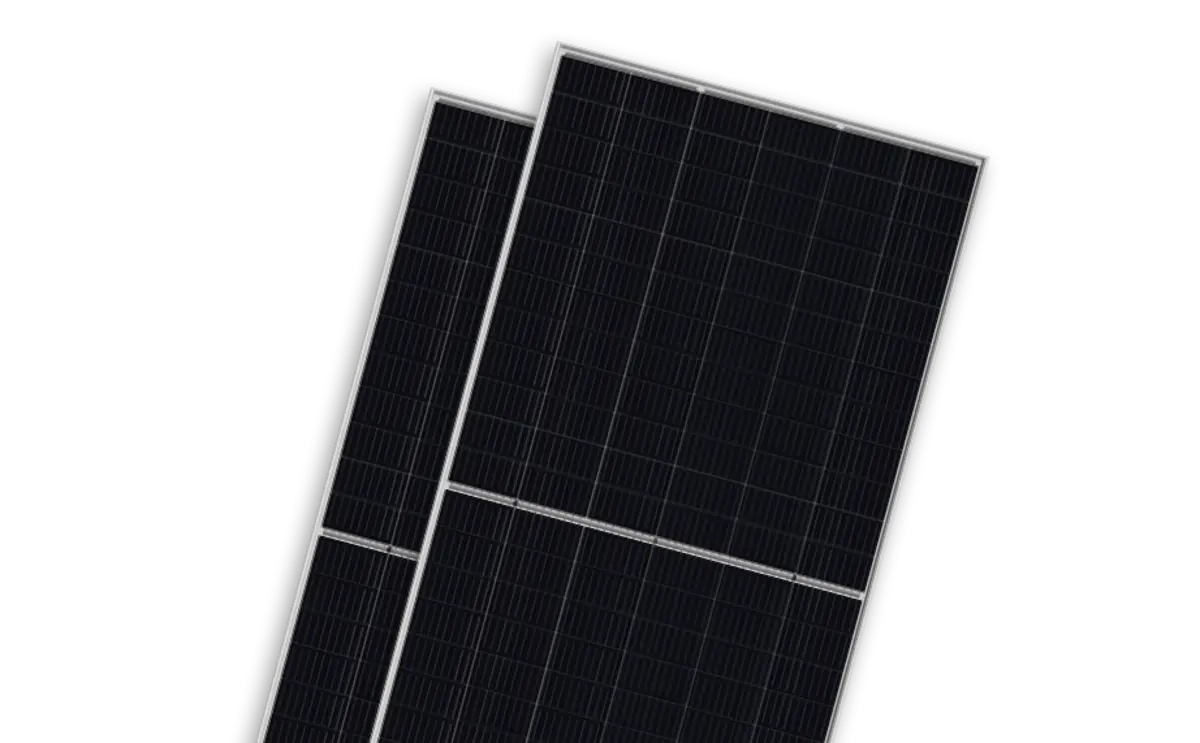

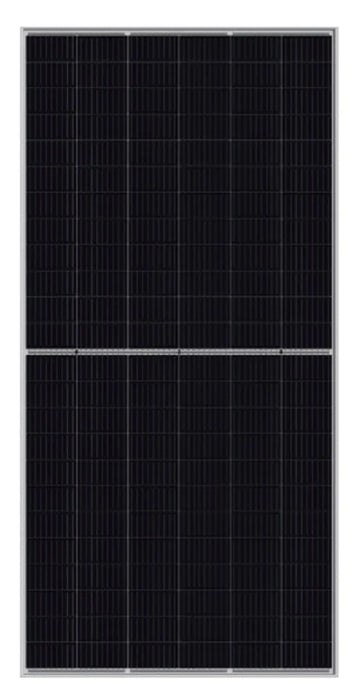

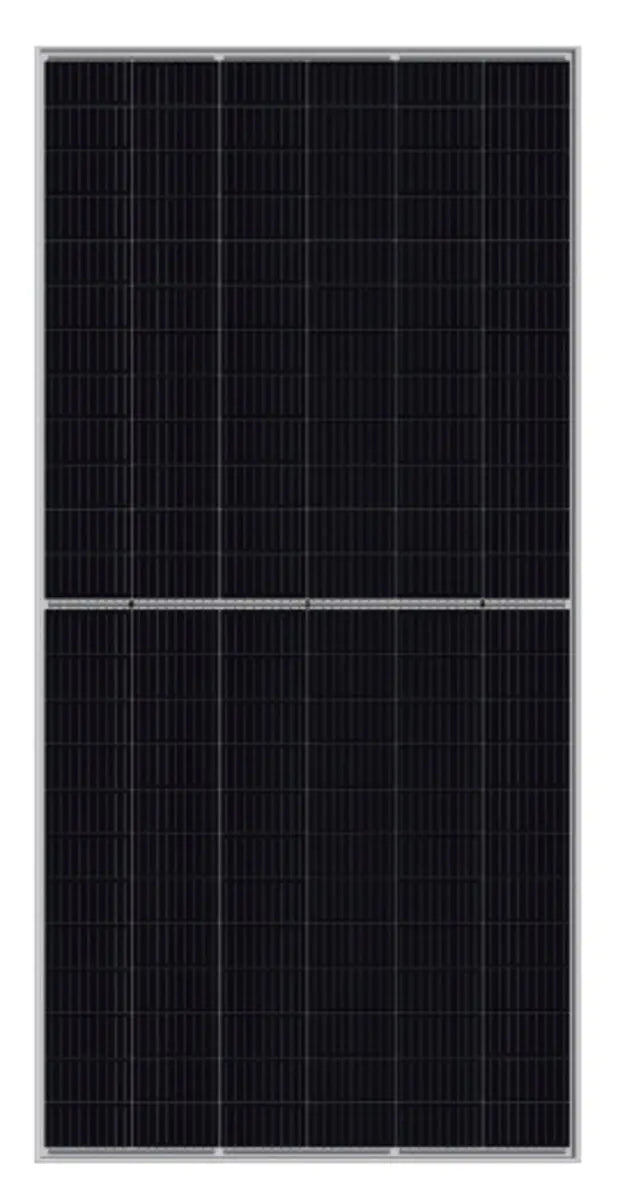

Talesun Bistar TP6F72M-400 400w Mono Solar Panel

Features

• 9BB half-cut cell technology - New circuit design, lower internal current, lower Rs loss
• Significantly lower the risk of hot spot - Special circuit design with much lower hot spot temperature
• Lower LCOE - 2% more power generation, lower LCOE
• Excellent Anti-PID performance - 2 times of industry standard Anti-PID test by TUV SUD
• IP68 junction box - High waterproof level


Specifications

• Series/Model: BISTAR
• Length: 2008 mm
• Width: 1002 mm
• Height: 35 mm
• Frame Depth: 35 mm
• Cells Technology: Monocrystalline Silicon (9Busbar) Half-Cut
• Cell Dimensions: 158.75 mm x 158.75 mm
• Number of Half Cells: 144 (6 x 24)
• Maximum Power (Pmax): 400 W STC, 298.5 W NOCT, 367.8 W PTC
• Maximum Power Voltage (Vmp): 40.5 V STC, 37.7 V NOCT
• Maximum Power Current (Imp): 9.89 A STC, 7.93 A NOCT
• Open-Circuit Voltage (VOC): 49.1 V STC, 45.7 V NOCT
• Short-Circuit Current (Isc): 10.43 A STC, 8.42 A NOCT
• Maximum System Voltage: 1000 V/1500 VDC (IEC)
• Maximum Series Fuse Rating: 20 A
• Module Efficiency: 19.9%
• Frame Material: Anodized Aluminum Alloy with 400 mm Mounting Holes
• Front Glass: 3.2 mm High Transmission, Tempered Glass
• Frame Color: Clear
• Irradiance: 1000W/m² STC, 800W/m² NOCT
• Output Cables: PV Wire (+)300 mm (11.81 in)/(-)300 mm (11.81 in), (+)1200 mm (47.24 in)/(-)1200 mm (47.24 in), 4mm² (0.006 in²)
• Connector Type: MC4 Compatible
• Pressure Rating: 5400 Pa
• Operating Temperature: -40 to 185°F
• Cell Temperature: 25°C STC
• Ambient Temperature: 20°C NOCT
• Temperature Coefficients of Pmax: -0.36%/°C
• Temperature Coefficients of Open-Circuit Voltage (VOC): -0.26%/°C
• Temperature Coefficients of Isc: 0.043%/°C
• Nominal Operating Cell Temperature: 43 ± 2°C
• Air Mass (AM): 1.5 STC, 1.5 NOCT
• Junction Box: IP68 Rated, 3/6 Bypass Diodes
• Power Output Tolerance: 0-3 W
• Standards: CE, UL, IEC, cULus, CEC, JET, TUV, IEC 61215/IEC 61730/UL 1703, ISO 9001:2015 Quality Management System, ISO 14001:2015 Environment Management System, ISO 45001:2018 Occupational Health and Safety Management Systems, Class II
• Warranty: 12 Years Product, 25 Years Linear Performance
• Weight: 49.6 lb
