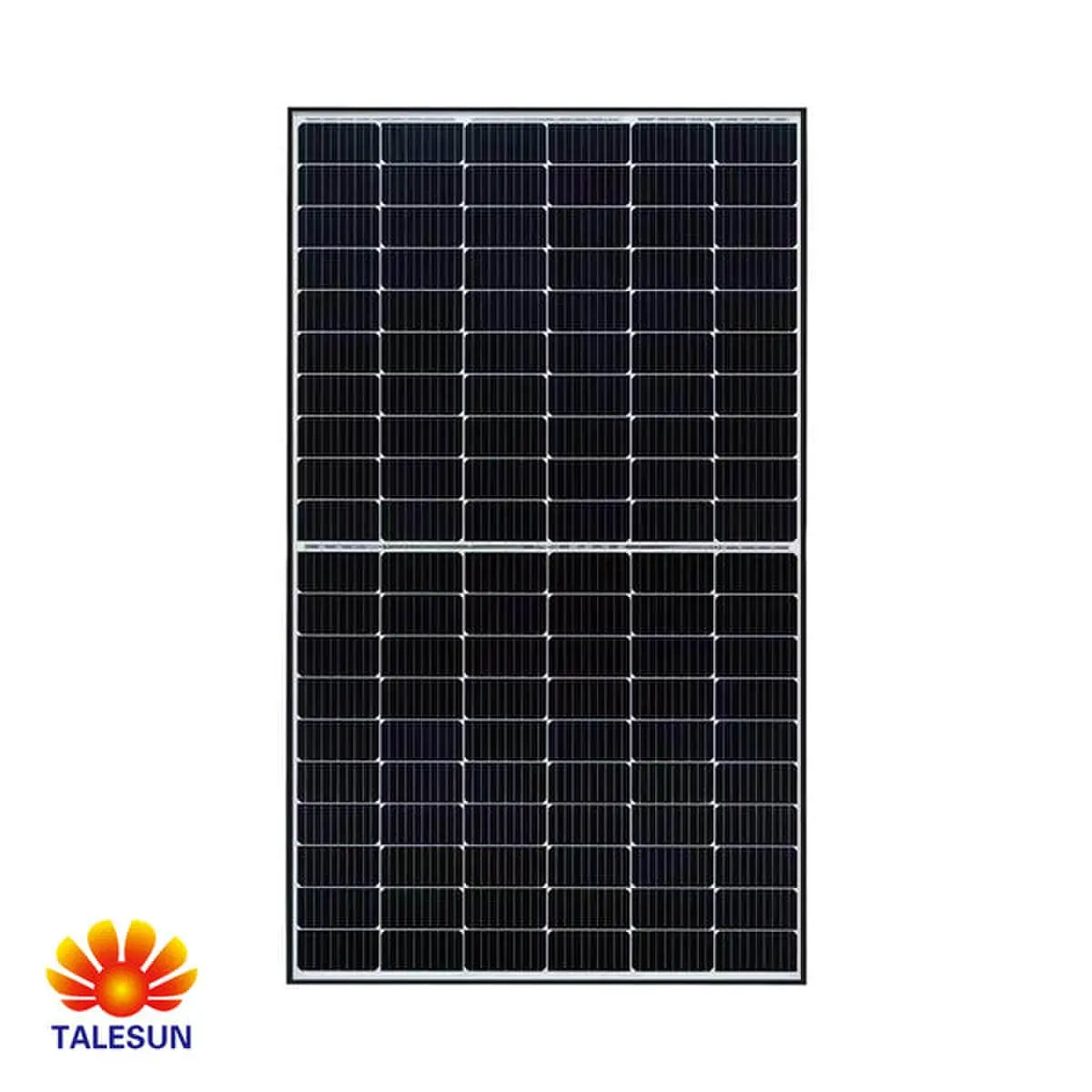

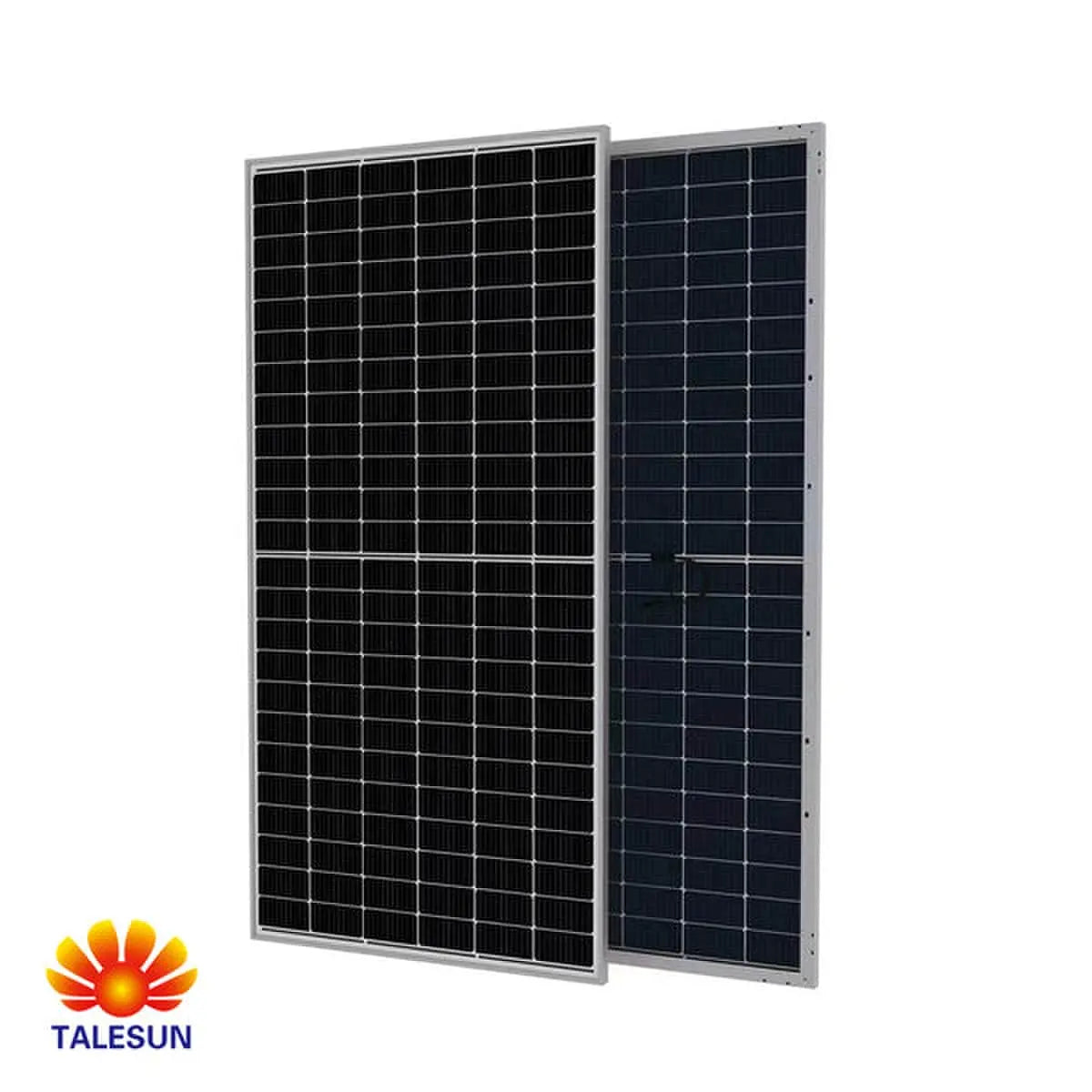

Talesun 450W 144 half cell White/Silver Module (SKU Part Number TD6I72M-450)

Features

• 9BB half-cut cell technology - New circuit design, lower internal current, lower Rs loss Ga dopped wafer, attenuation＜2% (1st year) / ≤0.45% (Linear)
• Industry leading high yield - Bifacial PERC cell technology, 5 - 25% more yield depends on different conditions
• Excellent Anti-PID performance - 2 times of industry standard Anti-PID test by TUV SUD
• Wider application - No water-permeability and high wear-resistance, can be widely used in high-humid, windy and dusty area
• IP68 junction box - High waterproof level


Specifications

• Maximum Power (Pmax): 450 W
• Voltage at Maximum Power: 42 V
• Current at Maximum Power: 10.72 A
• Open-Circuit Voltage (VOC): 49.7 V
• Short-Circuit Current (ISC): 11.36 A
• Panel Efficiency: 20.7%
• Operating Temperature: -40 to 85°C
• Temperature Coefficient: -0.36%/°C (Pmax), -0.26%/°C (VOC), 0.043%/°C (ISC)
• Maximum System Voltage (Vmax): 1500 VDC
• Fuse Rating: 25 A
• Dimensions: 2094 mm (L) x 1038 mm (W) x 30 mm (H)
• Cell Type: Monocrystalline (Half Cell)
• Cell Orientation: 144
• Glass Type: AR Coating Semi-Tempered Glass (Front), Glazed Semi-Tempered Glass (Back)
• Frame Type: Anodized Aluminum Alloy
• Junction Box Diodes: 3
• Junction Box Protection Class: IP68
• Connector Type: MC4
• Cable Cross Section Size: 4 mm²
• Cell Dimension: 166 x 166 mm
• Color: White/Silver
• Standards: cULus Listed, CE
• Weight: 61.73 lb
• Warranty: 12-30 Years

Documents

• Specification Sheet
