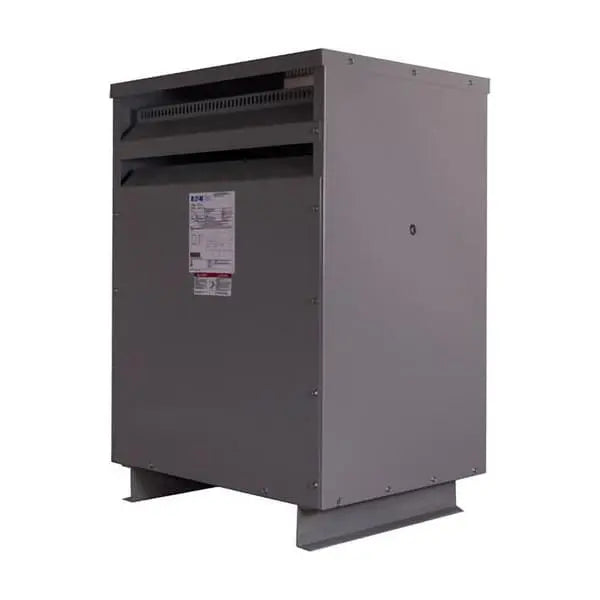

T20P11S2516 - Eaton General Purpose Ventilated Transformer
The Eaton General Purpose Ventilated Transformer is engineered for dependable performance in demanding electrical environments. Designed with aluminum windings and a NEMA 2 enclosure, this 25 KVA single-phase transformer ensures safe and efficient voltage conversion. It features a primary voltage of 240 x 480 VAC and a secondary of 120Y/240 VAC, making it ideal for a range of general-purpose applications. Built to NEMA ST-20 standards, it supports upright-only installation and operates at 60 Hz, with a 220°C insulation system and 150°C rise for enhanced thermal durability.
Key Features:
- 25 KVA single-phase transformer for general-purpose use
- 240 x 480 VAC primary and 120Y/240 VAC secondary voltages
- Aluminum windings and ventilated NEMA 2 enclosure
- Upright installation only; operates at 60 Hz
- 220°C insulation class with 150°C temperature rise
- Meets NEMA ST-20 performance standards
This Eaton transformer provides a safe, reliable solution for indoor electrical distribution with excellent thermal protection and lasting durability.
Documents:
Brochures
Eaton's high-efficiency dry-type transformers
Eaton's low-voltage dry-type distribution transformers
Specifications and datasheets
Eaton Specification Sheet - T20P11S2516
