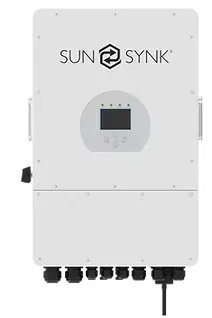

Sunsynk 8 kW Hybrid Inverter
Achieve energy independence without compromise. The Sunsynk 8 kW Hybrid Inverter blends on-grid and off-grid functionality, helping you maximize solar self-consumption while seamlessly supporting battery storage and grid backup.
Key Features & Benefits
-
Hybrid versatility: Acts as both inverter and charger—combine solar, battery, and grid input into a single integrated system.
-
High output: Provides 8,000 W continuous AC output, handles bursts up to 8,800 W.
-
Efficient energy conversion: Up to 97.6% maximum efficiency, with Euro efficiency at ~97.0%.
-
Robust battery support: Compatible with both lead-acid and Li-Ion battery chemistries. 48 V nominal (operating between 40 V to 60 V)
-
Strong charge/discharge capability: Up to 190 A charging/discharging current ensures fast battery cycling.
-
Dual MPPT inputs: Two independent MPPT strings, each handling multiple PV strings for optimized solar harvesting.
-
Wide MPPT range: ~125 V to 425 V (or similar) across MPPTs to accommodate various PV configurations.
-
Seamless grid/off-grid transition: Automatic switching between on-grid and off-grid modes within milliseconds.
-
Smart operation & monitoring: LCD display, optional WiFi or Ethernet modules, remote monitoring via app or browser.
-
Solid protection: IP65 rating for outdoor/indoor use, protections for arc faults, lightning, over-current, reverse polarity, insulation loss, anti-islanding, and more.
Typical Specifications Snapshot
| Specification | Value |
|---|---|
| Nominal Output Power | 8,000 W AC |
| Peak Output (AC) | 8,800 W |
| Max Efficiency | ~97.6% |
| Battery Voltage / Range | 48 V nominal (40 – 60 V) |
| Max Charge / Discharge Current | 190 A |
| MPPT Trackers | 2 |
| MPPT Input Voltage Range | ~125 V – 425 V |
| PV Maximum DC Input Power | ~10,400 W (typical) |
| AC Pass-through Current | Up to ~50 A (continuous) |
| Protection / Ingress | IP65 |
| Operating Temperature Range | –25 °C to +60 °C (with derating beyond ~45 °C) |
Why Choose the Sunsynk 8 kW Hybrid Inverter?
-
Optimize solar usage — Store excess energy during the day and use it at night or when grid is unavailable.
-
Backup resilience — Automatically kicks in during power outages to keep essential loads running.
-
Scalable system — Can be paralleled with additional units (depending on variant) for larger systems.
-
Future-proof & flexible — Works with different battery types, supports remote monitoring and smart configurations.
-
Durable & safe design — Outdoor-friendly with strong protection features to withstand harsh environments.
Document: Specification Sheet
