Sungrow SG125CX-P2 — Multi-MPPT String Inverter for 1000 V DC Systems

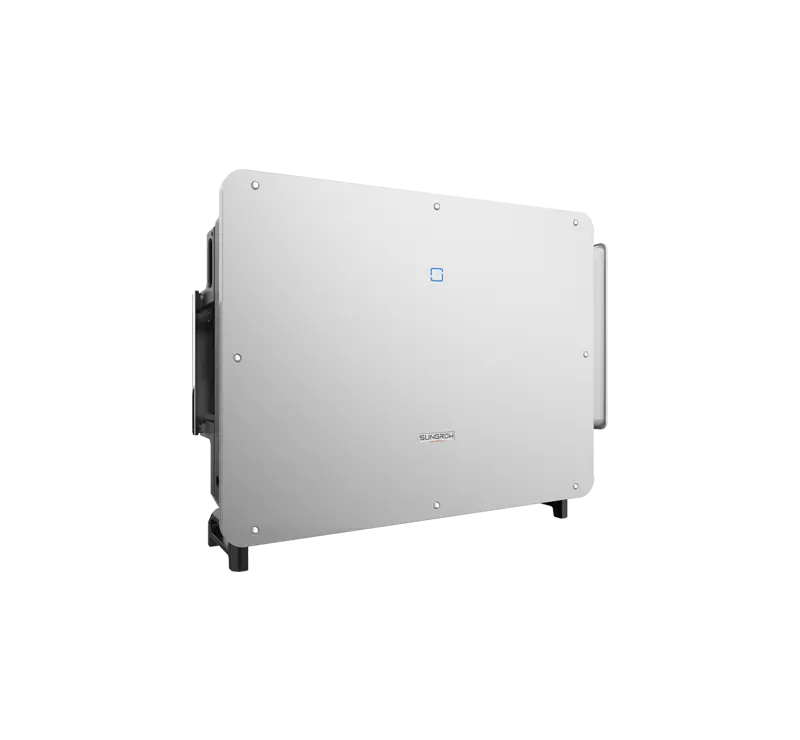

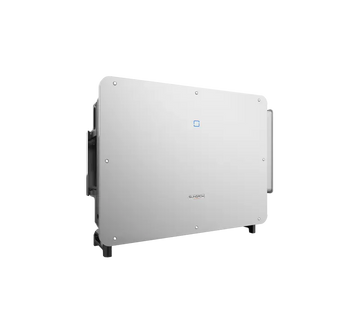

The Sungrow SG125CX-P2 is a high-performance 3-phase string inverter designed for utility, commercial, and large residential solar installations. With 12 independent MPPTs, high efficiency, robust protections, and smart O&M capabilities, it provides flexibility and reliability for 1000 V DC systems.
Key Features & Benefits
-
12 Independent MPPT Channels
Enables fine granularity for string layout, shading mitigation, and mismatch optimization. -
High Efficiency & Performance
-
Peak efficiency up to 98.5 %
-
Supports large PV input power for high energy yield
-
-
Wide DC Operational Range & Compatibility
Works on 1000 V systems, allowing longer string lengths and lower wiring losses. -
Advanced Protections & Diagnostics
Offers protections such as anti-islanding, overcurrent, reverse polarity, AC short circuit, and leakage protection.
Built-in smart fault diagnosis and monitoring functions simplify operations and maintenance. -
Robust & Rugged Design
-
IP66 rated for outdoor installations
-
Effective cooling via forced air cooling to maintain performance under heat stress
-
Operating temperature range from –30 °C to +60 °C
-
-
Compact & Install-Ready Format
Wall-mountable with mounting brackets, designed for ease of installation in commercial PV setups.
Technical Highlights & Specs
| Parameter | Value / Range |
|---|---|
| Model | SG125CX-P2 (3-phase multi-MPPT string inverter) |
| Nominal AC Output | 125 kW (3-phase) |
| Max PV Input Power | ~ 175 kW |
| Number of MPPTs | 12 |
| Peak Efficiency | 98.5 % |
| Cooling | Forced air cooling |
| IP Rating | IP66 |
| Operating Temp | –30 °C to +60 °C |
| Dimensions | 1020 × 795 × 360 mm |
| Weight | ~ 89.5 kg |
Document: Specification Sheet
