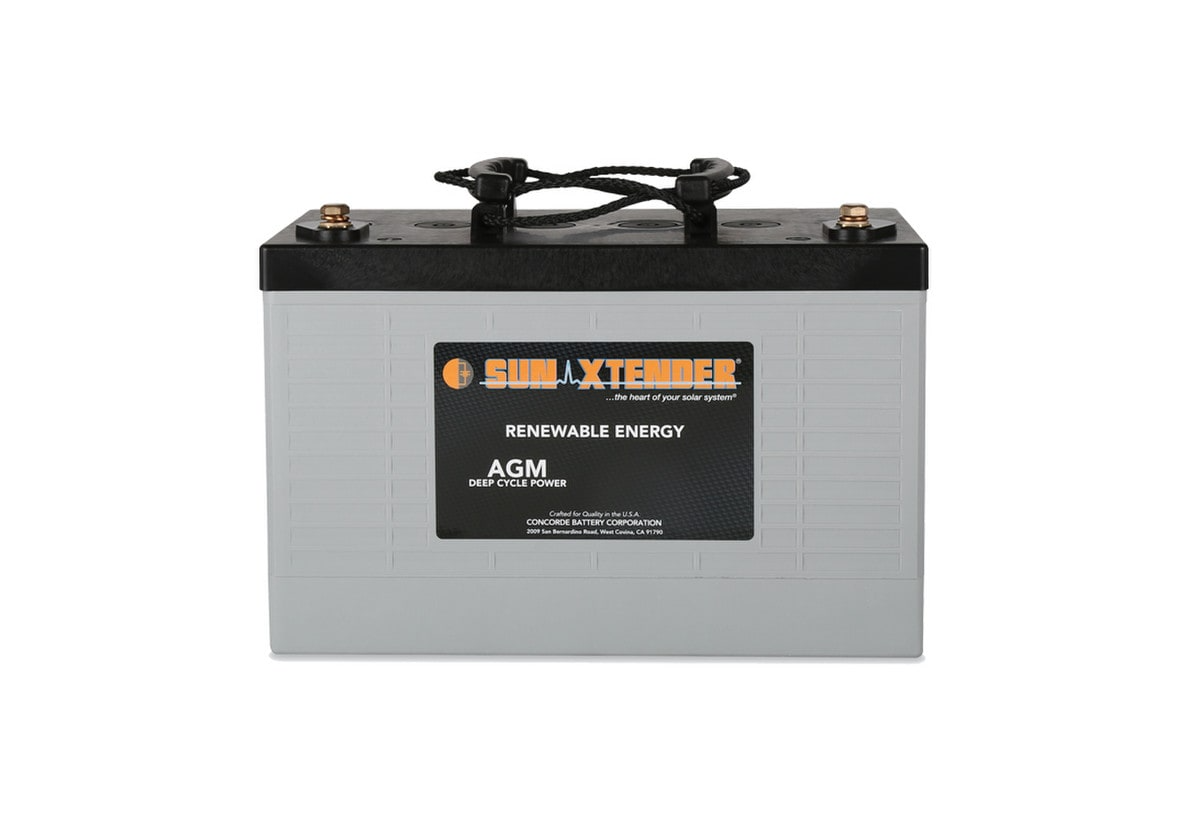

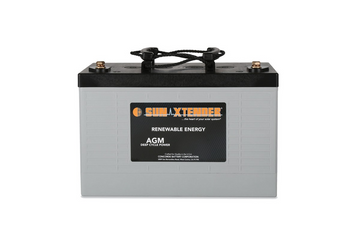

Sun Xtender, PVX-890T, 12V, AGM Deep Cycle Solar Battery

Features

• Designed for photovoltaic applications for superior & reliable solar power
• T terminals are copper alloy with silicon bronze bolts, nuts, & washers
• Low impedance design
• Maintenance free
• Constructed with non removable vent valves - no addition of electrolyte or water required
• Non spillable in any attitude
• Shipped fully charged and ready to install
• Manufactured with absorbed glass mat separators (AGM)
• Sun Xtender® Series batteries ship non-HAZMAT
• Recombinant gas SunXtender Deep Cycle AGM Series solar batteries are low resistance, valve regulated lead acid (VRLA) batteries
• Non-Spillable maintenance free construction allows battery to be used upright, on it's end or side
• Features PolyGuard™ Microporous Polyethylene Separators shielding the positive plates against shorting, shock or vibration
• There is no exposed lead on SunXtender batteries and they are 100 percent recyclable making them environmentally friendly
• Designed for photovoltaic applications for superior & reliable solar power
• Low Self Discharge Rate Approximately 1 % per month at 25 deg C (77 deg F)

Specifications

• Type: Deep Cycle
• Series/Model: PVX
• Voltage Rating: 12 V
• Nominal Capacity:
  • 55 Ah at 1 hr
  • 70 Ah at 2 hr
  • 72 Ah at 4 hr
  • 79 Ah at 8 hr
  • 89 Ah at 24 hr
  • 95 Ah at 48 hr
  • 98 Ah at 72 hr
  • 100 Ah at 100 hr
  • 102 Ah at 120 hr
• Dimensions: 12.9 in (L) x 6.75 in (W) x 8.96 in (H)
• Material: Copolymer Polypropylene
• Battery Group Size: 31
• Operating Temperature: -40 to 72°C
• Self Discharge Rate: ~1% per Month at 25°C
• Positive Plates: Proprietary Lead Calcium Alloy
• Negative Plates: Lead Calcium
• Terminal: Copper Alloy
• Technology: Absorbed Glass Mat (AGM)
• Standards: UL Listed
• Warranty: Limited
• Weight: 62 lb
• Application: Street & Bus Stop Lighting, Cathodic Protection


Documents

• Specification Sheet
• Technical Manual
• Warranty Information
