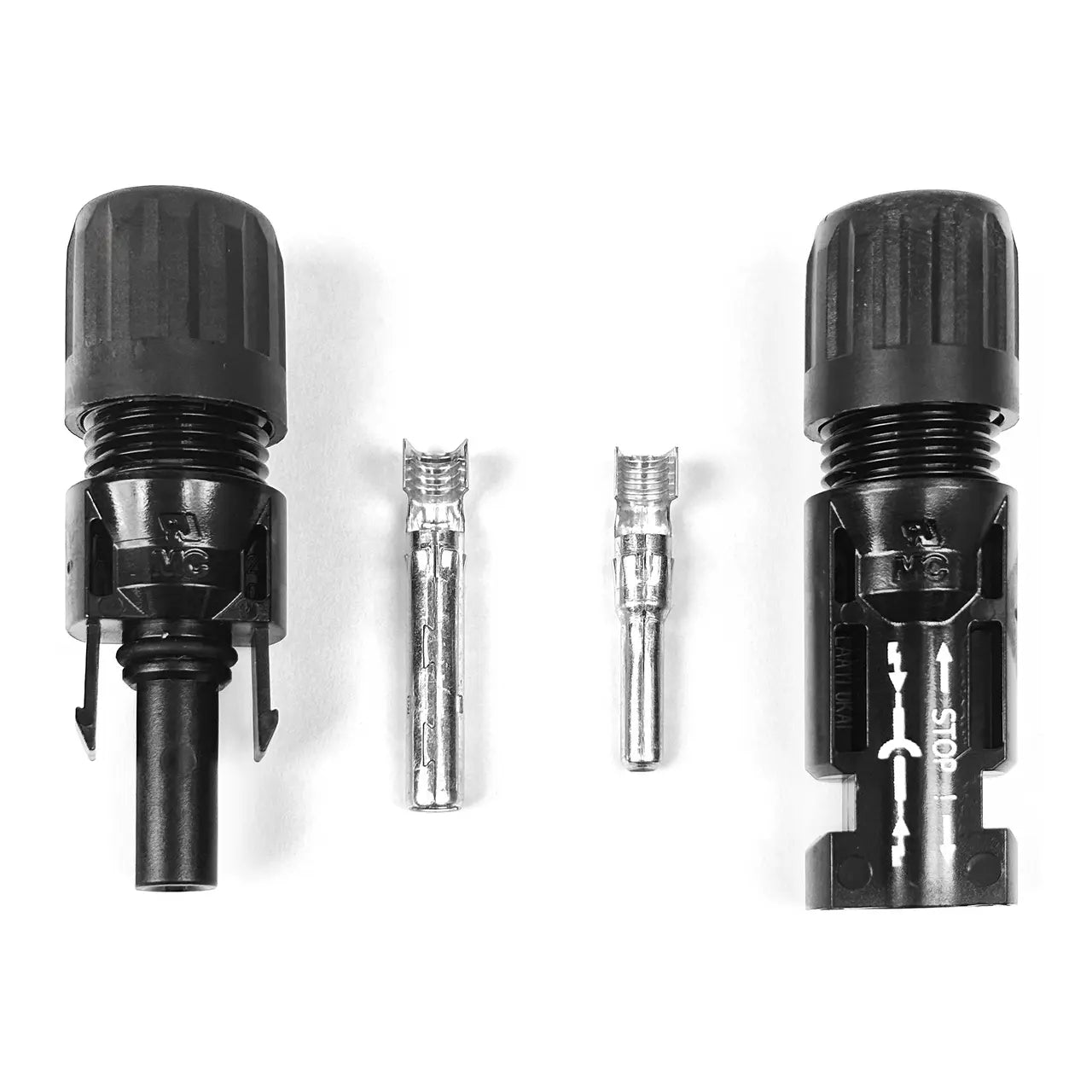

Staubli MC4 PV Solar Panel Cable Connector Pair - Made in USA
Staubli MC4 Solar Connector – Reliable, Proven, and Field-Tested
The industry-leading photovoltaic (PV) connector trusted worldwide for its unmatched reliability, performance, and long-term durability. Made in the USA. Designed and manufactured by Staubli (formerly Multi-Contact), this original MC4 connector sets the global benchmark for safe and efficient solar energy connections.
Features
- Snap-in locking mechanism for secure, vibration-resistant connections
- Low-contact resistance thanks to Staubli's patented MULTILAM technology
- Fits TEMCo 10 AWG or 12 AWG PV solar cable or any other PV cable with a 5.5–7.4mm outer diameter
- IP65/IP68 rated when mated — dust-tight and waterproof
- Rated up to 1500 VDC, with current-carrying capacities up to 50A
- Requires a solar crimper tool (e.g., TEMCo TH0011)
- Sold as 1 pair (1 male + 1 female connector)
Specifications
| Specification | Value |
|---|---|
| Protection Grade | Safety Class II |
| Contact Resistance | 5 mΩ or less |
| Rated Amps | 50A |
| Insulation Material | PC/PA |
| Max Temperature | 85°C |
| Min Temperature | -40°C |
| Contact Material | Tin Plated Copper |
| Rated Voltage | 1500 VDC |
| Test Voltage | 6 kV (50 Hz) |
| Insertion Force | 50N or less |
| Withdrawal Force | 50N or more |
| Locking System | Snap-in |
| Wire Capacity | 10 or 12 AWG |
| Lot Quantity | 1 Pair |
| IP Rating | IP65/IP68 (when mated) |
| Weight | 0.06 LBS |
Staubli Part Numbers
- 32.0142P0001-UR (Male)
- 32.0143P0001-UR (Female)
Warranty
5-Year Warranty | 365-Day Return Policy
