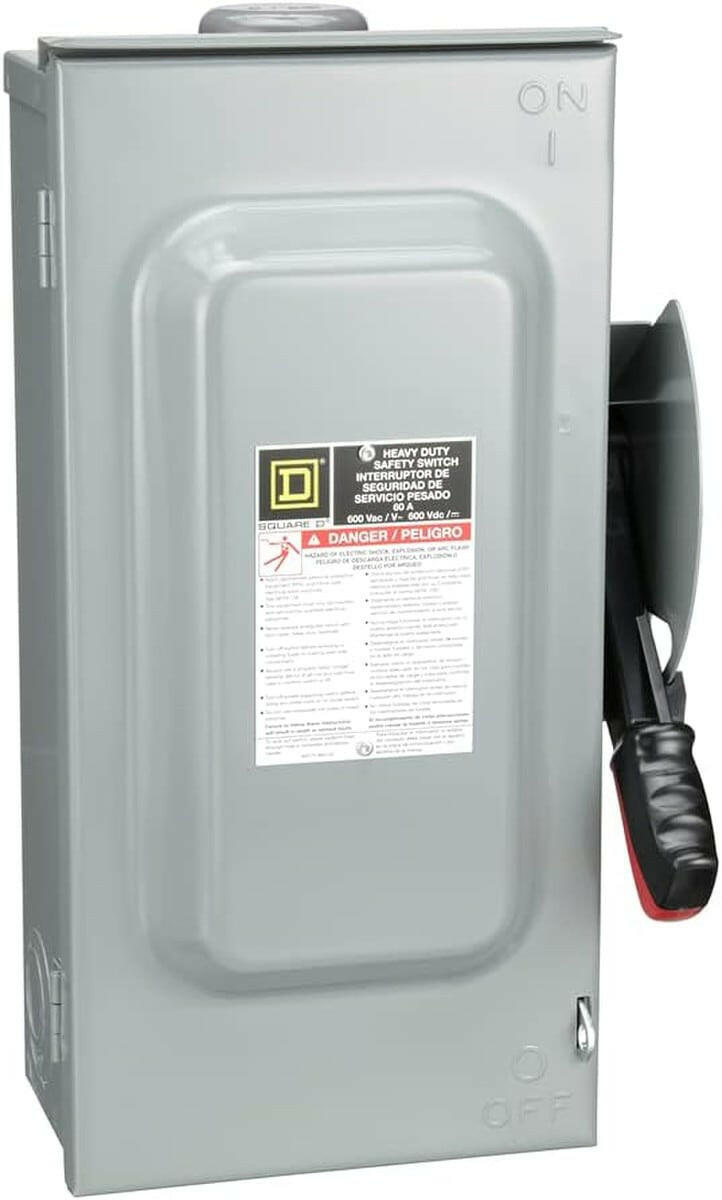

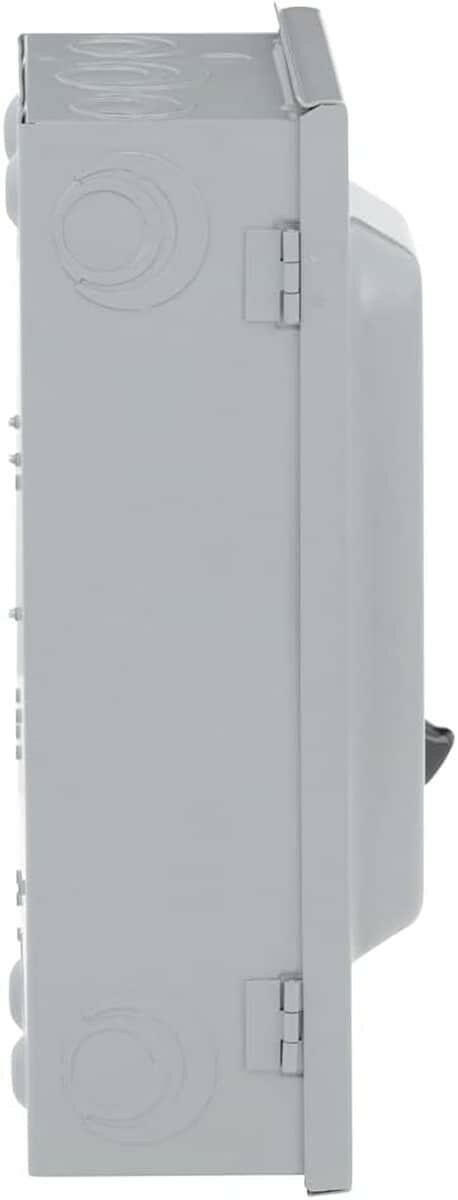

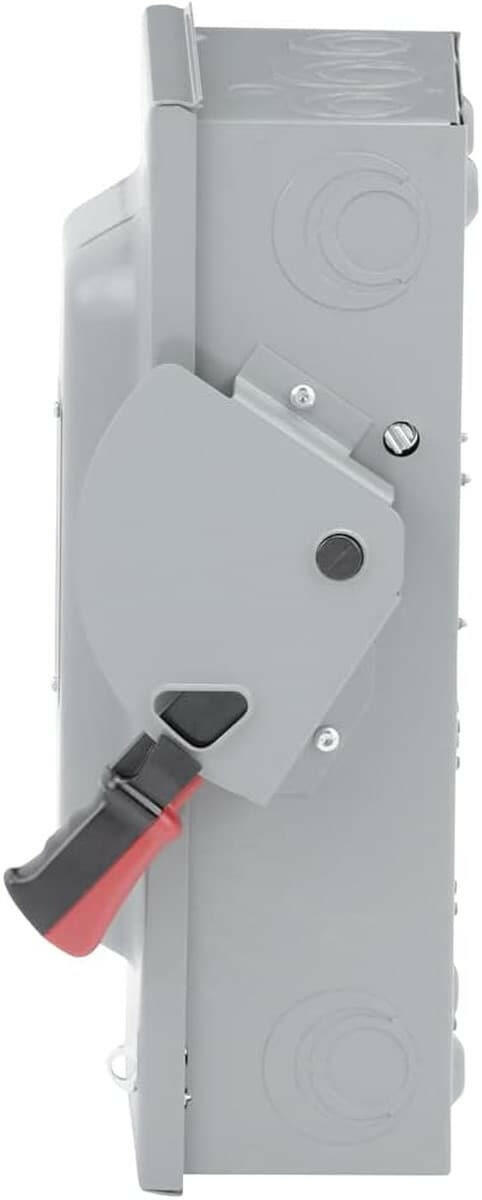

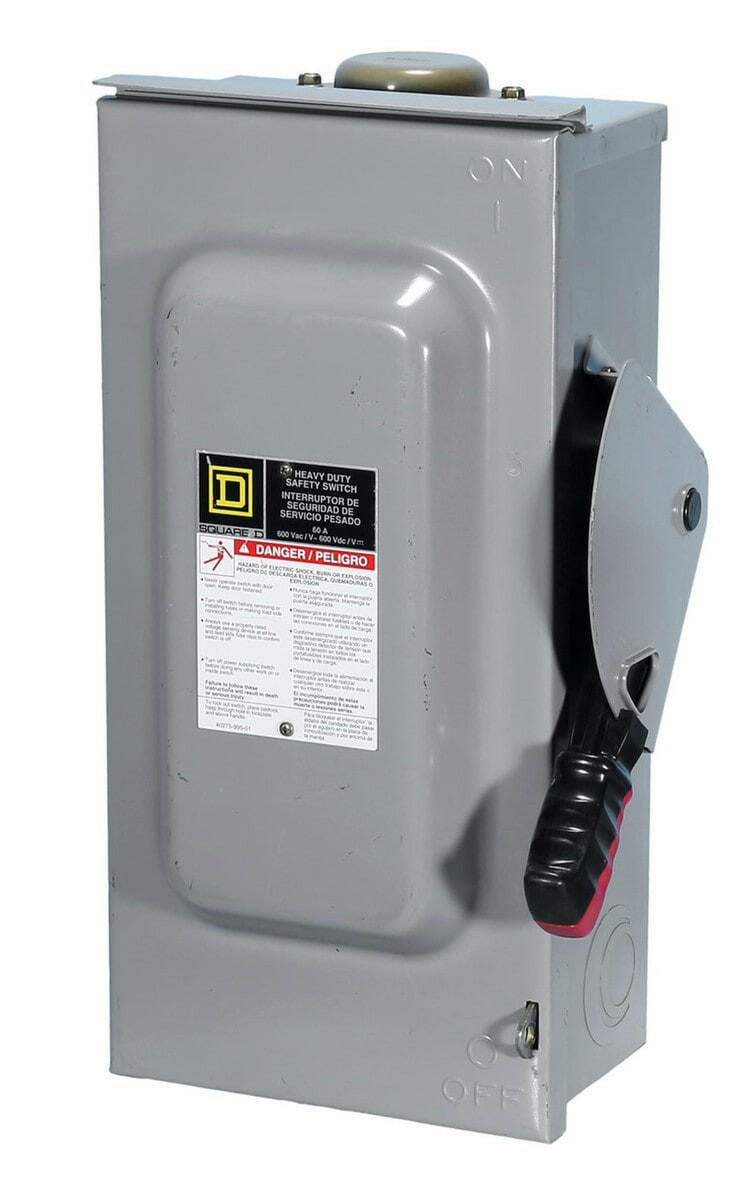

Square D/Schneider Electric 600 Vac/Vdc Non-Fusible Heavy Duty Single Throw Safety Switch

Square D/Schneider Electric HU362RB 600 Vac/Vdc Non-fusible heavy duty single throw safety switch.

Features

• The Square D™ by Schneider Electric brand heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This Single Throw Safety Switch has a rated current of 60A and is UL listed with a NEMA 3R rating of protection. This 3-pole switch has operational voltage ratings of 600VAC/DC. The enclosure is made of galvannealed steel and has no neutral installed. This non-fusible disconnect has a short circuit current rating of 200kA. This safety switch is surface mounted. This switch comes with an 18 months warranty.
• Heavy duty non fusible 60A, 600VAC/DC safety switch
• Type 3R enclosure for rainproof applications, with bolt on hub provision
• Suitable for service entrance when equipped with neutral assembly or equipment grounding kit
• Quick make, quick break operating mechanism
• Dual cover interlock blocks opening cover if switch is on and switching on if cover is open
• 18 Months warranty


Specifications

• Type: Heavy Duty, Single Throw

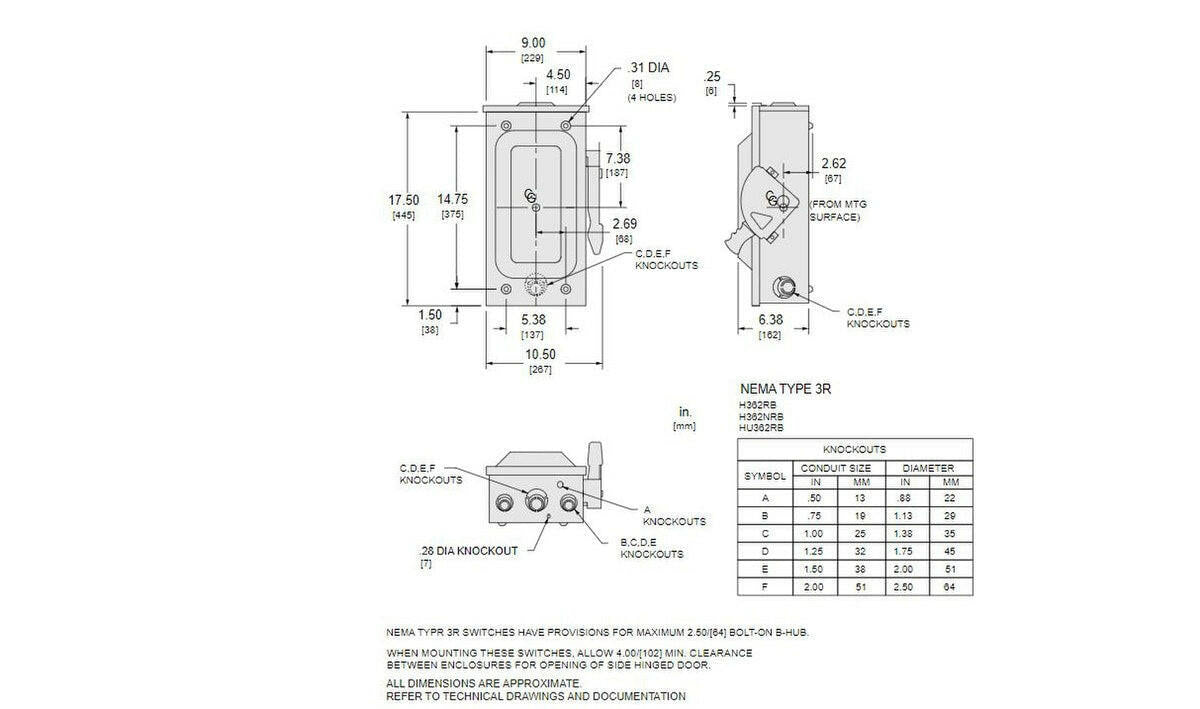

• Width: 10.5 in
• Depth: 6.38 in
• Height: 21.25 in
• Voltage Rating: 600 Vac/Vdc
• Amperage Rating: 60 A
• Phase: 3
• Number of Poles: 3
• Enclosure Rating/IP Rating: NEMA 3R
• Disconnect Type: Non-Fusible
• Mounting Type: Surface
• Number of Wires: 3
• Warranty: 18 Months
• Standards: UL Listed file E2875, RoHS/REACH


Documents

• Specification Sheet
• Catalog
• Instruction/Installation Manual
