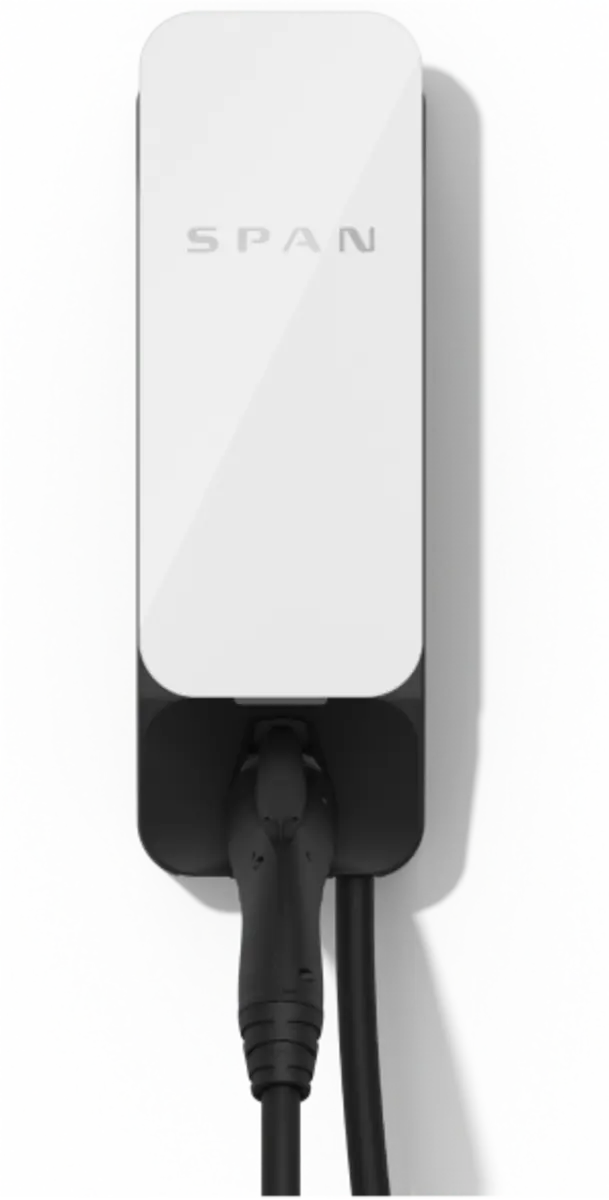

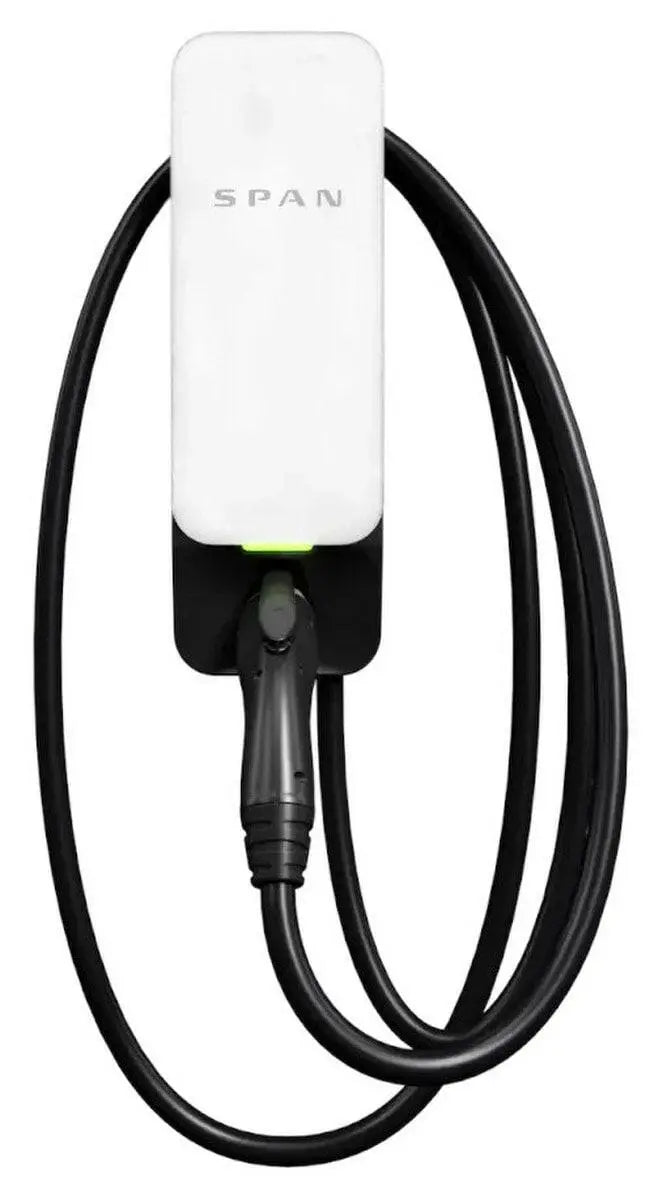

Span 11.52 kW Wall Level 2 Drive EV Charger

SPAN Drive is the first level 2 vehicle charger designed for real-time coordination with all home loads for max charging speeds and optimized energy usage without costly home electrical upgrades.

Features

• Pairs with your home to dynamically use as much energy as is available, delivering up to 48 amps (11.5 kW) - 1.5x the rate of typical Level 2 chargers
• Unlocks level 2 charging for any home without needing to make any expensive electrical service upgrades
• Looks as good as it performs and blends effortlessly with indoor and outdoor spaces as a worthy companion to your sleek EV
• Dynamic charge management for service upgrade avoidanc5
• Charge on schedule
• Lock Drive to prevent unwanted charging session
• Coming soon: Solar charging, Off-grid charge optimization, Multiple Drives per Panel and power sharing


Specifications

• Type: Level 2
• Power Rating: 11.52 kW
• Mounting Type: Wall
• Connection Type: SAE J1772
• Cable Length: 20 FT
• Dimensions: 17.9 in x 5.9 in x 3.1 in
• Voltage Rating: 208-240 Vac
• Frequency Rating: 50/60 Hz
• Output Amperage: 6-48 A
• Connectivity: Ethernet, WiFi (2.5, 5 GHz), Cellular (4G/LTE)
• Operating Temperature: -22 to 122 deg F
• Warranty: 3 Years
• Weight: 16 lb


Documents

• Specification Sheet
