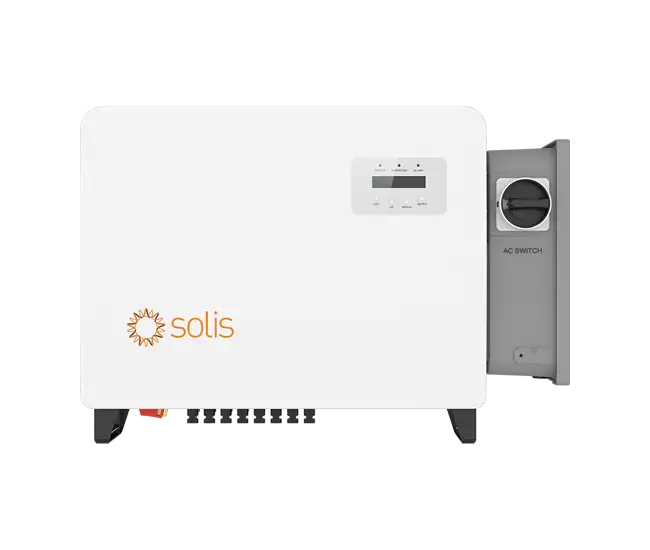

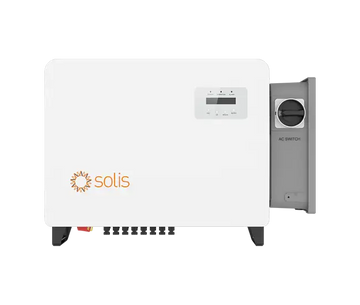

Solis S6-GC30K-LV-US 30kW 3-Phase Commercial String Inverter

The Solis 30kW 3-Phase LV Inverter (SKU: S6-GC30K-LV-US) is a high-performance commercial string inverter suitable for three-phase commercial rooftop PV projects with grid voltage of 208 or 240 VAC. It features 3 MPPT channels, integrated rapid shutdown, and AFCI protection.

Key Features

• 30 kW rated output power
• Max efficiency 97.7% (CEC efficiency 97.0%)
• 3 MPPT design for multiple orientations
• Supports up to 6 input strings
• String current up to 20 A
• Integrated AFCI protection — proactively reduces fire risk
• Integrated rapid shutdown (NEC 2017/2020 compliant)
• Zero power control capability
• Type 4X, C5 Anti-Corrosion Level enclosure
• CA Rule 21 compliant and UL 1741 SA Certified

Electrical Specifications

• Rated Output Power: 30 kW
• Max Input Voltage: 1000 V DC
• Rated Voltage: 600 V DC
• Start-up Voltage: 195 V DC
• MPPT Voltage Range: 180–1000 V DC
• Number of MPPTs: 3
• Rated Grid Frequency: 60 Hz
• Max Output Current: 91.6 A
• Output Voltage: 208/240 VAC (3-phase)

Mechanical Specifications

• Dimensions: 30.9" × 21.6" × 12.6"
• Weight: 103.8 lbs
• Cooling: Intelligent fan cooling
• Enclosure: Type 4X, C5 Anti-Corrosion

Compliance

UL 1741, UL 1741 SA, CA Rule 21, NEC 2017/2020 Rapid Shutdown

Warranty

10-year standard warranty (extendable)

Datasheet

Download Solis S6-GC30K-LV-US Datasheet (PDF)
