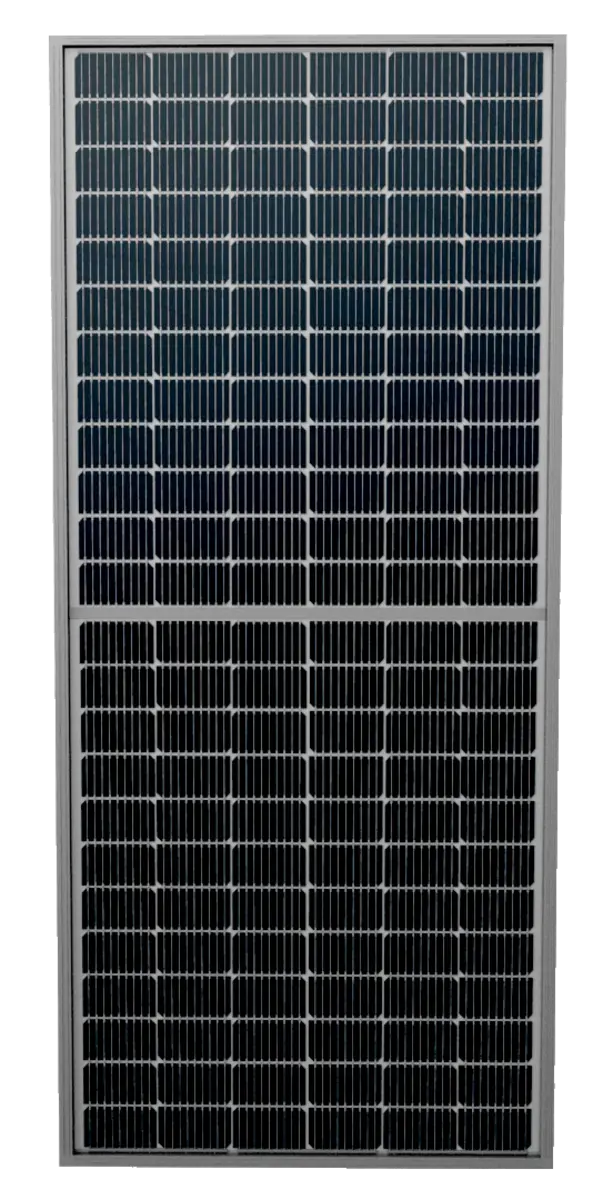

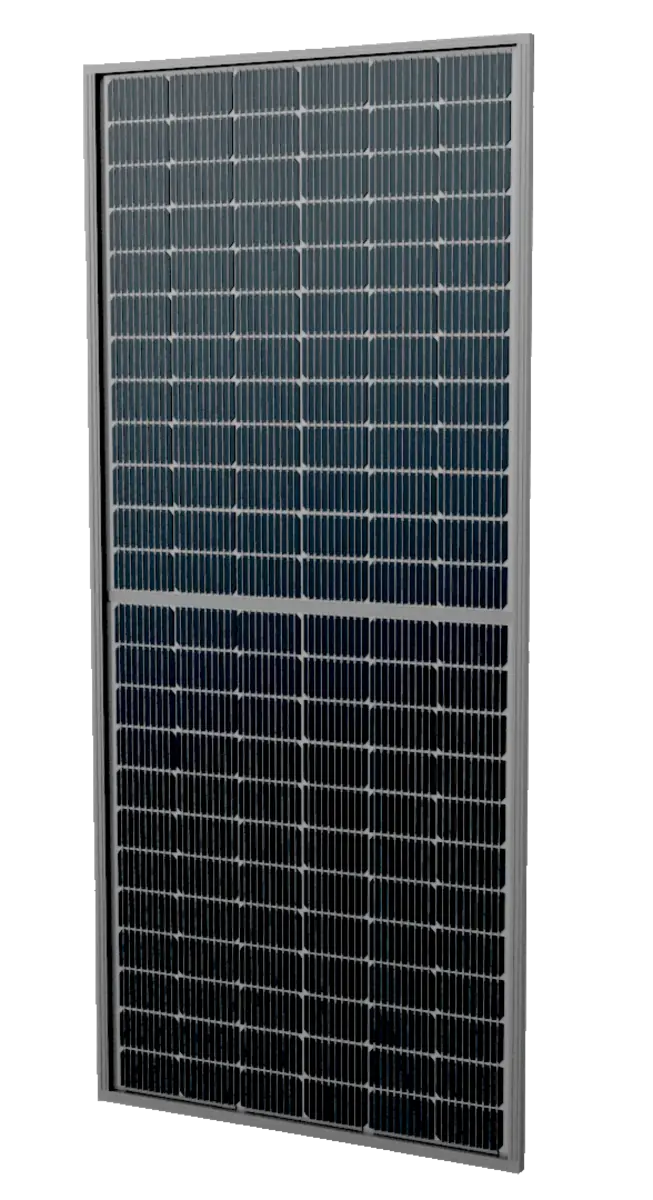

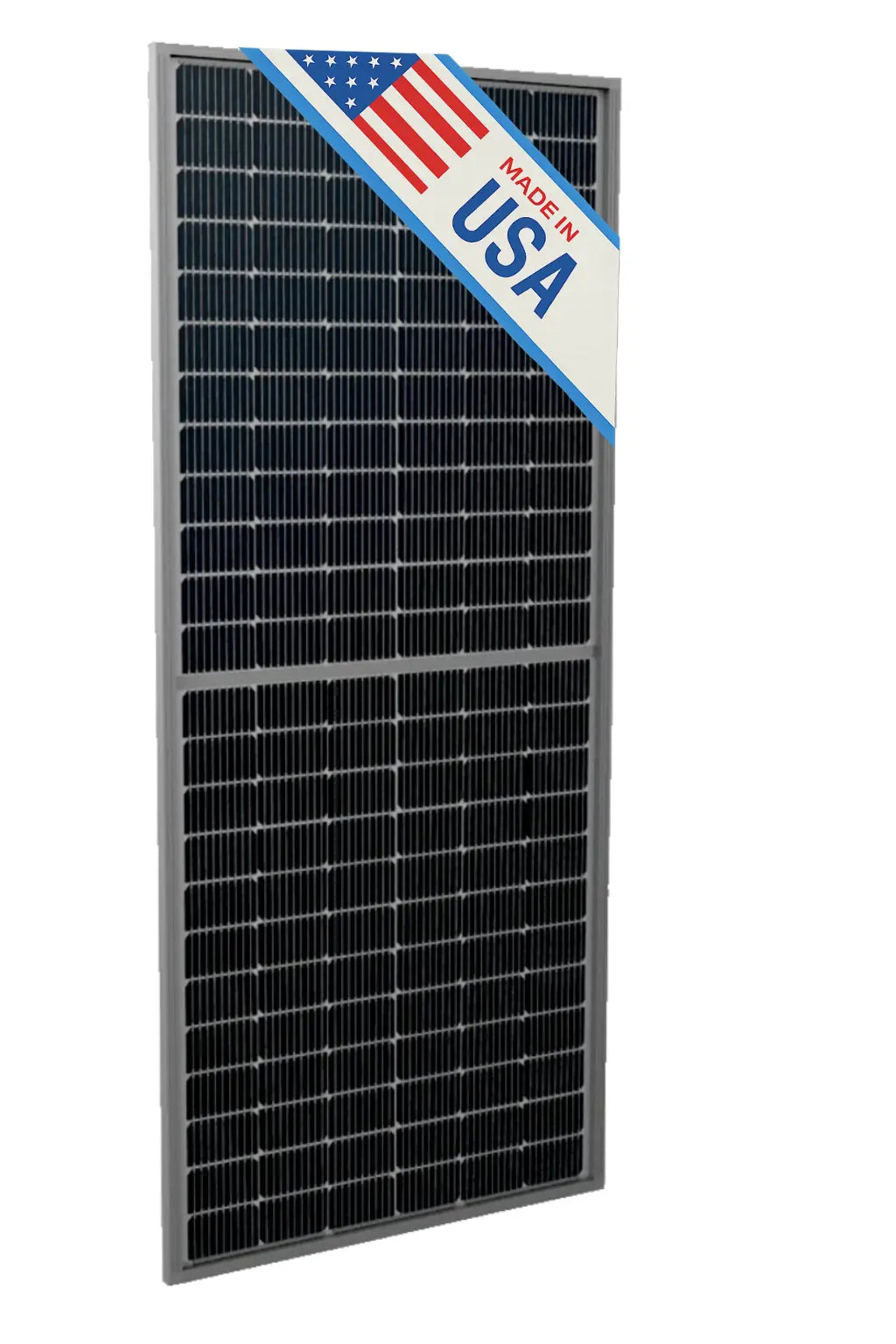

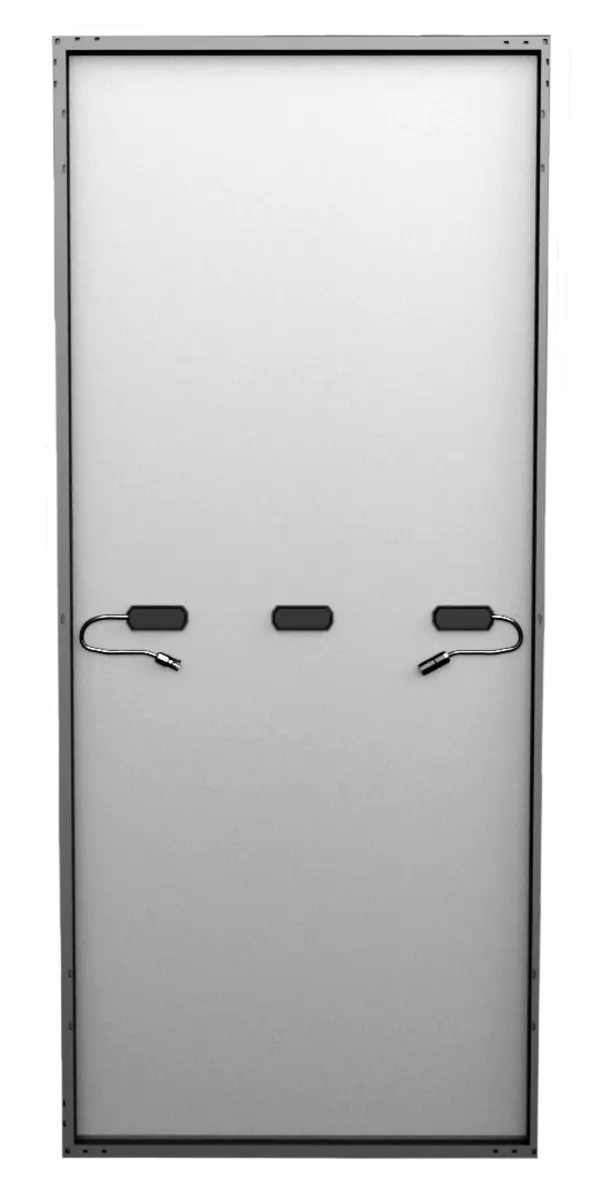

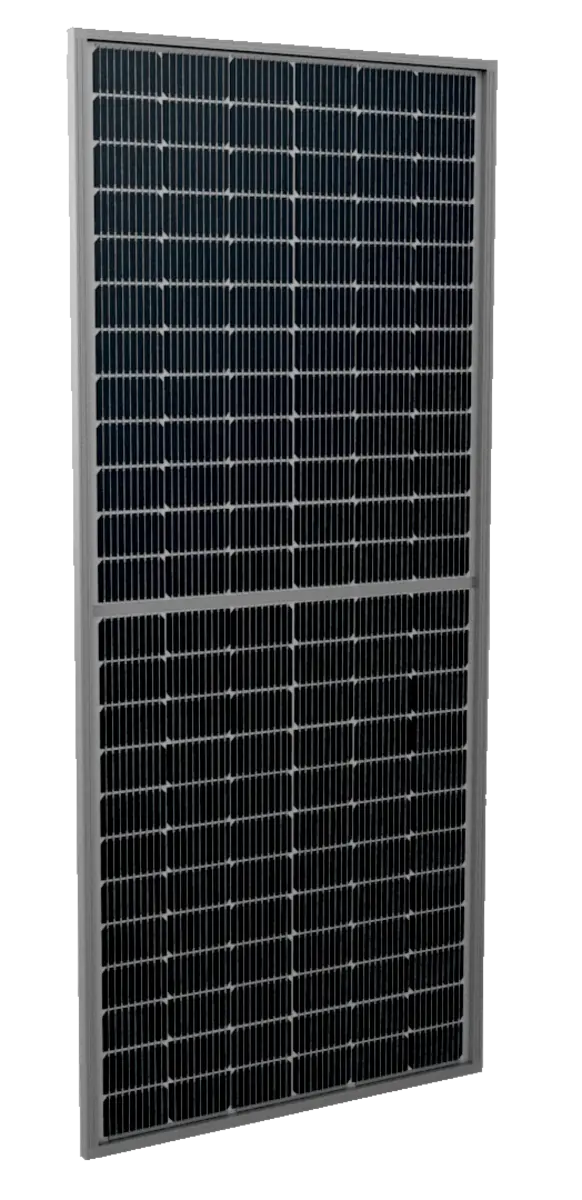

Solarever SE Series 455 W Mono PERC Split Cell Solar Panel

Solarever 455W MONO Framed Solar Panels. Multi busbar solar cell adopts new technology to improve the efficiency of modules and also offer a better aesthetic appearance. Higher module conversion efficiency (up to 20.48%) benefit from half cell structure (low resistance characteristic), advanced glass and cell surface textured design to ensure excellent performance in low-light environments, and excellent Anti-PID performance guarantee limited power degradation for mass production all make these panels ideal for installations in regions of high temperature and high humidity.

Features

• Multi busbar solar cell: Multi busbar solar cell adopts new technology to improve the efficiency of modules, offers a better aesthetic apperance, making it perfect for rooftop installation
• High efficiency: Higher module conversion efficiency (up to 21.20%) benefit from half cell structure (low resistance characteristic)
• PID Resistance: Excellent Anti-PID performance guarantee limited power degradation for mass production
• Low light performance: Advanced glass and cell surface textured design ensure excellent performance in low-light environment
• Severe weather resilience: Certified to withstand : wind load (2400 Pa) and snow load (5400 Pa)
• Durability against Extreme Environmental Conditions: High salt mist and ammonia resistance

Specifications

• Type: Split Cell
• Series: SE
• Length: 2094 mm
• Width: 1038 mm
• Depth: 35 mm
• Material: Anodized Aluminum Alloy Frame
• Color: Silver
• Power Voltage: 41.51 V
• Power Current: 10.96 A
• Power Rating: 455 W
• Open Circuit Voltage: 49.35 V
• Short Circuit Current: 11.44 A
• Voltage Rating: 1500 Vdc
• Cell Type: Mono PERC
• Number of Cells: 144 (6 x 24)
• Operating Temperature: -40 to 85°C
• Efficiency: 20.48%
• Fuse Rating: 20 A
• Enclosure Rating/IP Rating: IP68
• Module: HC 144
• Weight: 23 kg
• Standards:
  • UL
  • CSA
  • CE Certified
  • UL Type 1
  • IEC: Class C

Documents

• Specification Sheet
• Warranty Sheet
