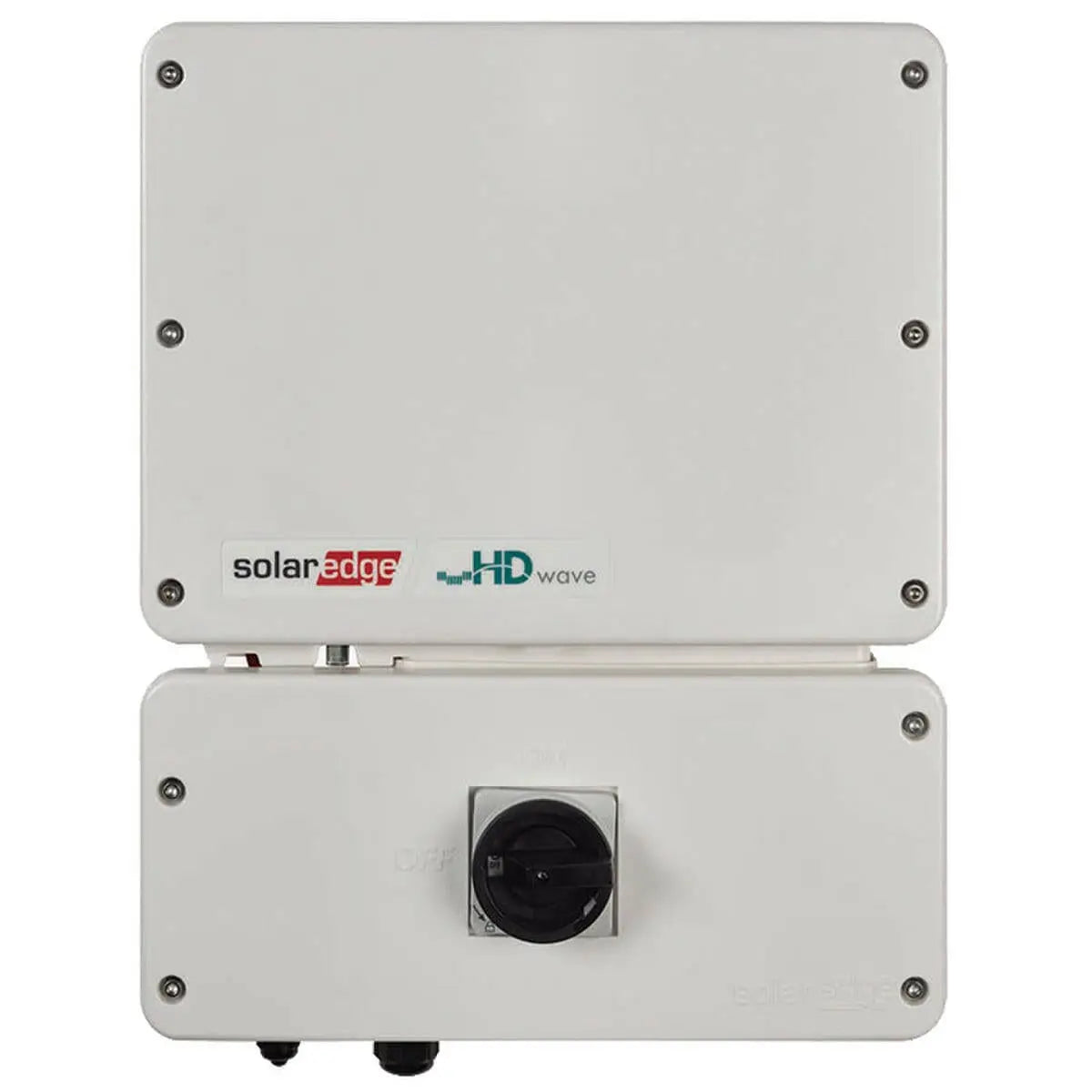

SolarEdge Technologies 6 kW 240 Vac Home Hub Inverter with HD-Wave Technology

The SolarEdge Energy Hub Inverter (Energy Hub Inverter) is a highly flexible, resilient single phase inverter that offers superior performance, maximum energy cost savings, built-in consumption monitoring and optional integration with battery, EV charging and smart energy solutions. Supports every type of residential roof, from small rooftops to large, high power installations.

Features

• One storage solution to back up the entire home
• One inverter that does it all: ready for battery and EV charging, includes built-in energy monitoring
• One flexible system to meet every future homeowner need
• With prism technology, RGM and consumption monitoring
• Up to 200% DC oversizing means more energy and self-consumption, less clipping, and optimized savings
• Higher efficiency of 99%: one conversion with DC vs three with AC
• Charge and discharge battery according to local times-of-use rates to keep bills low
• Preselect battery charge levels in the event of unplanned outages
• Take advantage of ITC and local energy storage incentives
• Modular design, future ready with optional upgrades to: DC-coupled storage for full or partial home backup Built-in consumption monitoring Direct connection to the SolarEdge smart EV charger


Specifications

• Type: With HD-Wave Technology
• Voltage Rating: 240 Vac
• Phase: 1
• Power Rating: 6 kW
• Frequency Rating: 60 Hz
• Output Voltage: 211-264 Vac, 105-132 Vac
• Input Voltage: 480 Vac / 380 Vdc
• Dimensions: 14.6 in (W) x 17.7 in (L) x 6.8 in (D)
• Input Current: 16.5 A
• Efficiency: 99.2%
• Enclosure Rating/IP Rating: NEMA 4X
• Warranty: 12-25 Years
• Standards: UL1741, UL1741 SA, UL 1699B, CSA C22.2, Canadian AFCI, IEEE1547, FCC


Documents

• Specification Sheet
