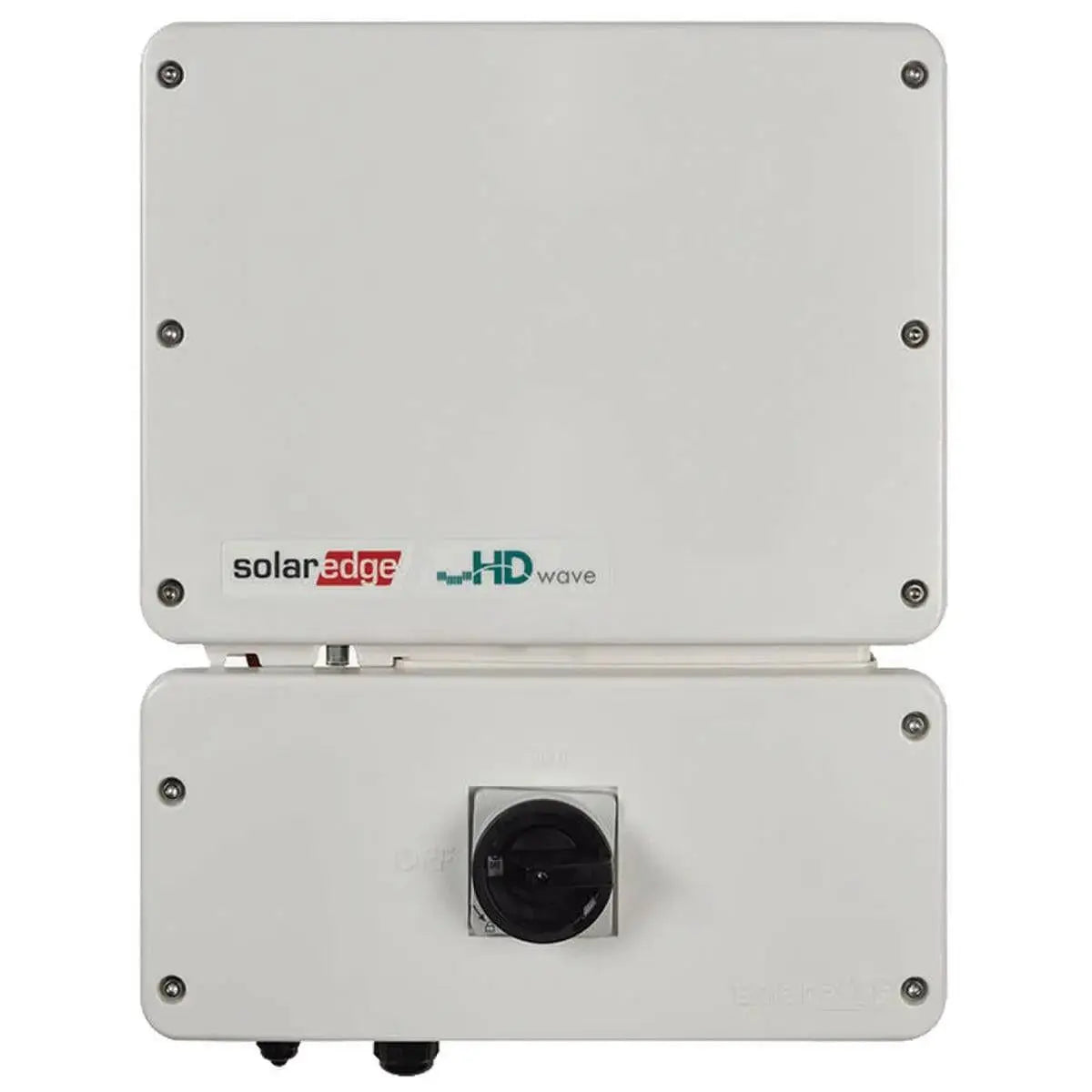

SolarEdge Technologies 11400 W Natural Convection Home Wave Inverter with HD-Wave Technology
-
Estimated Delivery:May 12 - May 16
-
Free Shipping & Returns: On all orders under $50
SolarEdge Technologies 11400 W Natural Convection Home Wave Inverter with HD-Wave Technology
The SolarEdge PV inverter combines sophisticated digital control technology with efficient power conversion architecture to achieve superior solar power harvesting and best-in-class reliability. A proprietary data monitoring receiver has been integrated into the single phase solar inverter and aggregates the power optimizer performance data from each PV module. This data can be transmitted to the web and accessed via the SolarEdge monitoring portal for performance analysis, fault detection and troubleshooting of PV systems. The single phase inverter comes with a built-in DC switch, is lightweight and can be installed by a single person on a supplied bracket.
Features
- Specifically designed to work with power optimizers
- Record-breaking efficiency
- Fixed voltage inverter for longer strings
- Quick and easy inverter commissioning directly from a smartphone using SolarEdge SetApp
- Small, lightweight, and easy to install both outdoors or indoors
-
Built-in module-level monitoring
Specifications
- Type: With HD-Wave Technology
- Overall Length: 21.06 in
- Overall Width: 14.6 in
- Overall Depth: 8.2 in
- Input Voltage: 380/480 Vdc
- Output Voltage: 211-264 Vac
- Power Rating: 11400 W
- Input Current: 30.5 A
- Amperage Rating: 47.5 A
- Efficiency: 99.2% / 99%
- Frequency Rating: 60 Hz
- Cooling Type: Natural Convection
- Power Factor: 1
-
Temperature Rating: -40 to 60 deg F
