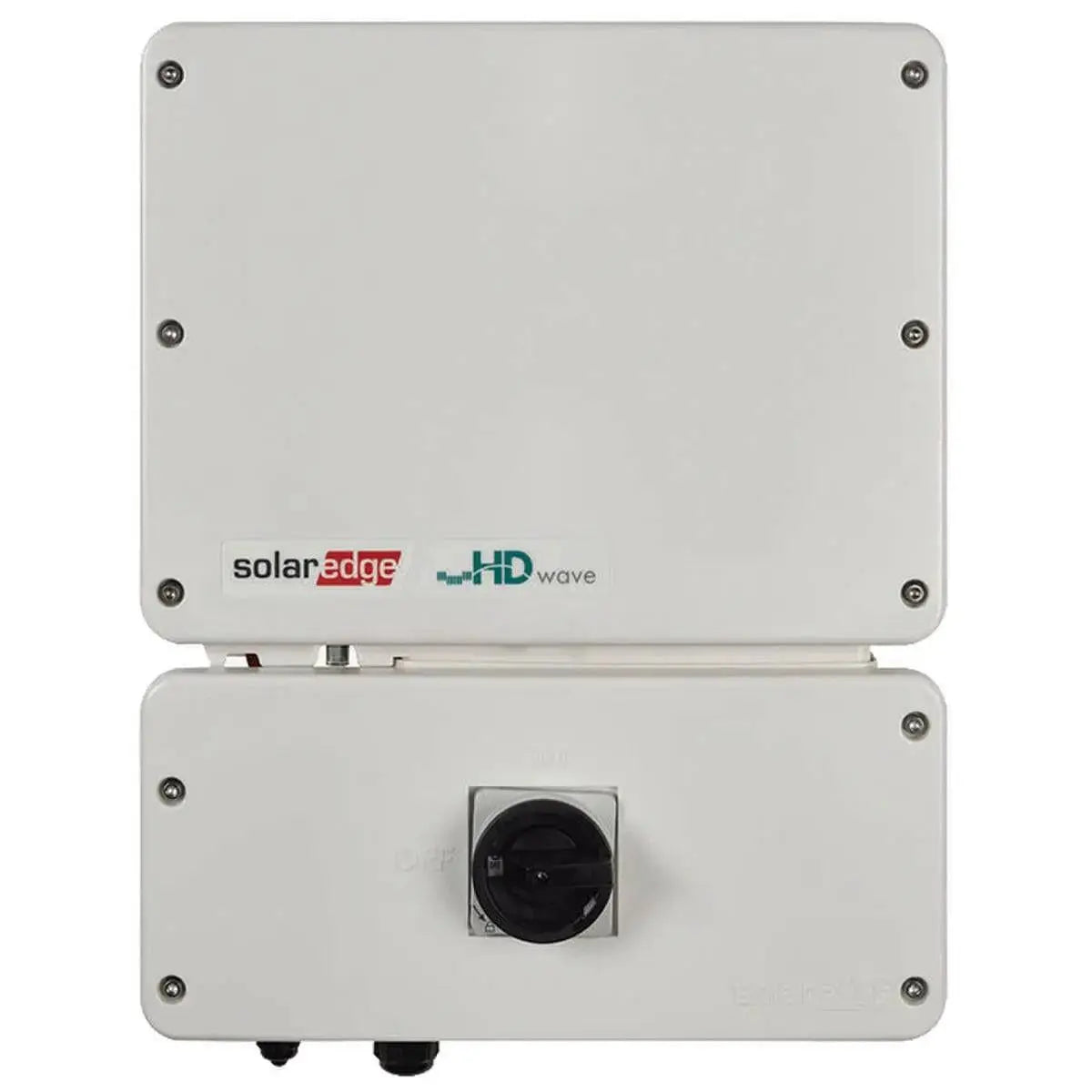

SolarEdge Technologies 11.4 kW at 240 V 10 kW at 208 V Home Wave Inverter with HD-Wave Technology

The SE11400H-USSNBBL15 Energy Hub Inverter is one of the newest offerings from SolarEdge that pairs the innovation of HD-Wave technology with the power of storage in a next generation home backup solution for higher 99% efficiency and greater flexibility. With this inverter, you will have one storage solution to back up an entire home, be ready for battery and EV charging with built-in energy monitoring and an overall flexible system to meet future energy storage needs. In addition to this, the SE11400H-USSNBBL15 offers 10300W of backup power.When you pair the SolarEdge SE11400H-USSNBBL15 Energy Hub Inverter with a battery and one of SolarEdge's Backup Interfaces (sold separately), you will have a DC-coupled solution that can keeps the whole home on even when the grid is down. When DC coupled with power-stacked batteries and the Backup Interface, the Energy Hub Inverter supports up to 200% DC oversizing and can power part of or the entire home, up to 200A, during grid outages. While also enabling fast and simple installation, this solution eliminates the requirement for a main panel upgrade or generation panel, even when connected to multiple inverters, batteries or generators. With built-in metering providing insight into actual energy consumption and production, smart energy upgrades can be easily made to meet evolving energy needs.

Features

• Optimized battery storage with HD-Wave technology
• Small, lightweight, and easy to install
• Record-breaking 99% weighted efficiency with 200% DC oversizing
• Modular design, future ready with optional upgrades to: Built-in consumption monitoring
• DC-coupled storage for full or partial home backup
• Direct connection to the SolarEdge smart EV charger
• With setapp configuration, rgm & 5-year cellular plan
• Integrated arc fault protection and rapid shutdown for NEC 2014-2023 per articles 690.11 and 690.12
• Fixed voltage inverter for longer strings
• Quick and easy inverter commissioning directly from a smartphone using SolarEdge SetApp
• Record-breaking 99% weighted efficiency
• Specifically designed to work with power optimizers


Documents: Specification Sheet
