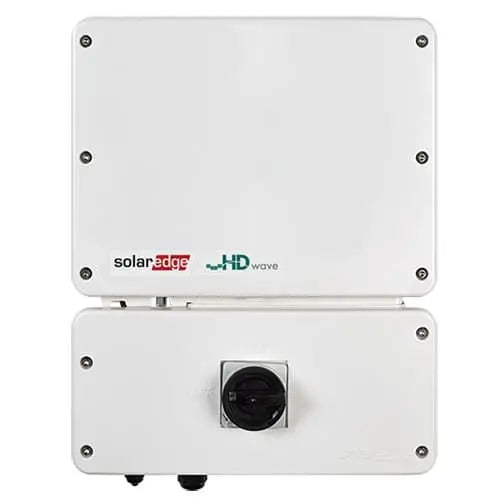

SolarEdge SE7600H-US Home Hub HD-Wave Single Phase Grid-Tied Inverter 7.6kW (SE-USE7600H-USMNBE78)
SolarEdge Home Hub Inverter – SE7600H-US
Model: SE-USE7600H-USMNBE78 | Brand: SolarEdge | Condition: New | Made in USA
The SolarEdge Home Hub SE7600H-US is a single-phase, grid-tied inverter with dual rating of 7.6kW on-grid / 12.5kW battery backup access. It is USA-manufactured and eligible for the Domestic Content enhanced federal income tax credit. The ultimate home energy manager in charge of PV production, battery storage, backup operation during a power outage, EV Charging, and smart energy devices.
Key Features
- ✅ USA Domestic Content Eligible – qualifies for enhanced federal income tax credit
- ⚡ Record-breaking 99% weighted efficiency with up to 200% DC oversizing
- 🔋 Dual rated: 7.6kW on-grid / 12.5kW battery backup
- 🏠 Able to start high LRA HVAC systems during backup operation
- 📡 Integrates seamlessly with SolarEdge Home Smart Energy Ecosystem via SolarEdge Home Network
- 📊 Module-level monitoring and visibility of battery status, PV production, and self-consumption data
- 🔧 Fast and easy installation – small and lightweight, with reduced commissioning time
- 🌧️ NEMA 4X-rated – for indoor and outdoor installations
- 🔌 Scalable solution supporting future homeowner needs
- 🛡️ Advanced safety: integrated arc fault protection (AFCI) and rapid shutdown (NEC 690.11 & 690.12)
- 🔩 Advanced reliability with automotive-grade components
- 📈 Embedded revenue grade production data, ANSI C12.20 Class 0.5
- ⚙️ Embedded Power Control System (PCS) – install larger systems while avoiding main panel upgrades
- 📶 Wi-Fi Antenna included | RS485 | AC RSD | w/ PCS, RGM, and Consumption Meter (Add CTs)
Technical Specifications – SE7600H-US
| Specification | Value |
|---|---|
| Maximum AC Power Output | 7,600W @ 240V / 6,600W @ 208V |
| AC Output Voltage (Nominal) | 208 / 240 Vac |
| AC Output Voltage Range | 183 – 264 Vac |
| AC Frequency Range | 59.3 – 60 – 60.5 Hz |
| Maximum Continuous Output Current | 32 A |
| Total Harmonic Distortion (THD) | < 3% |
| Power Factor | 1, adjustable -0.85 to 0.85 |
| Rated AC Power in Standalone (Backup) | 12,500W (configurable) |
| Max Continuous Output Current (Backup) | 52 A |
| Locked Rotor Amperage (LRA) | Up to 106 A |
| Maximum Input Voltage (DC) | 480 Vdc |
| Nominal DC Input Voltage | 380 Vdc |
| Maximum Input Short Circuit Current | 45 Adc |
| Maximum Inverter Efficiency | 99.2% |
| CEC Weighted Efficiency | 99% @ 240V |
| Maximum DC Input Power (PV) | 15,200W @ 240V / 13,200W @ 208V |
| Maximum DC Input Current (PV) | 40 Adc @ 240V / 35 Adc @ 208V |
| Number of DC PV Ports | 3 |
| Number of Battery Ports | 2 |
| Supported Battery Types | SolarEdge Home Battery 400V |
| Number of Batteries per Inverter | Up to 3 |
| Max Continuous Battery Power (Charge/Discharge) | 12,500W |
| Communication Interfaces | RS485, Ethernet, Cellular, Wi-Fi (optional), SolarEdge Home Network (optional) |
| Dimensions (H x W x D) | 21.06 x 14.6 x 8.2 in / 535 x 370 x 208 mm |
| Weight | 44.9 lb / 20.3 kg |
| Noise | < 50 dBA |
| Cooling | Natural Convection |
| Operating Temperature Range | -40°F to +140°F / -40°C to +60°C |
| Protection Rating | NEMA 4X |
| AC Input Conduit / AWG Range | 1" max / 14–4 AWG |
| DC Input Conduit / AWG Range | 1" max / 14–6 AWG |
Standards & Compliance
- Safety: UL 1741, UL 1741SA, UL 1741SB, UL 1699B, CSA 22.2#107.1, C22.2#330, C22.3#9, ANSI/CAN/UL 9540
- Grid Connection: IEEE1547-2018, IEEE-1547.1, Rule 21, Rule 14H
- Emissions: FCC Part 15 Class B
- Revenue Grade Metering: ANSI C12.20 Class 0.5
Warranty
12-Year Manufacturer Warranty from SolarEdge.
Product Datasheet
📄 Download Official SolarEdge Home Hub Inverter Datasheet (PDF)
