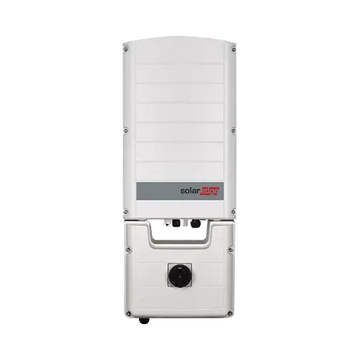

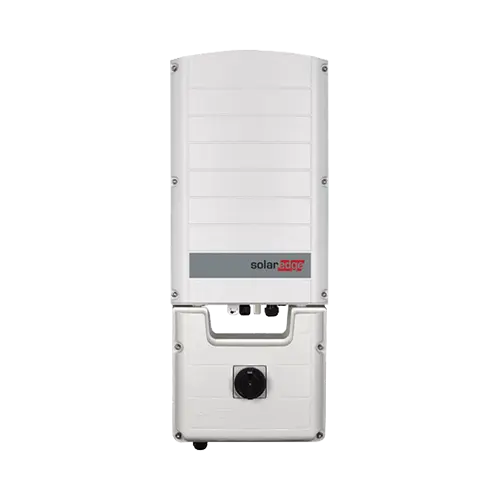

SolarEdge SE10K-USR2IBNZ4 10 kW 120/208 VAC 3-Phase Inverter
The SolarEdge SE10K-USR2IBNZ4 is a robust 10 kW 120/208 VAC 3-phase inverter engineered for commercial-scale solar systems. Designed for seamless integration with SolarEdge power optimizers, it features intuitive commissioning via SetApp and delivers advanced protection and monitoring capabilities.
Key Features
-
Smart and simple commissioning
Configure and commission directly from your smartphone using SolarEdge’s SetApp no PC required. -
Superior efficiency and extended string lengths
Fixed-voltage design ensures high string voltage and optimized DC-to-AC conversion. -
Comprehensive safety protections
Includes AC and DC Type II surge protection for lightning resilience, integrated arc-fault protection (AFCI), rapid shutdown (RSD) compliant with NEC 2014, 2017, and 2020 (articles 690.11 & 690.12), and a built-in DC safety switch. -
Module-level monitoring
Supports Ethernet, RS485, wireless, or optional cellular connection for real-time system visibility. -
Grid compliance and certifications
Compliant with UL1741 SA/SB, UL1699B, IEEE 1547-2018, CPUC Rule 21, and fits 120/208 V grids with selectable Y or Delta wiring configurations. -
Rugged, installer-friendly design
With a weather-tight NEMA 3R rating and compact form—31.8 × 12.5 × 11.8 in (808 × 317 × 300 mm)—it’s easy to mount indoors or outdoors. Fan-cooled and lightweight at just 78.2 lb (35.5 kg).
Technical Specs
| Specification | SE10K-USR2IBNZ4 |
|---|---|
| Rated AC Output Power | 10,000 W (10 kW) |
| Max DC Input Power | 17,500 W |
| Efficiency | ~97 % CEC-weighted |
| AC Output Current (per phase) | 27.8 A |
| Operating Temperature | –40°F to +140°F (–40°C to +60°C) |
| Dimensions (HxWxD) | 31.8 × 12.5 × 11.8 in (808 × 317 × 300 mm) |
| Weight (with switch) | 78.2 lb / 35.5 kg |
| Warranty | Standard 12 years (extendable) |
Why It's a Smart Choice
-
Installer-friendly: Lightweight, compact footprint; SetApp turns your smartphone into a commissioning tool.
-
Secure and compliant: Packed with safety features—surge protection, AFCI, RSD—and certified for regulatory standards.
-
Optimized for performance: Works seamlessly with SolarEdge optimizers; advanced monitoring capabilities deliver granular insights.
-
Durable for real-world environments: NEMA 3R rating and broad operating range ensure reliable performance indoors or outdoors.
Document: Specification Sheet
