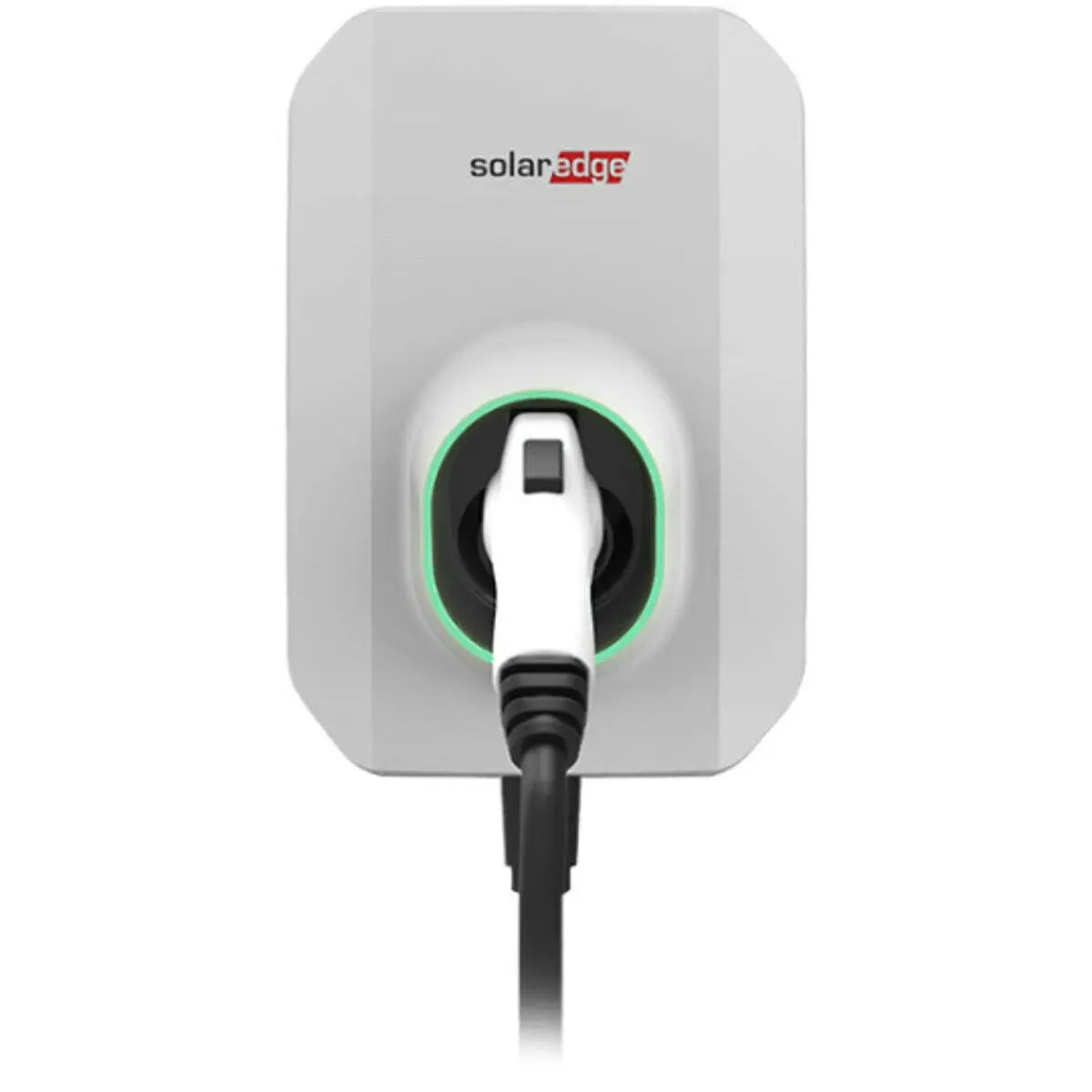

SolarEdge SE-EV-KIT-V3UPG-01 Smart EV Charger Boost Kit

Use the SolarEdge Smart EV Charger Boost kit to add terminal blocks to any HD wave series SolarEdge inverter. These terminals allow the Smart EV Charger to attach to the inverter for optimized EV charging performance, even on a sub-50 amp breaker.

Features

• Highlights - Wi-Fi enabled, level 2 charging station, with up to 40A (9.6kW) charging power
• Full charging control, including remote activation, smart scheduling, and LED charging status. Industry-leading 5-year warranty
• Rated for indoor or outdoor use
• Plug-in unit, easily modified to support hardwired installations
• Suitable for use with or without a SolarEdge PV system
• Optimized Charging - Charges EV with 100% renewable energy by using excess-solar mode
• Synchronizes with the full SolarEdge ecosystem (PV, StorEdge, and smart home devices), all managed by a single mobile app. Ideal in cases where the inverter is located far from the vehicle


Specifications

• Technology: EV Charging Kit
• EV Charger Connector Dimensions: 12 in x 7.3 in x 6 in
• EV Charger Weight: 6.3 lb
• EV Charger Cable Length: 25 ft
• EV Charge Cable Weight: 12.5 lb
• Charging Mode: AC Level 2
• Rated AC Power Output: 9.6 kW
• Maximum Continuous Output Current: 40 AAC at 240 VAC
• Nominal AC Output Voltage: 240 VAC
• Nominal AC Frequency: 60 Hz
• Ground Fault Detection Threshold: 5 mA
• Supported Communication Interfaces:
  • Wi-Fi (Built-in Antenna Included)
  • Ethernet
  • RS485 & Cellular (Optional)
• Features with SolarEdge Inverter:
  • Smart Energy Management: Controlled Excess Solar Charging
• EV Charger Status LEDs, Fault Indicator: Yes
• EV Charger Unplugging Detection: Yes, Current Termination According to SAE J1772
• EV Charger Ground Connection Monitoring: Yes, Continuous
• EV Charger Configuration:
  • Installer Commissioning via SetApp
  • Homeowner Configuration Controls & Monitoring via mySolarEdge App
• Standards: UL Listed, IEC, FCC, RoHS Compliant
• Warranty: 25 Years
