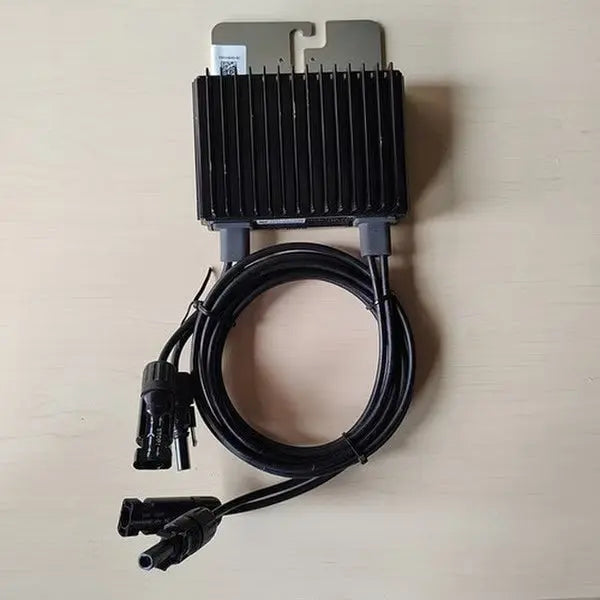

SolarEdge S500B Power Optimizer Microinverters

Maximize your solar panel efficiency with precision and safety.

The SolarEdge S500B Power Optimizer is designed to enhance the performance of your photovoltaic (PV) system by ensuring each solar module operates at its maximum power point. With advanced module-level MPPT technology and industry-leading safety features, this optimizer boosts energy yield while supporting NEC 2014 rapid shutdown compliance.

🔧 Key Features

• High Efficiency: Achieves up to 99.5% peak efficiency for optimal energy harvest.
• Module-Level MPPT: Maximizes power output from each individual panel, reducing the impact of shading and mismatch.
• Built-In Safety: Automatic shutdown to 1V when disconnected for safer installation and maintenance.
• Rugged Construction: IP68/NEMA 6P-rated enclosure protects against dust, water, and extreme weather.



📐 Technical Specifications

• Rated Input DC Power: 500W
• MPPT Operating Voltage: 12.5V – 105V
• Max Input Voltage (Voc): 125V
• Max Short Circuit Current (Isc): 14.5A
• Max Output Current: 15A
• Max Output Voltage: 80V
• Safety Output Voltage: 1V ± 0.1V
• Efficiency: Up to 99.5%
• Operating Temp Range: -40°C to +85°C
• Ingress Protection: IP68 / NEMA 6P
• Dimensions: 129mm (W) × 153mm (L) × 49.5mm (H)
• Weight:  2.06lbs



🔗 Compatibility

• Fully compatible with SolarEdge inverters, especially models SE16K and above.
• Ideal for both residential and commercial PV installations.



📦 What's in the Box

• 1x SolarEdge S500B Power Optimizer
• Integrated cables and connectors for plug-and-play installation
• User manual and safety guide
