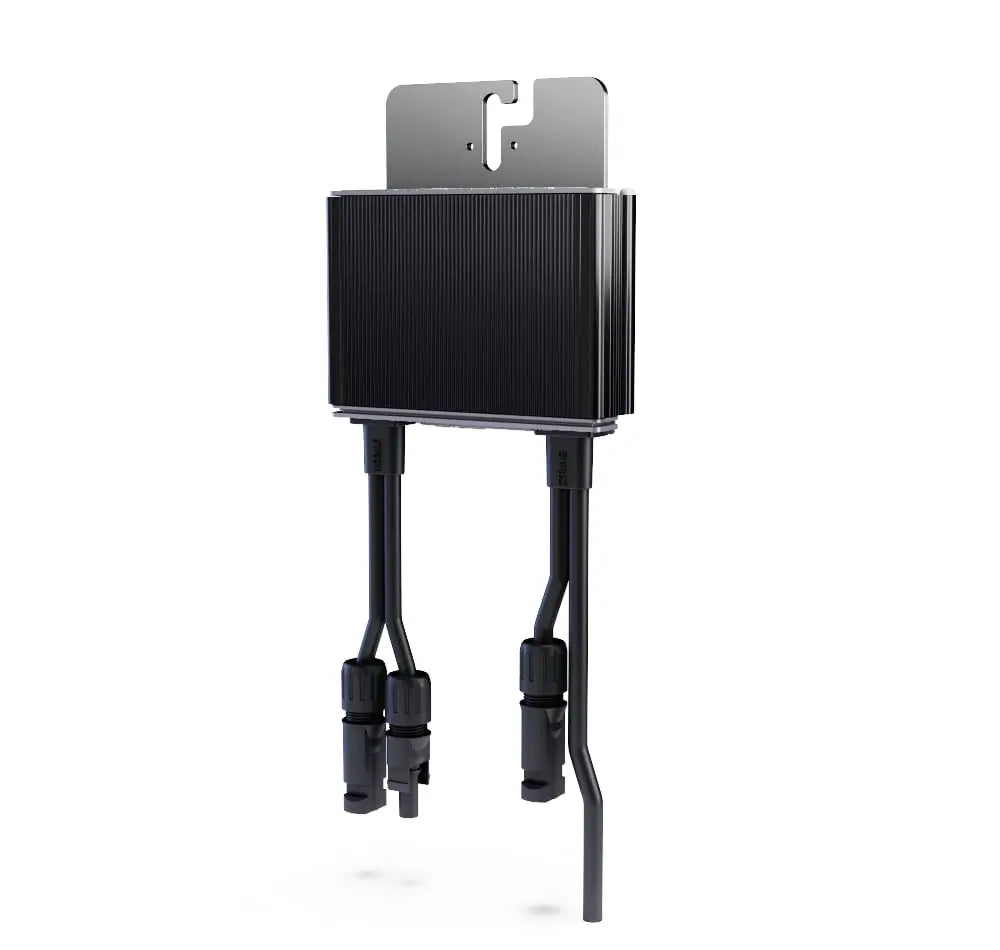

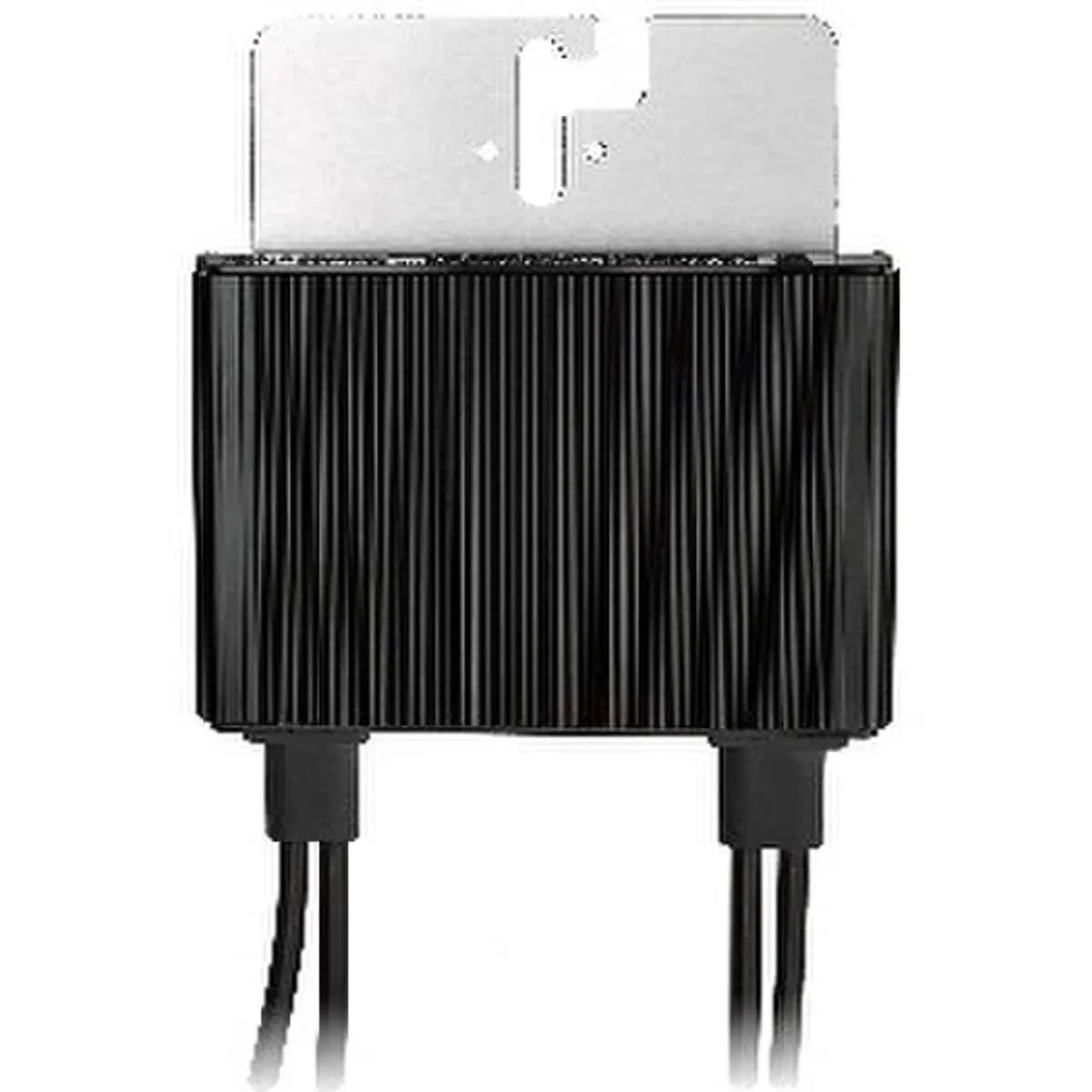

SolarEdge 500 W Power Optimizer

Maximize the amount of energy each solar module produces and mitigate all types of module mismatch-loss, from manufacturing tolerance to partial shading and aging.

Features

• Enabling PV power optimization at the module level
• Specifically designed to work with SolarEdge residential inverters

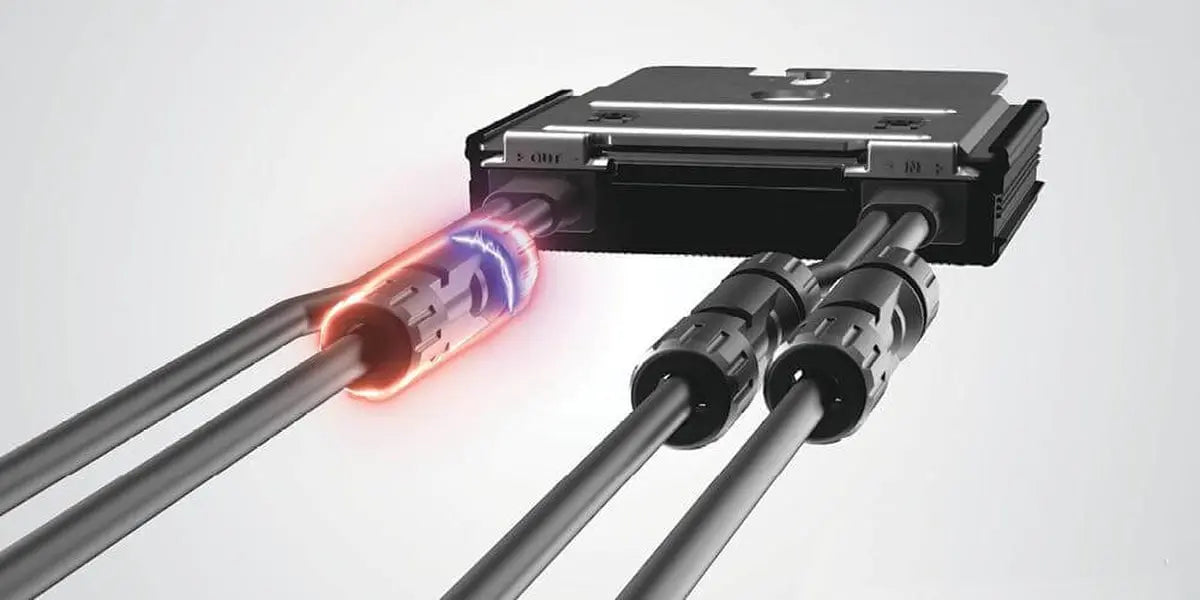

• Detects abnormal PV connector behavior, preventing potential safety issues
• Module-level voltage shutdown for installer and firefighter safety
• Superior efficiency (99.5%)
• Mitigates all types of module mismatch loss, from manufacturing tolerance to partial shading

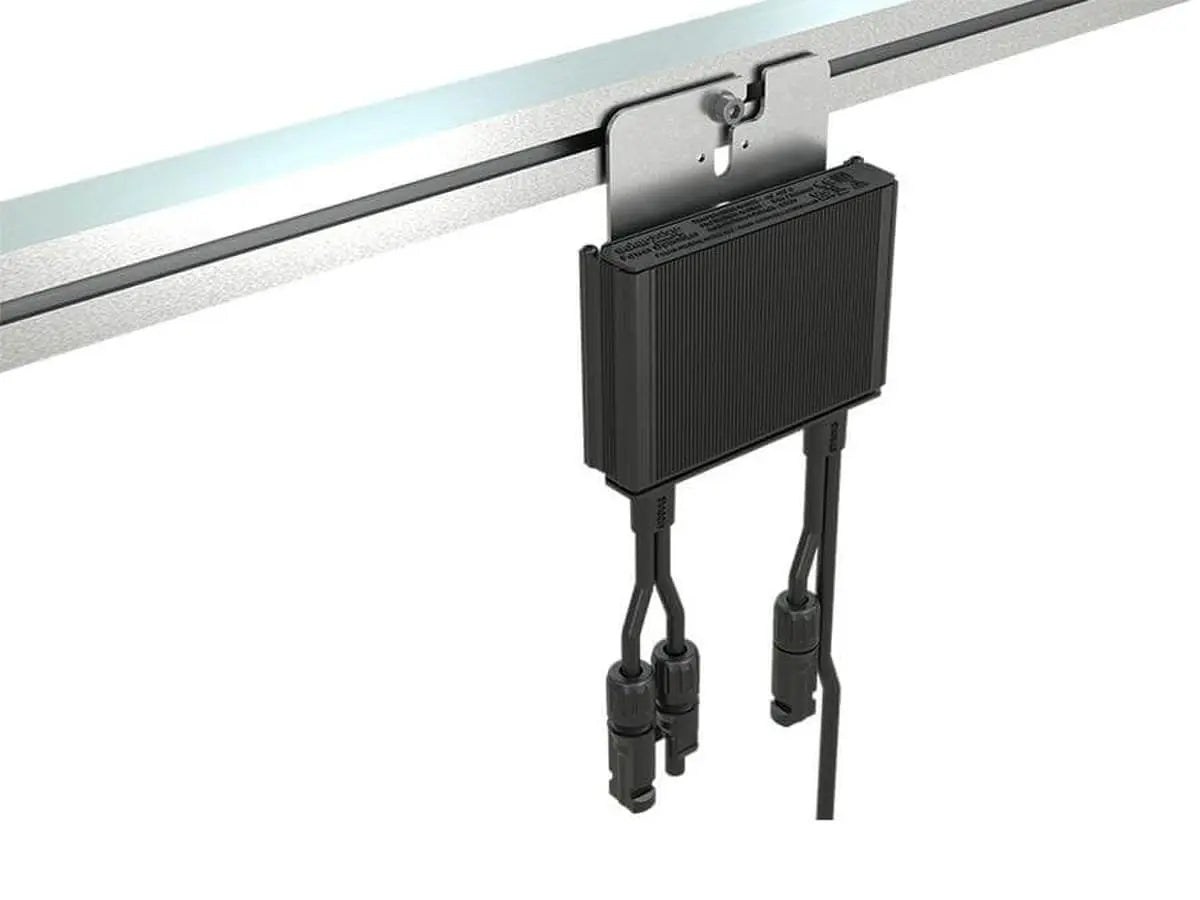

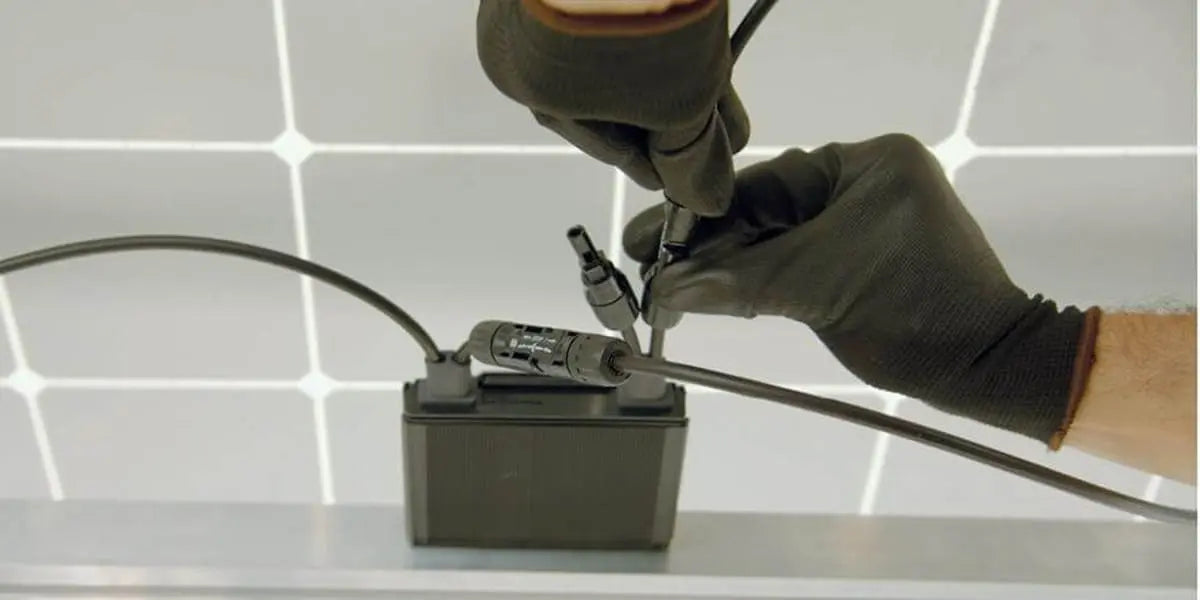

• Faster installations with simplified cable management and easy assembly using a single bolt
• Flexible system design for maximum space utilization
• Compatible with bifacial PV modules


Specifications

• Rated Input DC Power: 500 W
• Absolute Maximum Input Voltage: 60 VDC
• MPPT Operating Range: 8-60 VDC
• Maximum Short-Circuit Current (ISC): 14.5 ADC
• Maximum Efficiency: 99.5%
• Weighted Efficiency: 98.8%
• Over Voltage Category: Category II
• Maximum Output Current: 15 ADC
• Maximum Output Voltage: 60 VDC
• Safety Output Voltage Per Power Optimizer: 1 +/- 0.1 VDC
• Standards: EMC - FCC Part 15 cETLus Listed B, IEC61000-6-2, IEC61000-6-3, CISPR11, EN-55011, Safety IEC62109-1 (cETLus Listed II Safety), RoHS Compliant, VDE-AR-E 2100-712:2018-12
• Maximum Allowed System Voltage: 1000 VDC
• Input Connector: (5) MC4
• Input Wire Length: 0.1 m
• Output Connector: MC4
• Output Wire Length: 2.3 m
• Temperature Rating: -40 to 85 deg C / -40 to 185 deg F
• Enclosure Rating: IP68
• Relative Humidity: 0-100%
• Warranty: 25 Years
• Weight: 1.6 lb
