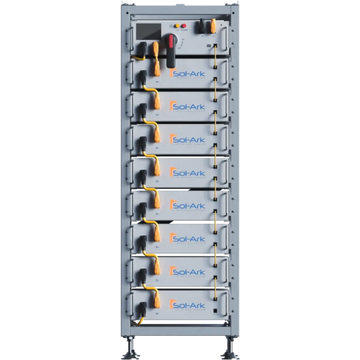

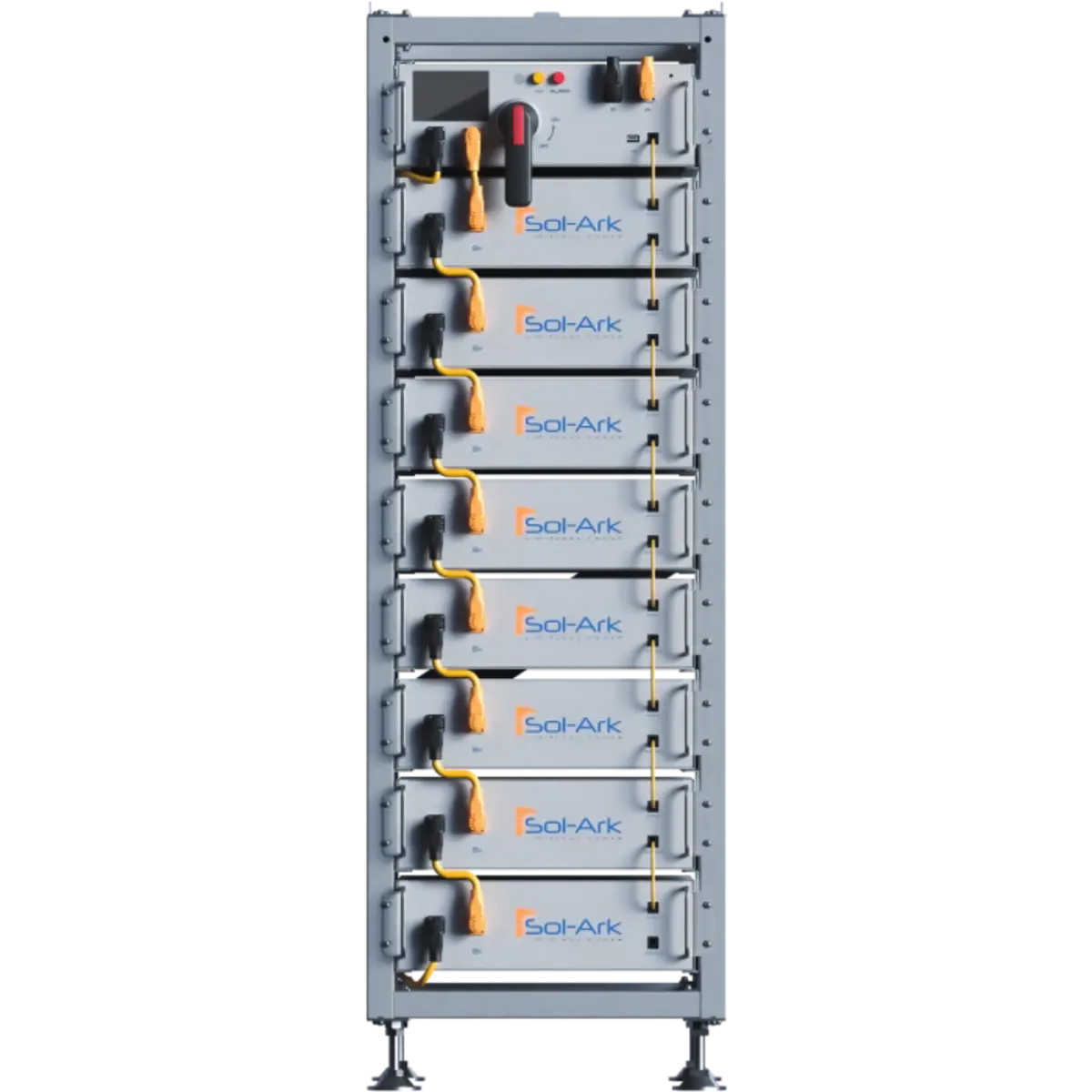

Sol-Ark High Voltage 60kWh Battery Bank - IP55 Outdoor - Use with Sol-Ark 60K

Comprehensive Overview of the Sol-Ark 60kWh Battery Bank

The L3 Series Limitless Lithium™ is a high voltage lithium-ion battery designed for expandable energy storage and reliable backup power. The modular configuration of the L3 allows for expansion through the addition of battery modules, each capable of 5.12 kWh storage Capacity. The capacity of the L3 system can be expanded up to 40.96 kW and 61.44 kWh, for the L3 HV-40 kWh and L3 HV-60 kWh models respectively.

Features

• Prismatic cells offer maximum reliability, efficiency, and safety
• Automatic configuration of batteries and BMS
• 5 kW packs include built-in fire suppression
• Supports USB and wifi upgrade (optional), remote upgrade
• Modular batteries can easily be connected in parallel or series to increase capacity or voltage


Specifications

• System Voltage:
  • Nominal Voltage: 614.4 V
  • Operating Voltage: 499.2-700 V
• Battery Chemistry: Lithium Iron Phosphate
• Battery Cabinet Capacity: 61.44 kWh
• System Usable Energy: 55.30 kWh
• Inverter Data:
  • Grid/Gen/Load OCPD Rating: 200 A
  • Backup Capability Per Inverter: 60 kWac
  • Maximum DC-Coupled Solar Per Inverter: 78 kW AC
  • Maximum AC-Coupled Solar Per Inverter: 125 kW AC
  • Maximum Battery Cabinets Per Inverter: 6
  • Minimum Battery Cabinets Per Inverter: 1
  • Inverter Stacks in Parallel: 12
• Battery & Inverter Efficiency:
  • Recommended Depth of Discharge: 90%
  • Charge/Discharge Current:
    • Recommended: 50 A
    • Nominal/Continuous: 100 A
    • Peak Discharge (2 mins, 25°C): 125 A
  • Combined Battery + Inverter Efficiency: 90% (25°C, 0.5C)
• Operating Conditions:
  • Operating Temperature: -4 to 131°F
  • Humidity: 5-85% RH
  • Storage Temperature: -4 to 95°F
  • Altitude: Suitable for high altitudes
  • Seismic Zone: 4
• Communication & Battery Modules:
  • Communication Port: CAN2.0/RS485
  • Battery Modules in Series Per Cabinet: 12
  • Battery Module Energy: 5.12 kWh
  • Battery Module Nominal Voltage: 51.2 V
  • Battery Module Nominal Capacity: 100 Ah
• Cycle Life: >6000 Cycles (77°F ±7°F, 0.5 C/0.5 C, EOL70%)
• Standards: UL9540, UL9540a, UN38.3, CEC, JA12, IEC62477, IEC62619, VDE-AR-N 4105, IEC62109, VDE2510-50
• Warranty: 10 Years


Documents

• Brochure

Durable Outdoor Design with IP55 Rating

The Sol-Ark 60kWh battery bank boasts a durable construction with an IP55 rating, ensuring reliable performance in various outdoor environments. This high voltage battery bank resists dust and water splashes, making it an ideal solution for off-grid or harsh settings. Its rugged enclosure protects sensitive components, providing peace of mind for solar energy users seeking longevity and consistent energy storage. When paired with the Sol-Ark 60K inverter system, it ensures seamless integration and dependable power supply regardless of weather conditions.

High Capacity and Efficient Energy Storage

Engineered for substantial energy capacity, the Sol-Ark 60kWh battery bank efficiently stores large amounts of renewable energy. This capability supports extended power availability, reducing dependence on grid electricity and maximizing solar energy use. Its high voltage design promotes faster charging and discharging cycles, optimizing performance for residential or commercial applications. Seamlessly compatible with the Sol-Ark 60K system, it enables users to harness and store clean energy effectively, enhancing system reliability and energy independence.

Compatibility and Integration with Sol-Ark 60K

Specifically designed for use with the Sol-Ark 60K inverter, the Sol-Ark 60kWh battery bank offers smooth system integration and easy scalability. This synergy empowers users to build robust solar energy systems tailored to their specific power needs. The battery bank supports advanced battery management systems (BMS) to monitor performance and maintain optimal condition. With plug-and-play installation, this high voltage battery bank simplifies setup while delivering high efficiency and safe operation for long-term renewable energy storage.
