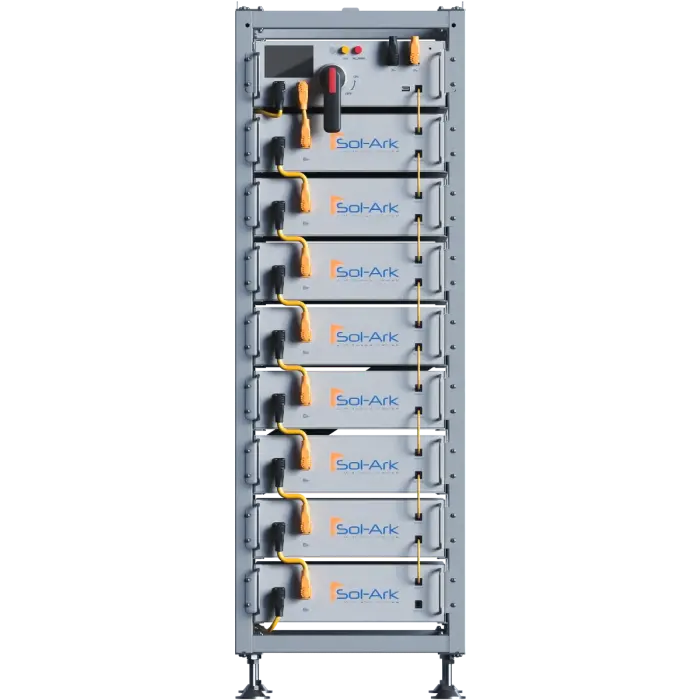

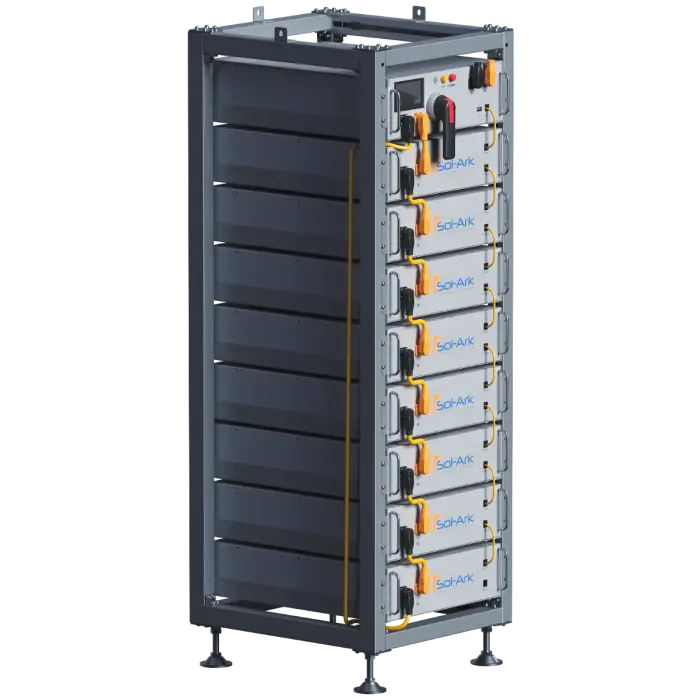

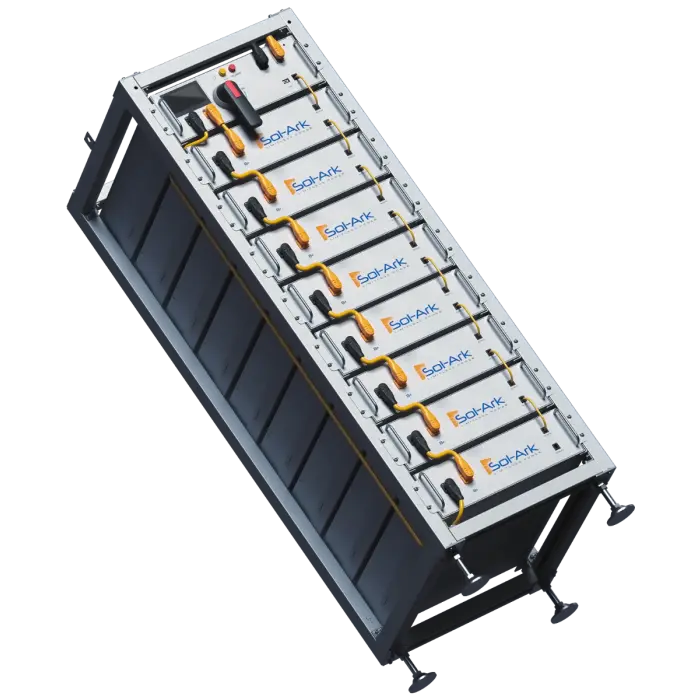

Sol-Ark High Voltage 60kWh Battery Bank - IP20 Indoor - Use with Sol-Ark 60K
Commercial-Grade Energy Storage Built to Scale
The Sol-Ark L3 Series LimitLess Lithium™ High Voltage 60kWh Battery Bank (IP20 Indoor) is a premium, modular lithium-ion energy storage system engineered for commercial, industrial, and utility-scale solar installations. Designed exclusively for use with the Sol-Ark 60K inverter, this battery bank delivers unmatched scalability, reliability, and performance for demanding energy storage applications.
Whether you're building a large-scale commercial backup system or a utility-grade solar-plus-storage project, the L3 HV-60 gives you the flexibility to expand capacity as your needs grow — all from a single, trusted platform.
📄 Download Official Datasheet (PDF) | 📘 Installation & User Manual (PDF)
Why Choose the Sol-Ark L3 HV-60?
- 61.44 kWh Gross Capacity Per Cabinet — Industry-leading storage density for commercial and utility-scale projects
- Massively Scalable — Stack up to 36 units for up to 2.2 MWh of total storage capacity
- Modular Design — Add 5.12 kWh battery modules individually to expand capacity as your project grows
- High Voltage Architecture — Optimized for maximum efficiency with the Sol-Ark 60K inverter
- IP20 Indoor Rated — Purpose-built for indoor installations in commercial facilities, data centers, and utility enclosures
- Proven Commercial Platform — Backed by Sol-Ark's industry-leading warranty and support infrastructure
Technical Specifications
| Specification | Details |
|---|---|
| Model | L3 HV-60 (IP20 Indoor) |
| Gross Capacity | 61.44 kWh per cabinet |
| Usable Capacity | ~60 kWh |
| Module Capacity | 5.12 kWh per module |
| Max System Capacity | 2.2 MWh (36 units stacked) |
| Battery Chemistry | Lithium-Ion (High Voltage) |
| Max Charge/Discharge Rate | 1C (up to 2,000m altitude) |
| Compatible Inverter | Sol-Ark 60K |
| Enclosure Rating | IP20 (Indoor Use Only) |
| Configuration | Modular, expandable |
| Total Weight (HV-60) | 773 kg (1,705 lb) |
| Certifications | UL Listed |
Ideal Applications
- Commercial & industrial solar-plus-storage systems
- Utility-scale energy storage projects
- Critical backup power for facilities and data centers
- Demand charge reduction & peak shaving
- Microgrids and off-grid commercial installations
Ready to scale your energy storage? The Sol-Ark L3 HV-60 is available now and ships fast from our Charlotte, NC distribution center. Contact our team for bulk pricing, system design support, and project consultation.
