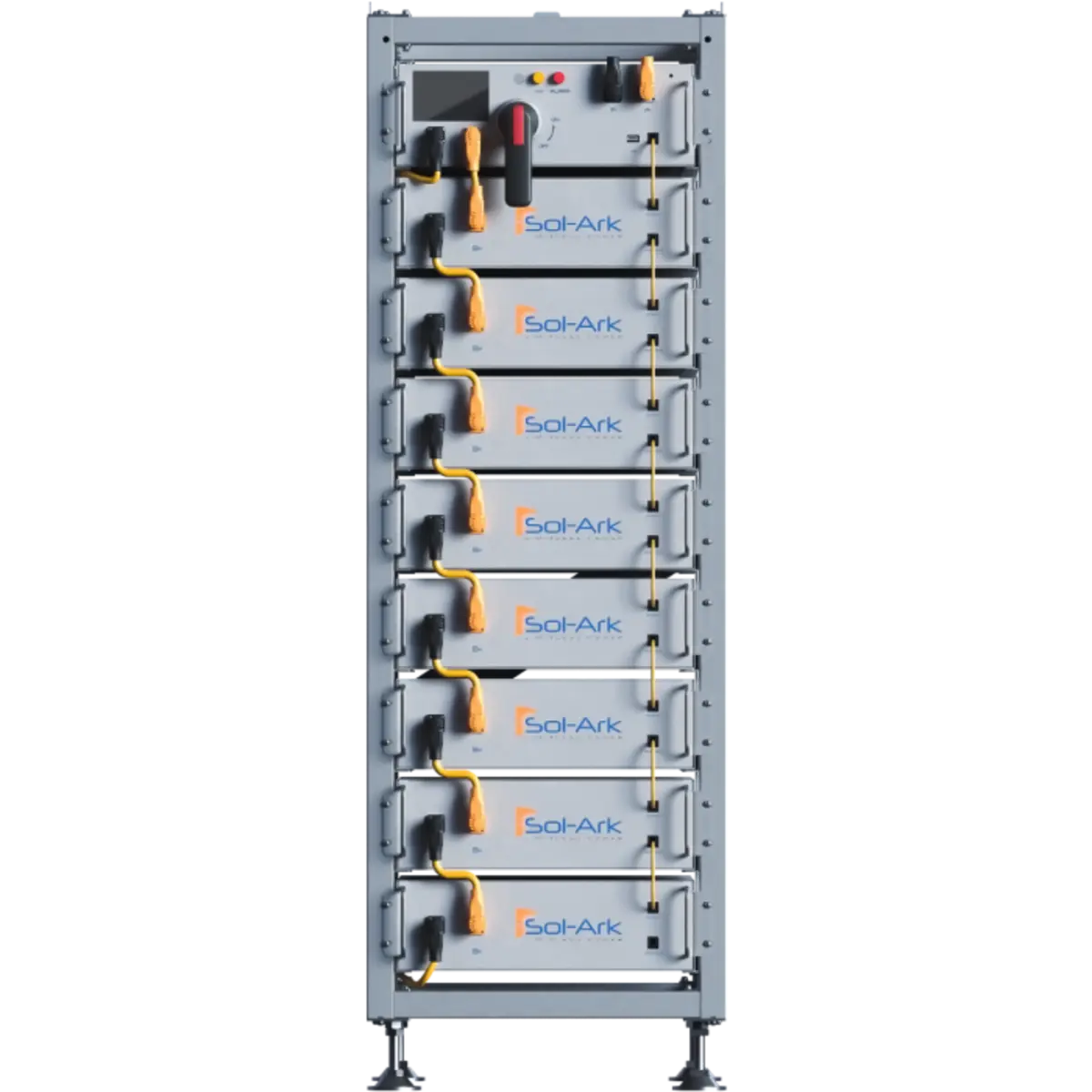

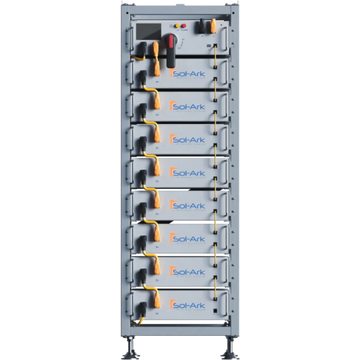

Sol-Ark High Voltage 60kWh Battery Bank - IP20 Indoor - Use with Sol-Ark 60K

The L3 Series Limitless Lithium™ is a high voltage lithium-ion battery designed for expandable energy storage and reliable backup power. The modular configuration of the L3 allows for expansion through the addition of battery modules, each capable of 5.12 kWh storage Capacity. The capacity of the L3 system can be expanded up to 40.96 kW and 61.44 kWh, for the L3 HV-40 kWh and L3 HV-60 kWh models respectively.

Features

• Prismatic cells offer maximum reliability, efficiency, and safety
• Automatic configuration of batteries and BMS
• 5 kW packs include built-in fire suppression
• Supports USB and wifi upgrade (optional), remote upgrade
• Modular batteries can easily be connected in parallel or series to increase capacity or voltage


Specifications

• System Voltage:
  • Nominal Voltage: 614.4 V
  • Operating Voltage: 499.2-700 V
• Battery Chemistry: Lithium Iron Phosphate
• Battery Cabinet Capacity: 61.44 kWh
• System Usable Energy: 55.30 kWh
• Inverter Data:
  • Grid/Gen/Load OCPD Rating: 200 A
  • Backup Capability Per Inverter: 60 kWac
  • Maximum DC-Coupled Solar Per Inverter: 78 kW AC
  • Maximum AC-Coupled Solar Per Inverter: 125 kW AC
  • Maximum Battery Cabinets Per Inverter: 6
  • Minimum Battery Cabinets Per Inverter: 1
  • Inverter Stacks in Parallel: 12
• Battery & Inverter Efficiency:
  • Recommend Depth of Discharge: 90%
  • Charge/Discharge Current:
    • Recommended: 50 A
    • Nominal/Continuous: 100 A
    • Peak Discharge (2 mins, 25°C): 125 A
  • Combined Battery + Inverter Efficiency: 90% (25°C, 0.5C)
• Operating Conditions:
  • Operating Temperature: -4 to 131°F
  • Humidity: 5-85% RH
  • Storage Temperature: -4 to 95°F
  • Altitude: Suitable for high altitudes
  • Seismic Zone: 4
• Communication & Battery Modules:
  • Communication Port: CAN2.0/RS485
  • Battery Modules in Series Per Cabinet: 12
  • Battery Module Energy: 5.12 kWh
  • Battery Module Nominal Voltage: 51.2 V
  • Battery Module Nominal Capacity: 100 Ah
• Cycle Life: >6000 Cycles (77°F ±7°F, 0.5 C/0.5 C, EOL70%)
• Standards: UL9540, UL9540a, UN38.3, CEC, JA12, IEC62477, IEC62619, VDE-AR-N 4105, IEC62109, VDE2510-50
• Warranty: 10 Years
