Sol-Ark 15K + HomeGrid Stack'd Series LFP Bundle (SA-Limitless-15K, HG-4-STACK)

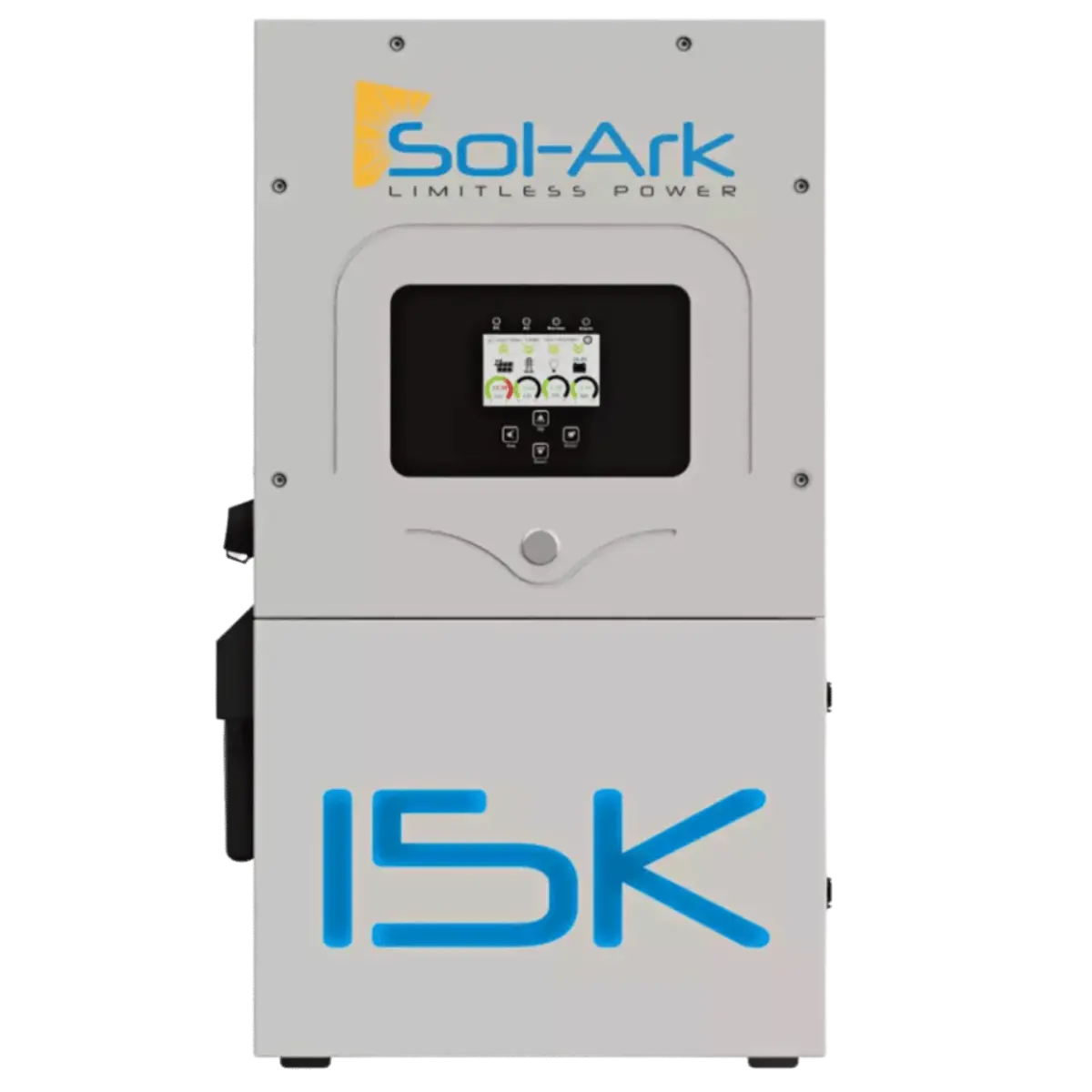

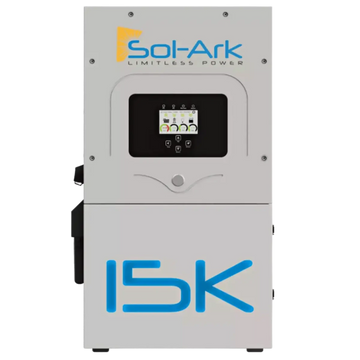

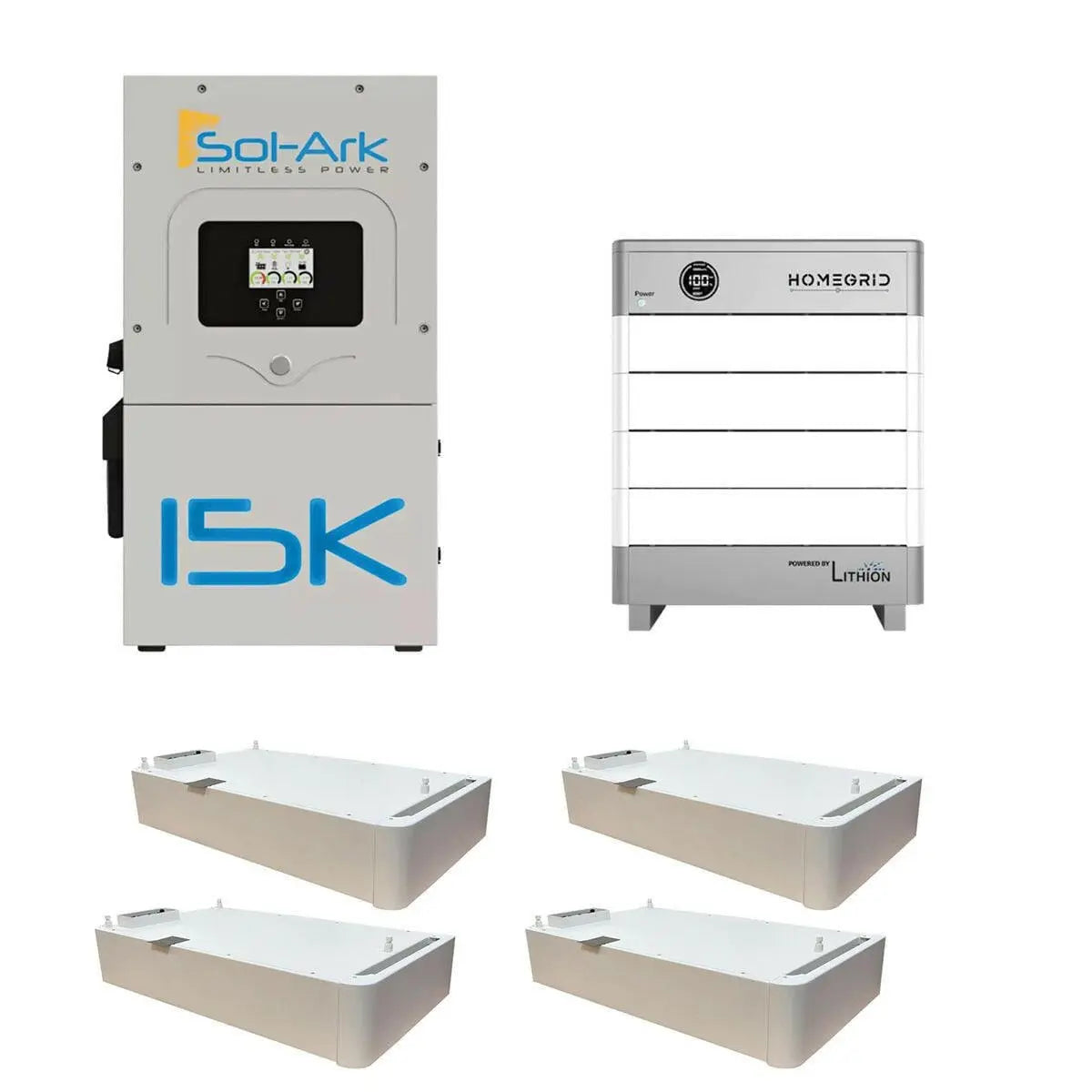

The Sol-Ark 15k is a great choice stackable solar/hybrid inverter! It's an all-in-one, pre-wired inverter with built-in charge controllers and many other built-in features fitted as standard. It is flexible, efficient, and affordable. Everything you need comes in one box, keeping your cost LOW and installation SIMPLE. 10-year Standard Warranty. This home battery is modular with 4.8 kWh increments, providing a capacity range of 9.6-38.4 kWh per Stack. This also allows for easy servicing and future expansion. With continuous output at up to 15 kW, and a surge of up to 24 kW for 10 seconds, true full-home backup is here. 1 Base, 4 4.8kWh Modules, total 19.2kWh Capacity. The new 15K inverter brings a new level of power and capability boasting 15,000W of continuous AC power, robust surge power (up to 24,000W (10 sec.)) as well as having three on-board MPPT controllers and two 200A battery breakers. The SA-Limitless-15K is also scalable in both 120V/240V split phase and 120V/208V 3 phase service voltages and can stack up to twelve (12) units in parallel. This home battery is modular with 4.8 kWh increments, providing a capacity range of 9.6-38.4 kWh per Stack. This also allows for easy servicing and future expansion. With continuous output at up to 15 kW, and a surge of up to 24 kW for 10 seconds, true full-home backup is here. 1 Base, 4 4.8kWh Modules, total 19.2kWh Capacity. Compatible with: Sol-Ark, Schneider and Outback.

Features

• High Capacity 38.4kWh - Up to 10 units in parallel
• 10 year Warranty - 20 year serviceable

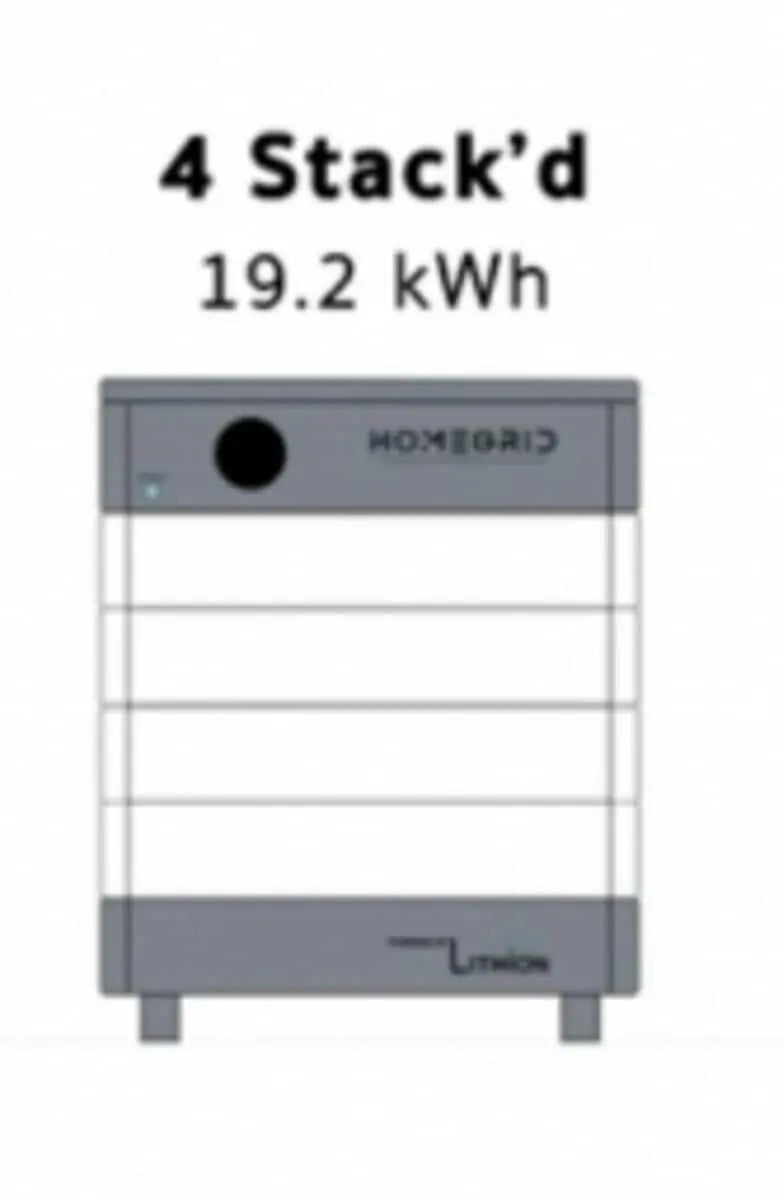

• Modular Design - Each module has a capacity of 4.8kWh, with each Stack supporting 2-8 modules
• High Power 15kW - Whole home backup
• Live Communications - Real time display, mobile access, established closed-loop communications
• Safe for Home & Environment - Cobalt Free, low voltage UL 1642, UL 1973, UN 38.3
• Specifications

• S

  Inverter Dimensions:

  • Height: 31.8 in
  • Width: 19.4 in
  • Depth: 12 in

  Durarack Enclosure Dimensions:

  • Width: 29.29 in
  • Height: 41.34 in
  • Depth: 18.03 in

  PV Input (DC) Data:

  • Maximum Allowed PV Power (STC): 19,500 W
  • Start-Up Voltage: 125 V
  • Maximum DC Input Voltage: 500 V
  • Maximum Operating Input Current Per MPPT: 26 A (Self-Limiting)
  • Nominal Voltage Range: 175-425 V
  • Number of MPPT Trackers: 3
  • Number of PV Strings Per MPPT: 2

  Battery Input (DC) Data (Lead-Acid or Li-Ion):

  • Battery Technologies: Lead-Acid or Li-Ion
  • Nominal DC Voltage: 48 V
  • Operating Voltage Range: 43-63 V
  • Battery Capacity: 50-9900 Ah
  • Maximum Battery Charge/Discharge Current: 275 A
  • Charging Controller: 3-Stage with Equalization
  • Grid to Battery Charging Efficiency: 96%
  • External Battery Temperature Sensor (BTS): Included
  • Current Shunt for Accurate %SOC: Integrated
  • External Gen Start (Based on Voltage or %SOC): Included
  • BMS Communication: CANBus & RS485

  AC Output Data:

  • Nominal AC Voltage: 120/240 V, 120/208 V, 220 V
  • Grid Frequency: 50/60 Hz
  • Real Power (Maximum Continuous): 15,000 W
  • Maximum Output Current: 62.5 A
  • Real Power (Batteries Only, No PV): 12,000 W (50 A at 240 V)
  • Peak Apparent Power (10 s, Off-Grid): 24,000 VA
  • Peak Apparent Power (100 ms, Off-Grid): 30,000 VA
  • Maximum Output Fault Current (5 s): 94 A with PV, 75 A (Batteries Only)
  • Maximum Output Fault Current (100 ms): 120 A
  • Maximum Grid Passthrough Current: 200 A
  • Power Factor Output Range: +/- 0.8
  • Backup Transfer Time: 5 ms
  • CEC Efficiency: 96.5%
  • Maximum Efficiency: 97.5%
  • Design (DC to AC): Transformerless DC
  • Stackable: Up to 12 units
  • Idle Consumption (Typical-No-Load): 60 W

  Integrated Features:

  • PV DC Disconnect Switch (NEC 240.15): Integrated
  • Ground Fault Detection (NEC 690.5): Integrated
  • PV Rapid Shutdown Control (NEC 690.12): Integrated
  • PV Arc Fault Detection (NEC 690.11): Integrated
  • PV Input Lightning Protection: Integrated
  • PV String Input Reverse Polarity Protection: Integrated
  • AC Output Breaker (200 A): Integrated
  • Battery Breakers/Disconnects (200 A x 2): Integrated
  • Surge Protection (DC Type II/AC Type II): Included
  • Ambient Temperature Rating: -40 to 60°C
  • Enclosure Rating: IP65 / NEMA 3R
  • Noise Rating: <30 dB

  LFP Battery Data:

  • Number of Modules: 4
  • Total Energy Capacity: 19.2 kWh
  • Continuous Power Output: 15 kW
  • Surge Power (10 s): 24 kW
  • Battery Type: Lithium Iron Phosphate (LiFePO4)
  • Capacity: 400 Ah
  • Nominal DC Voltage: 48 V
  • DC Voltage Range: 46-56 V
  • Recommended Charge Current: 312.5 A
  • Maximum Discharge Current (Continuous): 312.5 A
  • Maximum Pulse Current DC (10 s): 500 A
  • Charge Temperature: 32-113°C
  • Discharge Temperature: 14-140°C
  • Enclosure Rating: IP55
  • Mounting Options: Floor Standing
  • Service Plan: 20 Years Serviceable
  • Scalability: Units in Parallel
  • Communication: CAN/RS485
  • Efficiency: >98%
  • Compatible Inverters: Sol-Ark, Schneider, SMA, Growatt, Solis, Sofar, Sermatec, Victron, Studer, Goodwell, Outback

  Warranty:

  • Inverter: 10 Years
  • LFP Battery: 10 Years

  Weight:

  • Inverter: 78 lb
  • Durarack Enclosure: 520 lb
