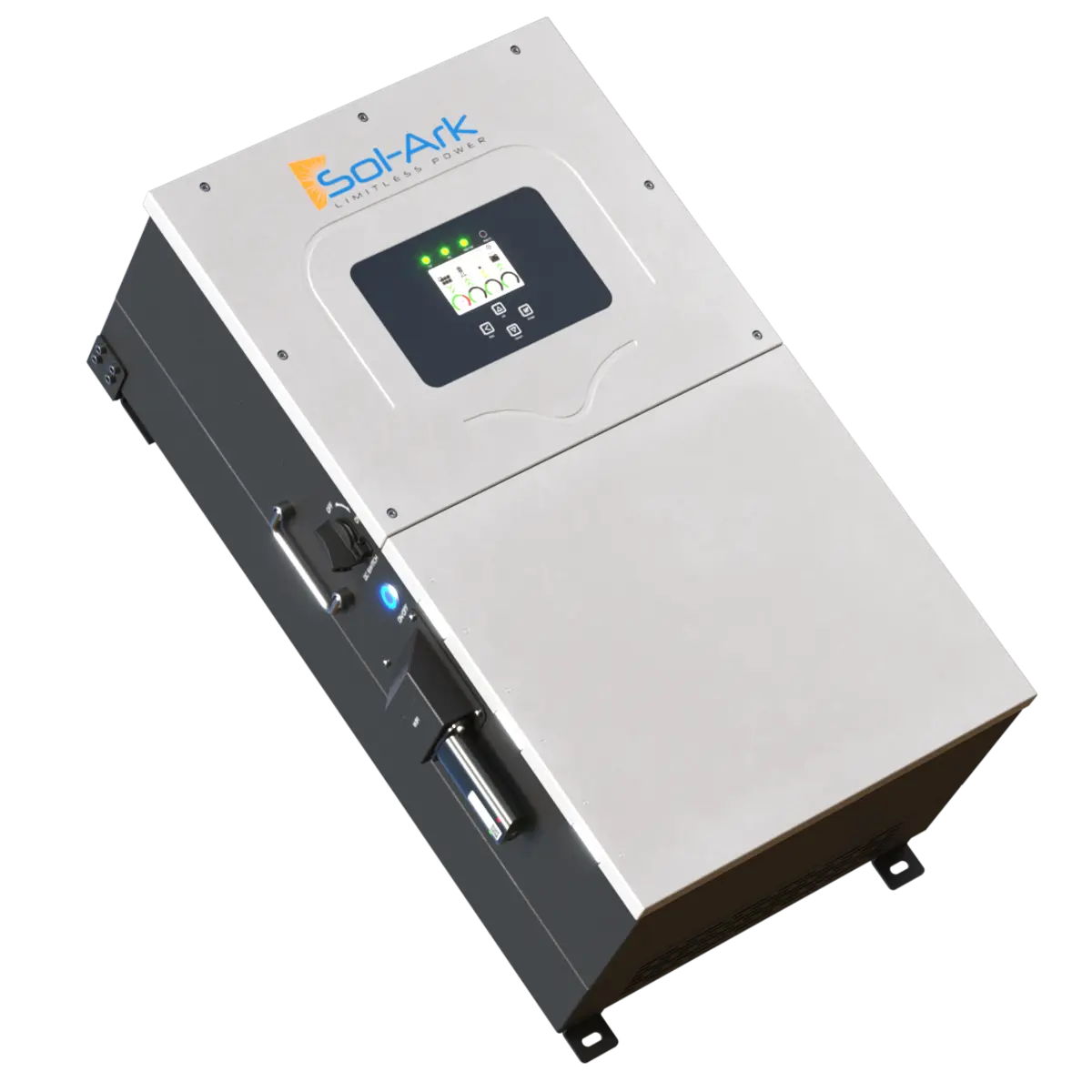

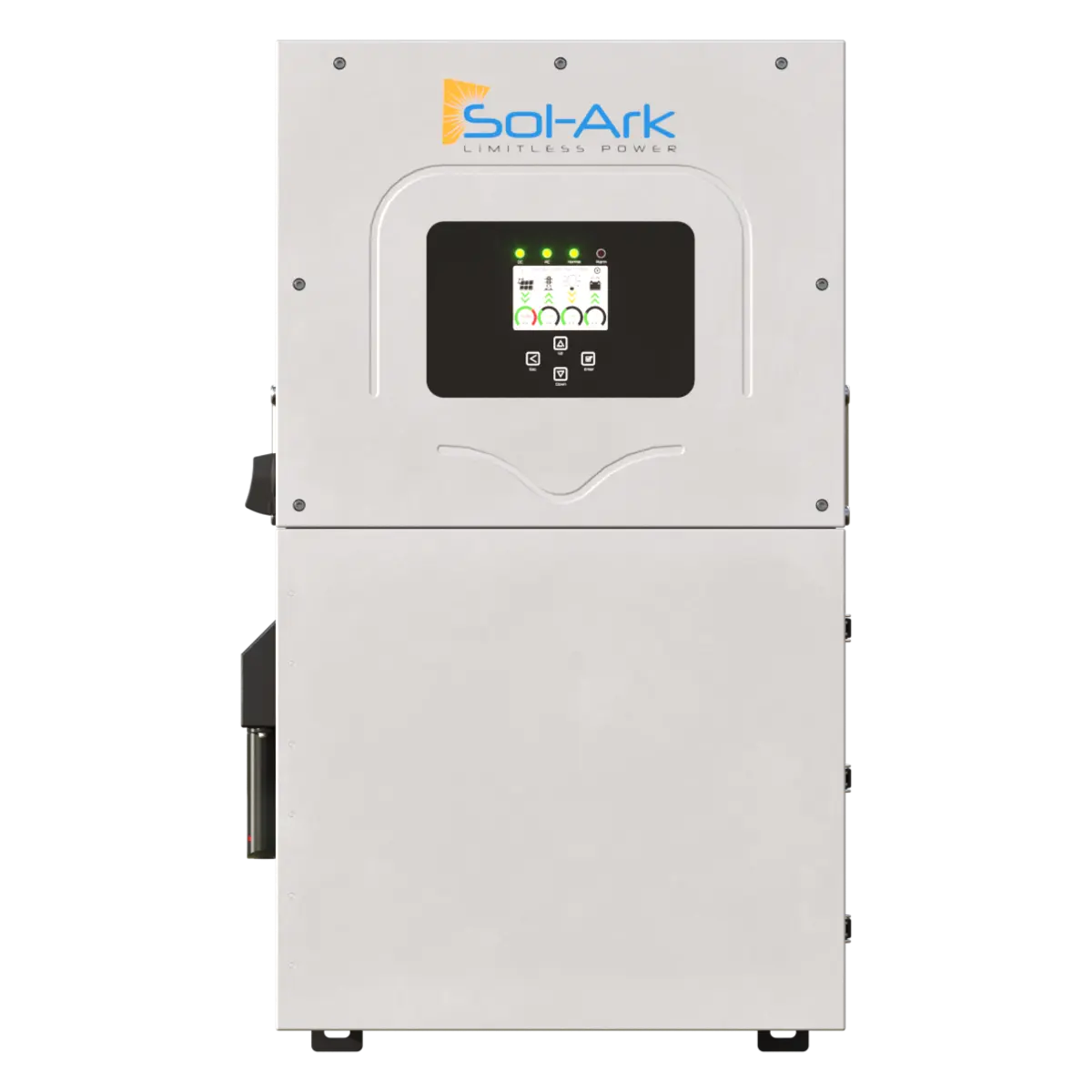

Sol-Ark 15 kw Battery/Battery-Less Inverter

200A passthrough, so there's no subpanel needed! This inverter is perfect for whole-home backup. Features and benefits include parallel stacking, grid sell, meter zero, time of use, smart load, AC coupling, & peak shaving. The Sol-Ark 15k Outdoor Case is a pre-wired system that contains the inverter, charge controller, and more, all in one package; no fuses, breakers, or combiner boxes necessary! With minimal additional hardware required, your install stays simple and low-cost. Sol-Ark inverters also do not have expensive battery restrictions like other solar inverters do, and can be used with a wide variety of 48V battery chemistries, from lead to lithium.

Features

• French cleat for easy installation
• Built-in solar array disconnect
• Remote Wi-Fi/Ethernet and local monitoring
• Outdoor rated NEMA 3R
• Battery agnostic
• 19.5 kW Solar input power
• 15 kW Output power off-grid
• Full generator compatibility


Specifications

• • Width: 18.3 in
  • Height: 31.8 in
  • Depth: 10.9 in
  • Weight: 135 lb
  • Mounting Type: Wall
  • Enclosure Rating: IP65/NEMA 3R
  • Ambient Temperature Rating: -40 to 60°C

  PV Input Data:

  • Maximum Allowed PV Power (STC): 19,500 W
  • Maximum PV Power Delivered to Battery & AC Outputs: 15,000 W
  • MPPT Voltage Range: 125-425 V
  • Startup Voltage: 125 V
  • Maximum DC Input Voltage: 500 V at 26 A
  • Maximum Operating Input Current Per MPPT: 26 A
  • Number of MPPT Trackers: 2
  • Number of PV Strings Per MPPT: 3
  • Maximum AC Coupled Input: 19,200 W

  Battery Input Data (DC):

  • Battery Chemistry: Lead-Acid or Li-Ion
  • Nominal DC Voltage: 48 V
  • Operating Voltage: 43-63 V
  • Capacity: 50-9900 Ah
  • Maximum Battery Charge/Discharge Current: 275 A
  • Charging Controller: 3-Stage with Equalization
  • Grid to Battery Charging Efficiency: 96%
  • External Battery Temperature Sensor (BTS): Included
  • Current Shunt for Accurate %SOC: Included
  • External Gen Start Based on Voltage or %SOC: Included
  • BMS Communication: CANBus & RS485

  AC Output Data:

  • Connection: 120/240/208V Split Phase
  • Continuous AC Power with PV: 15,000 W (62.5 A-L at 240 V)
  • Continuous AC Power from Batteries: 12,000 W (50 A-L at 240 V)
  • Total Harmonic Distortion (THD):
    • Continuous AC Power with Grid or Generator: 48,000 W (200A L-L at 240 V)
    • 24,000 W (200 A L-N at 120 V)
  • Grid Frequency: 50/60 Hz
  • Maximum Output Fault Current (5 sec): 94 A with PV
  • Maximum Output Fault Current (100 ms): 75 A without PV
  • Power Factor Output Range: ±0.9 to 1
  • CEC Efficiency: 96.5% (Peak 97.5%)
  • Design (DC to AC): Transformerless
  • Stackable: 12 Units
  • Idle Consumption Typical (No-Load): 90 W
  • Sell Back Power Modes: Limited to Household / Fully Grid-Tied
  • Response Time (Grid-Tied to Off-Grid): 5 ms

  Safety and Protection:

  • PV DC Disconnect Switch (NEC 240.15): Integrated
  • Ground Fault Detection (NEC 690.5): Integrated
  • PV Rapid Shutdown Control (NEC 690.12): Integrated
  • PV Arc Fault Detection (NEC 690.11): Integrated
  • PV Input Lightning Protection: Integrated
  • PV String Input Reverse Polarity Protection: Integrated
  • AC Output Breaker (200 A): Integrated
  • 200 A x 2 Battery Breaker/Disconnect: Integrated
  • Surge Protection: DC Type II / AC Type II

  Communication and Monitoring:

  • Wi-Fi & LAN Hardware Included

  Certifications & Standards:

  • Electronics Certified Safety by SGS Labs to NEC & UL Specs:
    • NEC 690.4B & NEC 705.4/6
    • Grid Sell Back - UL1741-2010/2018, IEEE1547a-2003/2014
    • FCC 15 cETLus Listed B
    • UL1741SB, CA Rule 21, HECO Rule 14H

  Warranty:

  • 10 Years



Documents

• Specification Sheet
• Installation/Operation Manual
