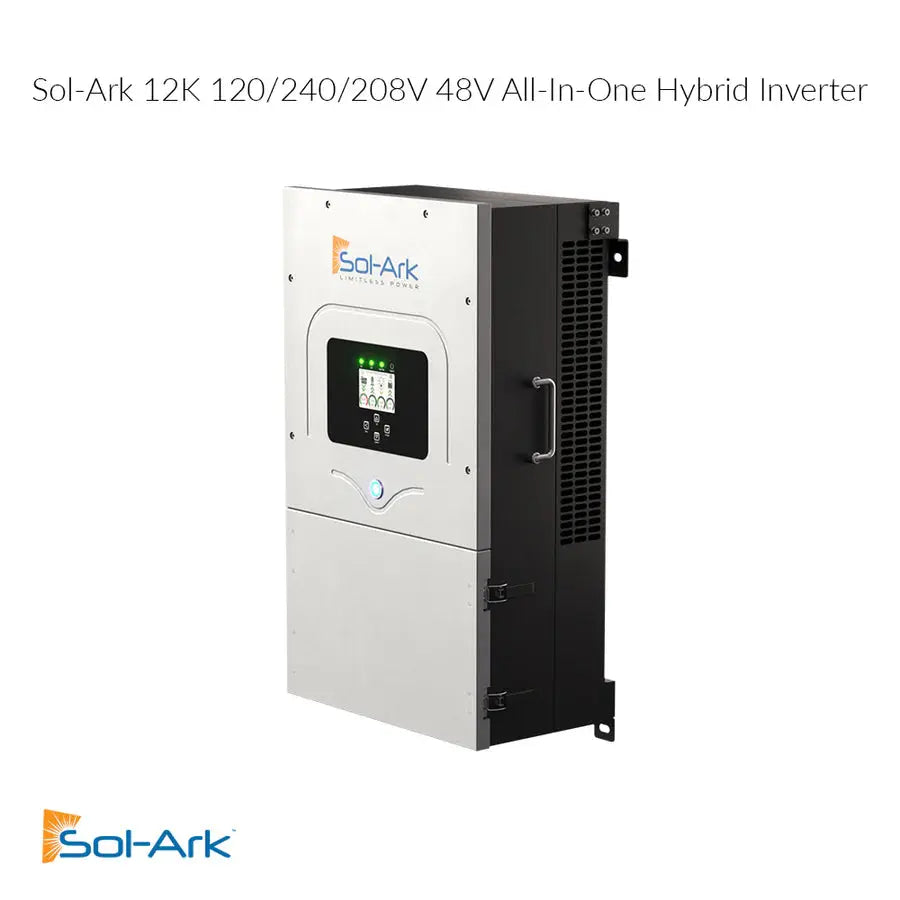

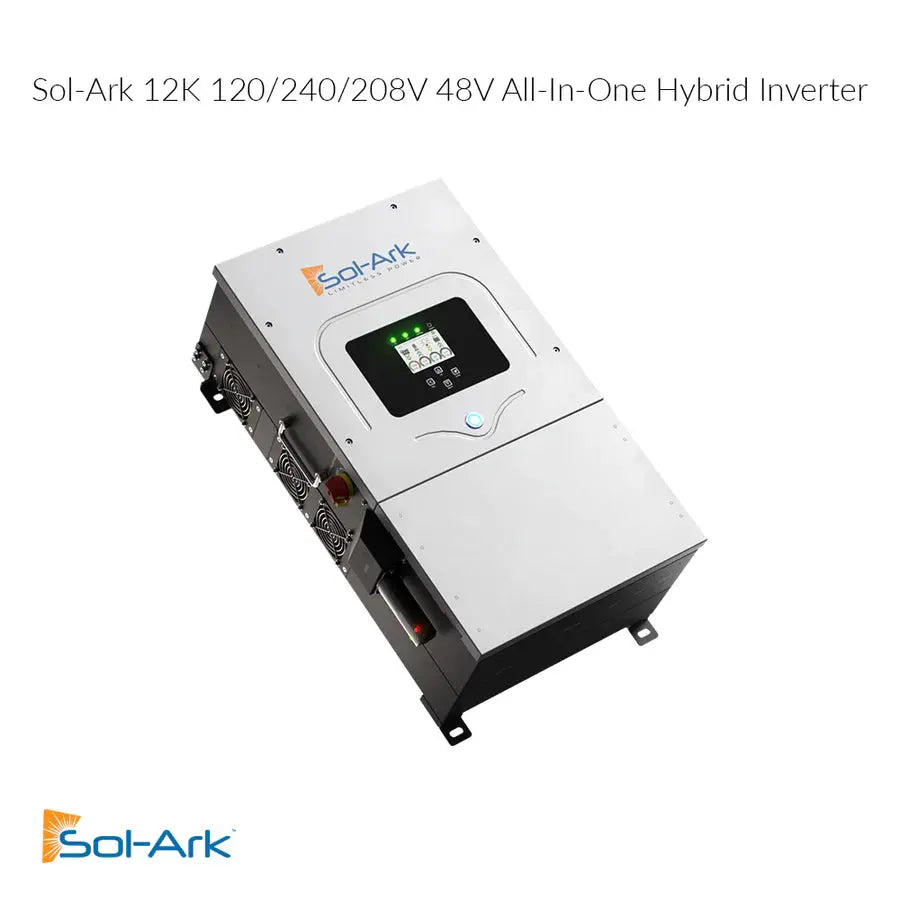

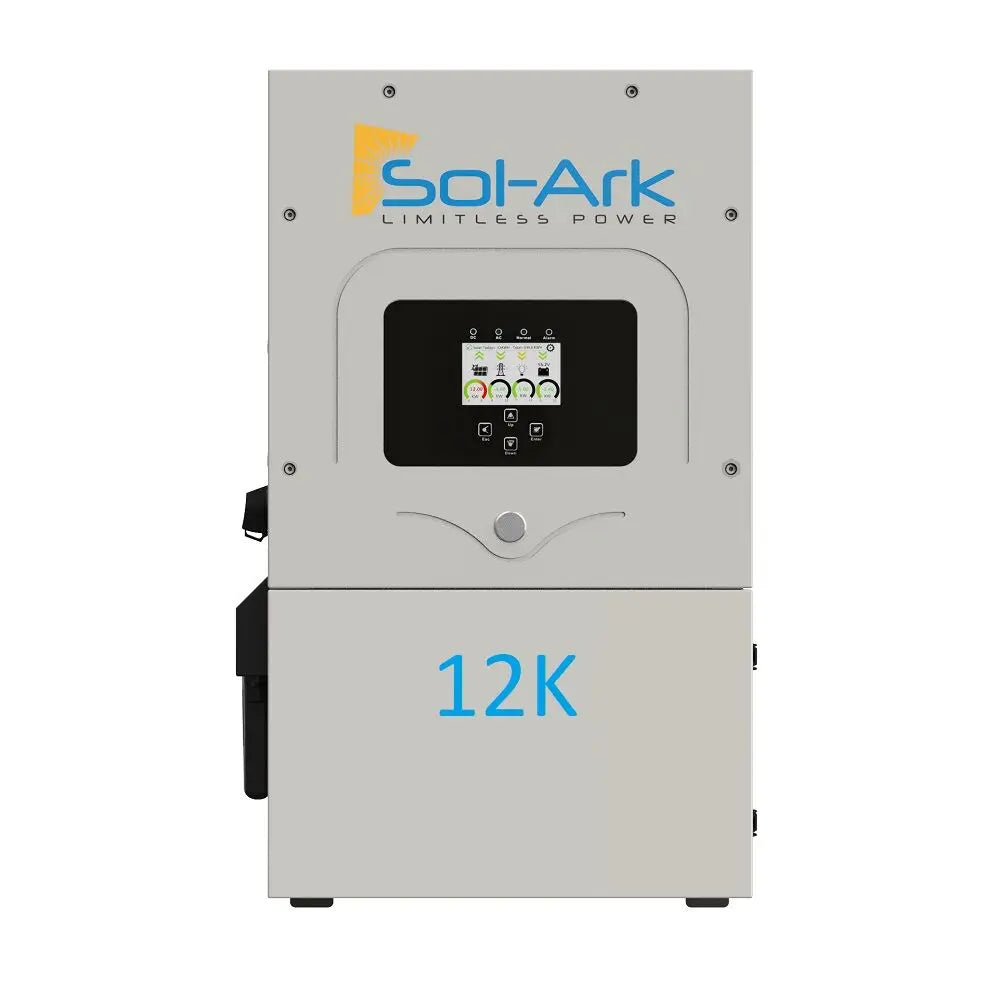

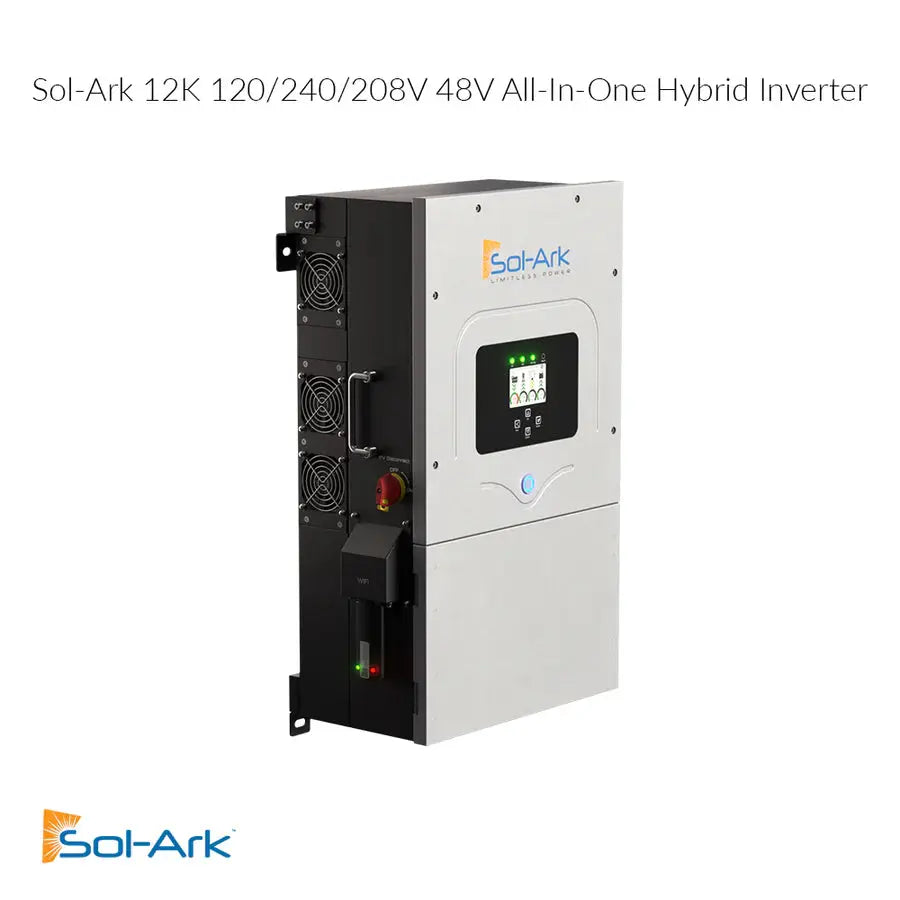

Sol-Ark 12K Hybrid Inverter
Comprehensive Overview of the Sol-Ark 12K Hybrid Inverter
Inverter Model / UL Model #: Sol-Ark-12K-P | SKU: 12K-2P
The Sol-Ark 12K is an industry-leading all-in-one hybrid inverter system designed for essential home energy management. Renowned for its reliability and versatility, it goes beyond basic solar energy conversion. Sol-Ark sets the bar for hybrid inverters with ruggedness, feature set, compatibility, and USA-based technical support — all backed by a standard 10-year warranty.
Key Features
- 12 kW capacity (13,000W Max Solar) — suitable for partial home backup, keeping essentials and a variety of appliances running when grid power is down
- 50A Grid Pass-Through
- Broad Battery Compatibility: Briggs & Stratton SimpliPhi, Discover Energy Systems, Pytes, HomeGrid, Renon, Storz Power, EndurEnergy
- EV Charging — ability to load a single circuit
- Built-in Transfer Switch — integrates with any AC power source
- MySolArk App — website & smartphone app for real-time energy monitoring and management
- 4ms UPS Transfer Time — acts as a massive uninterruptible power supply
- Stackable: Parallel stack up to 9 inverters (up to 108kW)
- DC Transformerless — boosts PV energy 10–20% without increasing PV array size
- Easy to Install — All-In-One design cuts install time in half
Certifications & Approvals
- UL 1741 SA Rule 21, HECO, & Canada Approved
- PREPA Approved for Puerto Rico
- 120/240 & 208V
- NEC 690.4B, NEC 705.4/6, UL1741SB, IEEE1547a, FCC 15 Class B
Technical Specifications
Input Data (PV)
| Max Allowed PV DC Capacity | 13,000W |
| Nominal MPPT Voltage Range | 175 – 425V |
| Startup Voltage | 125V |
| Max DC Voltage | 500V |
| Max Input Current per MPPT | 20A (self-limiting) |
| Number of MPPT | 2 |
| Max Solar Strings Per MPPT | 2 |
| Max AC Coupled Input | 9,600W |
Output Data (AC)
| Nominal AC Output Voltage | 120/240/208V Split Phase |
| Peak Inverter Efficiency | 96.5% (Peak 97.5%) |
| Continuous AC Power to Grid (On-Grid) | 9,000W / 37.5A L-L (255V) | 4,800W / 40A L-N (120V) |
| Continuous AC Power to Loads (Off-Grid) | 8,000W / 33A L-L (240V) | 4,800W / 40A L-N (120V) |
Battery Input Data (DC)
| Battery Technologies | Lithium / Lead Acid |
| Nominal DC Input | 48V |
| Capacity | 50 – 9,900Ah |
| Grid to Battery Charging Efficiency | 96.0% |
General Data
| Dimensions (H x W x D) | 29.5" x 17.7" x 10.00" |
| Weight | 78 lbs |
| Protection Rating | IP65 / NEMA 3R |
| Backup Transfer Time | 4 ms |
Integrated Protections
- PV DC Disconnect Switch (NEC 240.15)
- Ground Fault Detection (NEC 690.5)
- PV Rapid Shutdown Control (NEC 690.12)
- PV Arc Fault Detection (NEC 690.11)
- PV Input Lightning Protection
- PV String Input Reverse Polarity Protection
- AC Output Breaker – 63A
- 250A Battery Breaker / Disconnect
- Surge Protection
Warranty
10-Year Standard Warranty — No additional warranty purchase needed. The Sol-Ark 12K comes with a standard 10-year warranty right out of the box. Warranty registration is required via the Sol-Ark Registration Page.
Documentation & Resources
Advanced Features and Performance
The Sol-Ark 12K hybrid inverter is designed to optimize solar energy systems with its advanced technology. This inverter seamlessly integrates solar power, battery storage, and utility power, ensuring maximum energy efficiency. It supports up to 12,000 watts output, making it ideal for residential and light commercial applications. Its high conversion efficiency and flexible hybrid configuration allow users to reduce reliance on the grid. The Sol-Ark 12K hybrid inverter also features built-in safety protections and smart monitoring capabilities for reliable and easy management of your solar power system.
Energy Storage and Backup Capabilities
One of the key advantages of the Sol-Ark 12K hybrid inverter is its robust energy storage support. It is compatible with a wide variety of battery types, allowing for a scalable and customizable backup power system. During power outages, the inverter automatically switches to battery power, providing uninterrupted electricity for critical loads. This seamless transition ensures that your home or business stays powered without interruption while maximizing solar self-consumption and reducing utility costs over time.
Installation Flexibility and User-Friendly Design
The Sol-Ark 12K hybrid inverter is engineered with the installer and end-user in mind. Its modular design and intuitive interface simplify the installation process and system expansion. It supports both grid-tied and off-grid configurations, making it versatile for different solar system setups. The inverter’s LCD screen and WiFi monitoring options allow users to track real-time performance data and system status conveniently. This blend of flexibility and user-friendly design makes the Sol-Ark 12K hybrid inverter a top choice for those seeking reliable and efficient solar power management.
