SMCU250JD - Eaton Molded Case Circuit Breaker Accessory Handle Mechanism

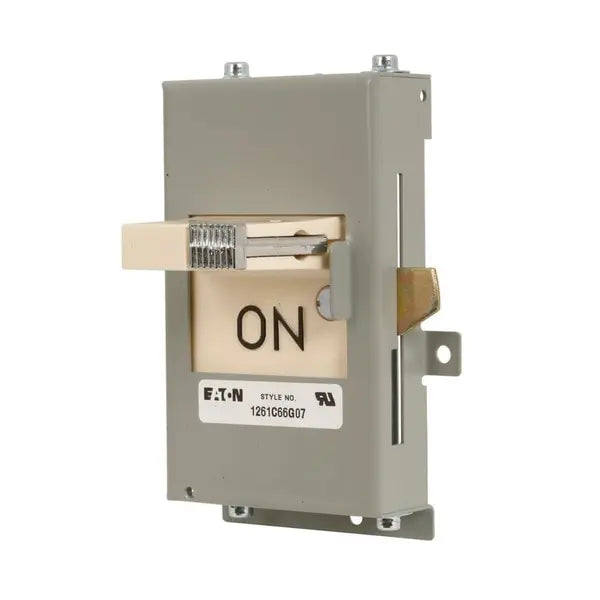

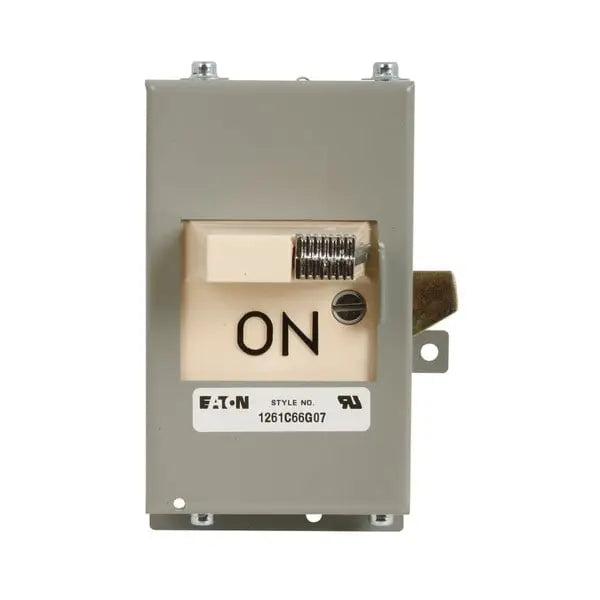

Eaton Type MC Handle Mechanism is designed for molded case circuit breakers, providing secure and reliable operation in electrical enclosures. Built for J-Frame and J-K Frame breakers from Eaton’s Series C, this flange-mounted mechanism ensures consistent performance and ease of use. It is specifically engineered for NEMA 1 enclosures, making it ideal for indoor applications where basic protection is sufficient.
Key Features:
- Handle Mechanism Type: MC
- Compatible Frames: J-Frame, J-K Frame (Series C)
- Mounting Style: Flange-mounted
- Enclosure Compatibility: NEMA 1
This Eaton MC handle mechanism is a durable solution for dependable breaker control in residential, commercial, or light industrial installations.
Documents:
Application notes
Application of Multi-Wire Terminals for Molded Case Circuit Breakers
UL listed 100%-rated molded case circuit breakers
Brochures
Motor protection circuit breakers product aid
Multi-wire lugs product aid
Catalogs
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
Multimedia
Flex shaft handle installation tutorial
Specifications and datasheets
Series C F-Frame molded case circuit breakers
