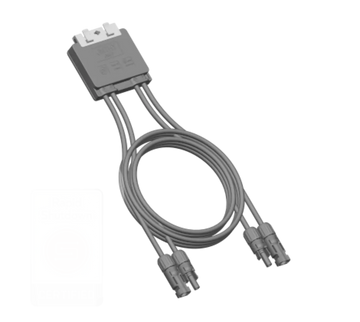

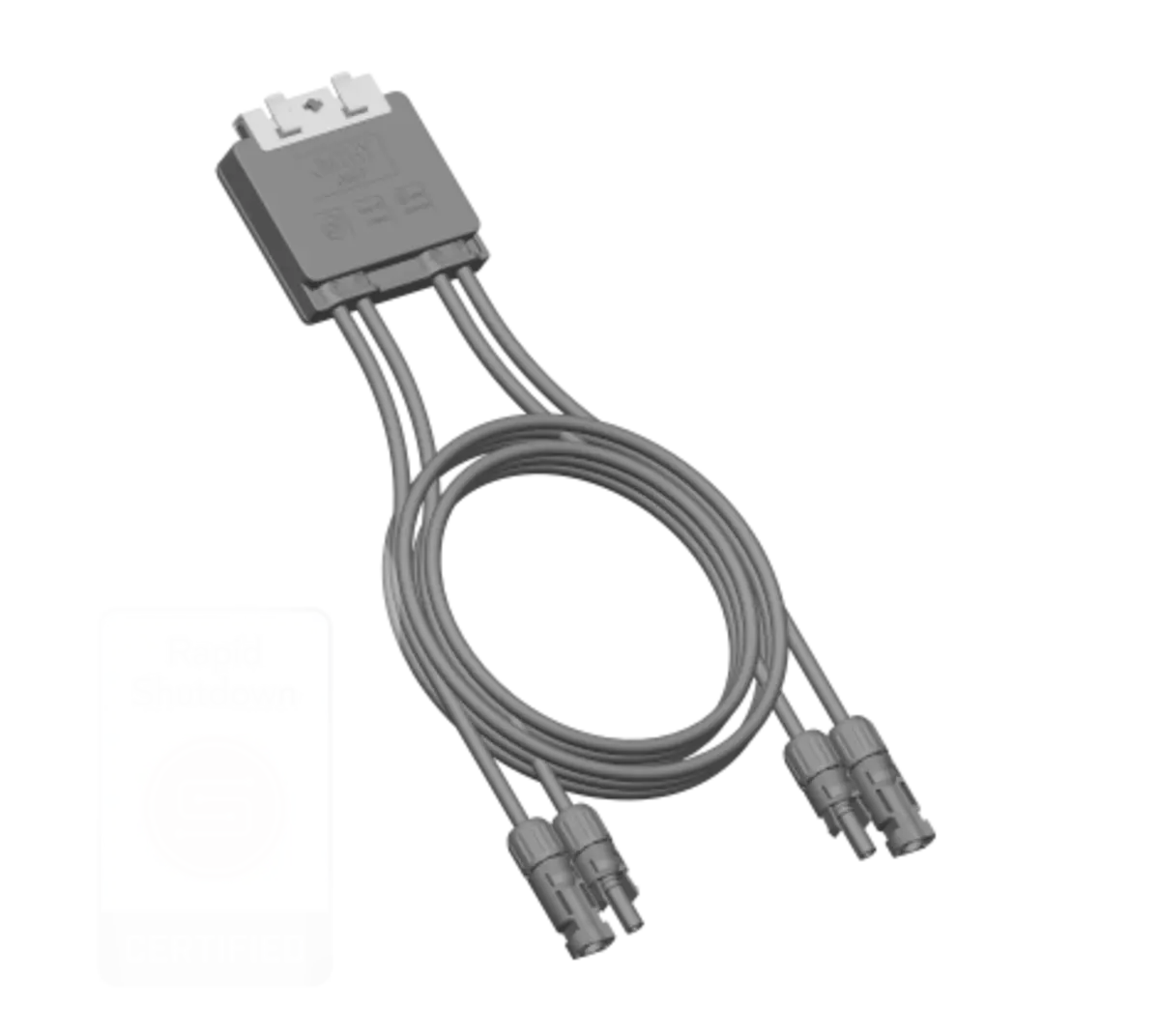

SMA SunSpec JMS-F Rapid Shutdown Module

Comprehensive Overview of the SMA SunSpec Rapid Shutdown Module

The SunSpec Rapid Shutdown System (model JMS-F), available from SMA, is one of the most cost-effective and reliable solutions for fulfilling NEC 2023/2020/2017 module level shutdown requirements. The module-level device is certified for compatibility with the SunSpec communication signal and SMA inverters, making compliance simple and easy. By using the existing DC lines between the inverter and PV array for power line communications, installation and labor are significantly reduced. No additional wires or communication equipment is needed. The solution also features up to 50% fewer internal components vs alternatives, resulting in greater lifetime reliability.

Features

• Cost-Effective - Simple plug and play installation
• No additional components necessary, reducing balance of systems costs
• Simple & Robust - Power line based communication certified for compatibility with the SunSpec signal for rapid shutdown
• Shuts down PV module whenever SunSpec signal is interrupted
• Reduced Risk - Technical support from SMA's number one ranked service organization
• Fully SunSpec certified solution when paired with an SMA SunSpec certified inverter


Specifications

• DC Input Power Rating: 420 Wp
• Maximum PV Module Open-Circuit Voltage: 60 V
• Minimum Input Voltage: 14 V
• Maximum Continuous Input Current IMAX: 15 A
• Maximum Short-Circuit Input Current (ISC): 15 A
• Output Power Range: 0-420 W
• Maximum Output Voltage: 60 V
• Standby Output Voltage: 1 V
• Maximum System Voltage (Vmax): 1500 V
• Allowable Series String Connections: 6-30 JMS-F Devices
• Input/Output Connector: MC4
• Output Wire Length: 1.2 m
• Operating Temperature: -45 to 75°C
• Enclosure Rating: Type 4X
• Relative Humidity: 0-100%
• Communication Mode: Power Line Communication (PLC)
• Rapid Shutdown Time: 10 sec
• Warranty: 25 Years
• Standards: UL 1741, SunSpec Certified
