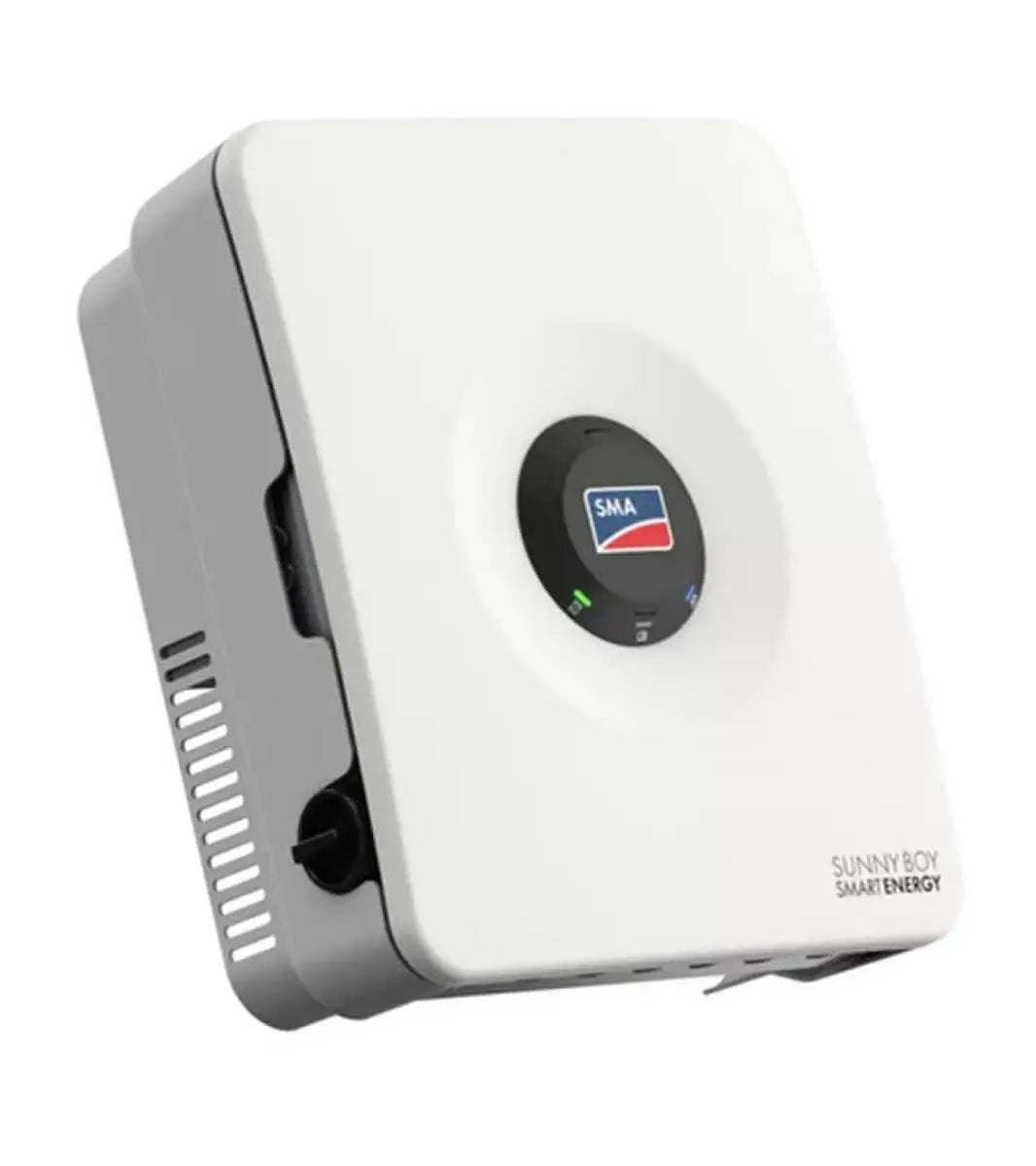

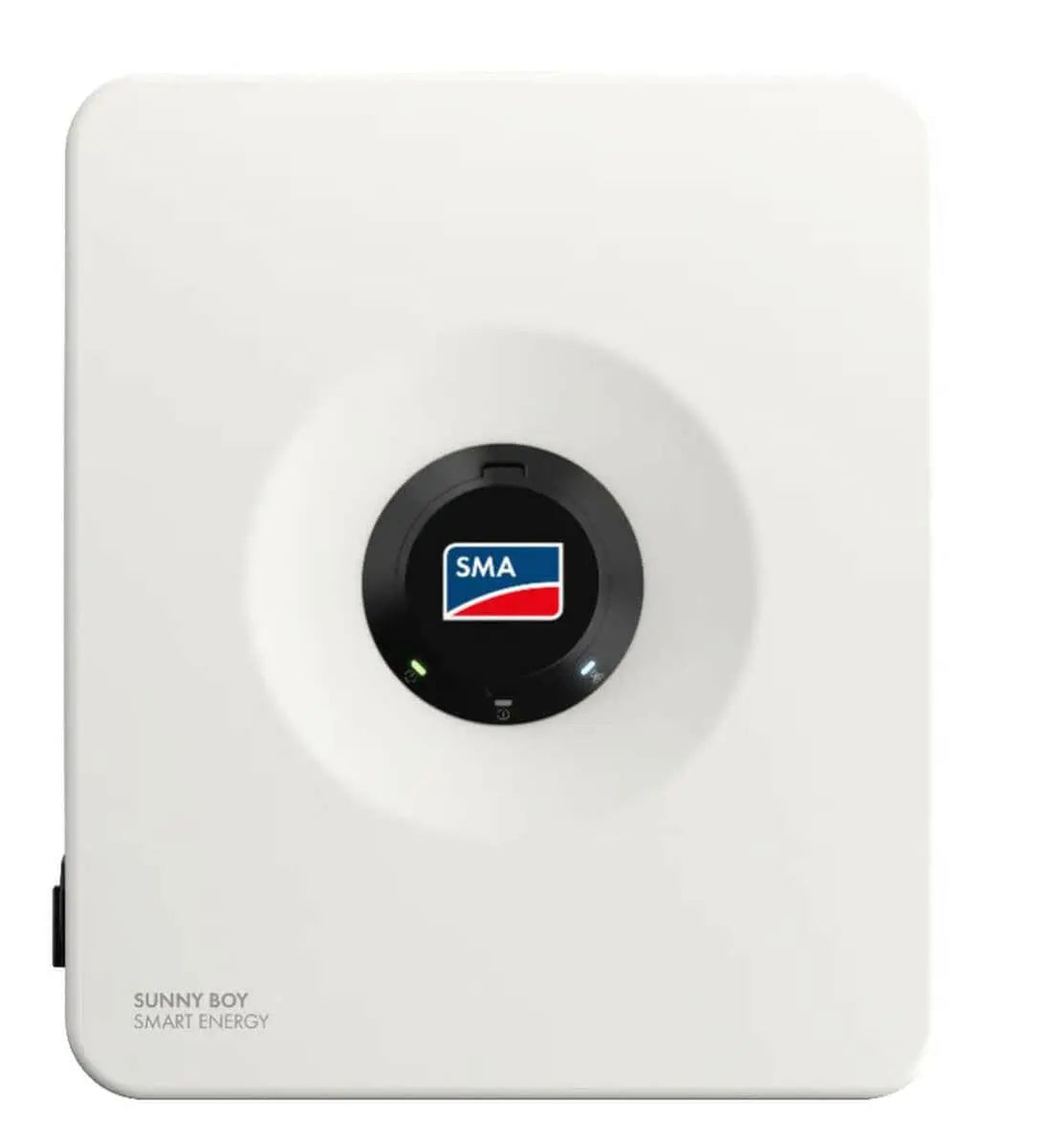

SMA Sunny Boy Smart Energy SBSE 11.4kW Hybrid Inverter

SMA Sunny Boy Smart Energy SBSE 11.4kW Hybrid Inverter

Bring solar conversion and battery integration together in one unit with the SMA Sunny Boy Smart Energy SBSE. Built for residential single-phase systems, this 11.4kW hybrid inverter supports 208/240V AC applications and gives installers flexible options for solar and storage system design.

Why it fits

• Solar and storage flexibility: Supports PV, hybrid and AC-coupled system configurations described in the existing product information.
• Three MPPT channels: Helps accommodate different solar array layouts.

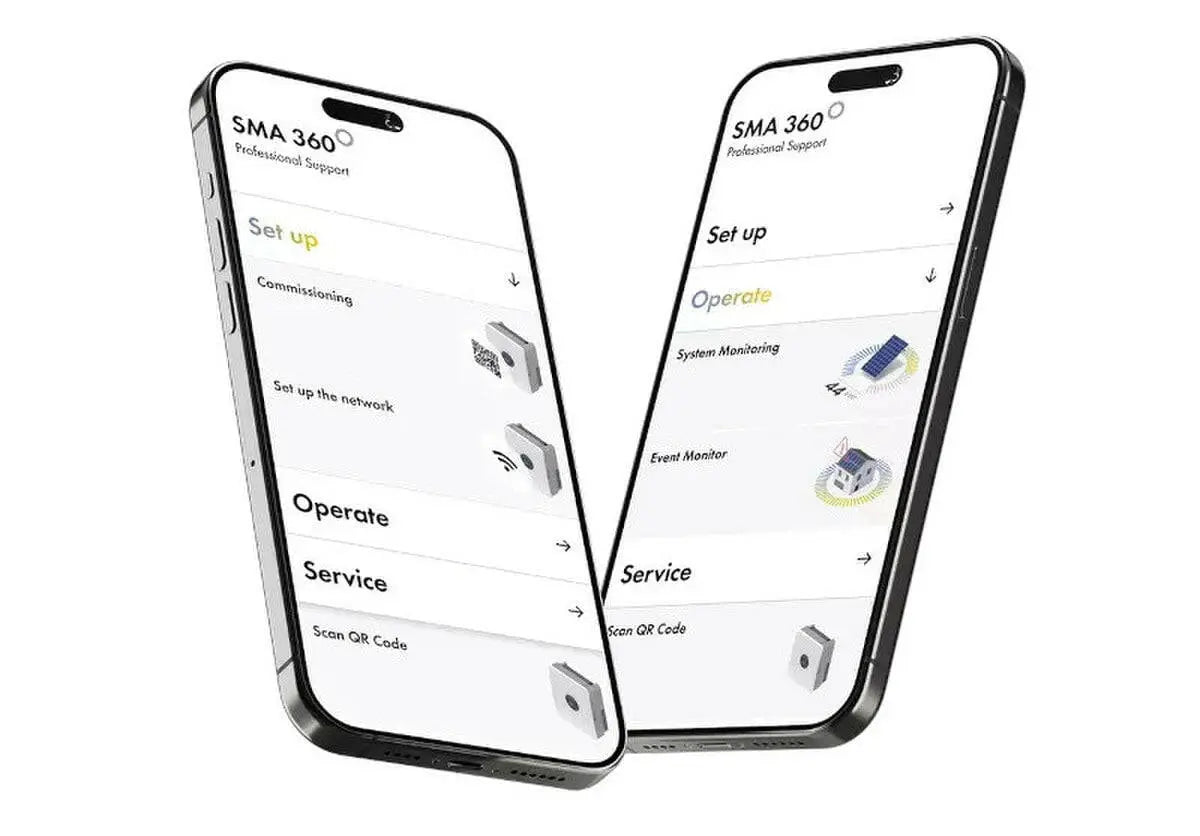

• Installer-focused setup: The product information lists a built-in SunSpec-certified rapid-shutdown transmitter and commissioning through the SMA 360° app.
• Backup option: SMA Backup Secure is described as providing daytime power to a dedicated outlet during a grid outage when sunlight is available; confirm required configuration before planning backup loads.

Listed specifications

• Output power: 11.4kW (11,400W)
• AC voltage: 208/240V, single phase
• Maximum PV array power: 22,800Wp
• Maximum DC voltage: 600V
• MPP voltage range: 60–480V
• Enclosure rating: IP65 / NEMA 3R
• Dimensions: 20 × 29.5 × 8 in (W × H × D)

Check the current SMA specifications and battery compatibility for your installation. Battery and backup accessories are not confirmed as included with this listing.

View specification sheet
