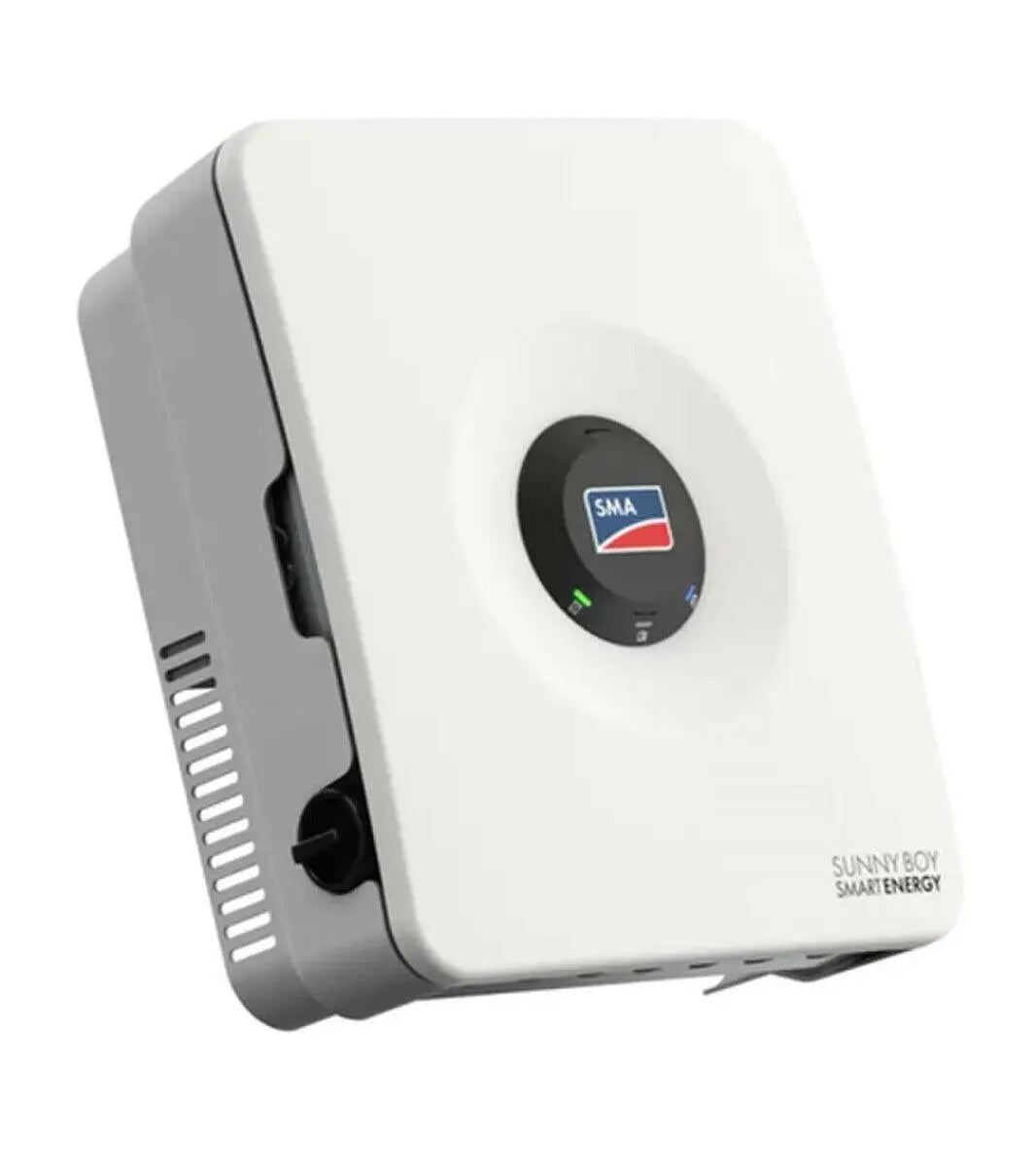

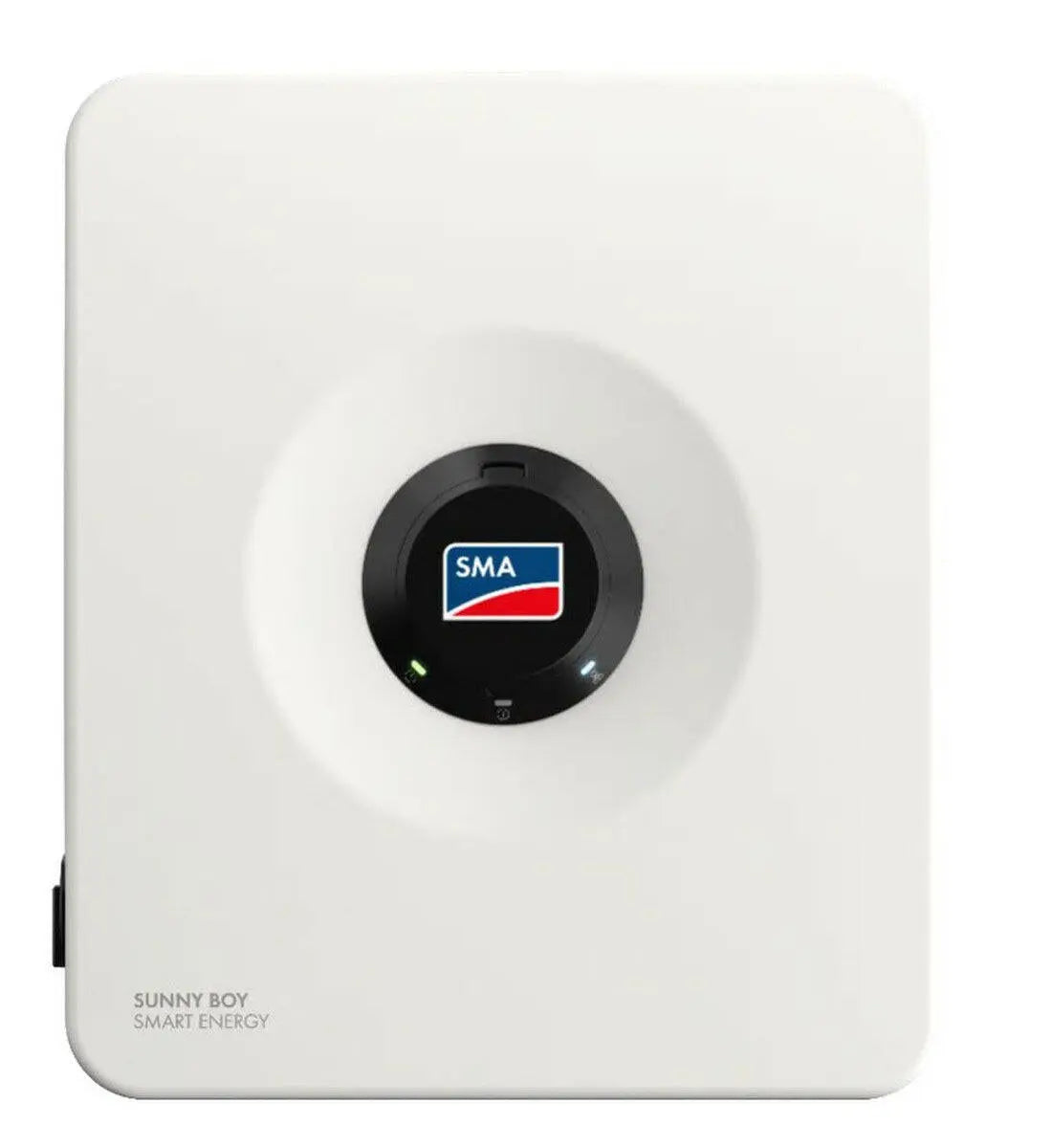

SMA Sunny Boy Smart Energy 9.6kW Hybrid Inverter

SMA Sunny Boy Smart Energy 9.6kW Hybrid Inverter

Plan a residential solar system with room for energy storage using the SMA Sunny Boy Smart Energy 9.6kW hybrid inverter. This single-phase model combines solar conversion with battery integration options in one unit for 208/240V AC applications.

Highlights

• Flexible system design: The existing product information describes PV, hybrid and AC-coupled configurations.
• Three MPPT channels: Offers options for solar array layout and design.

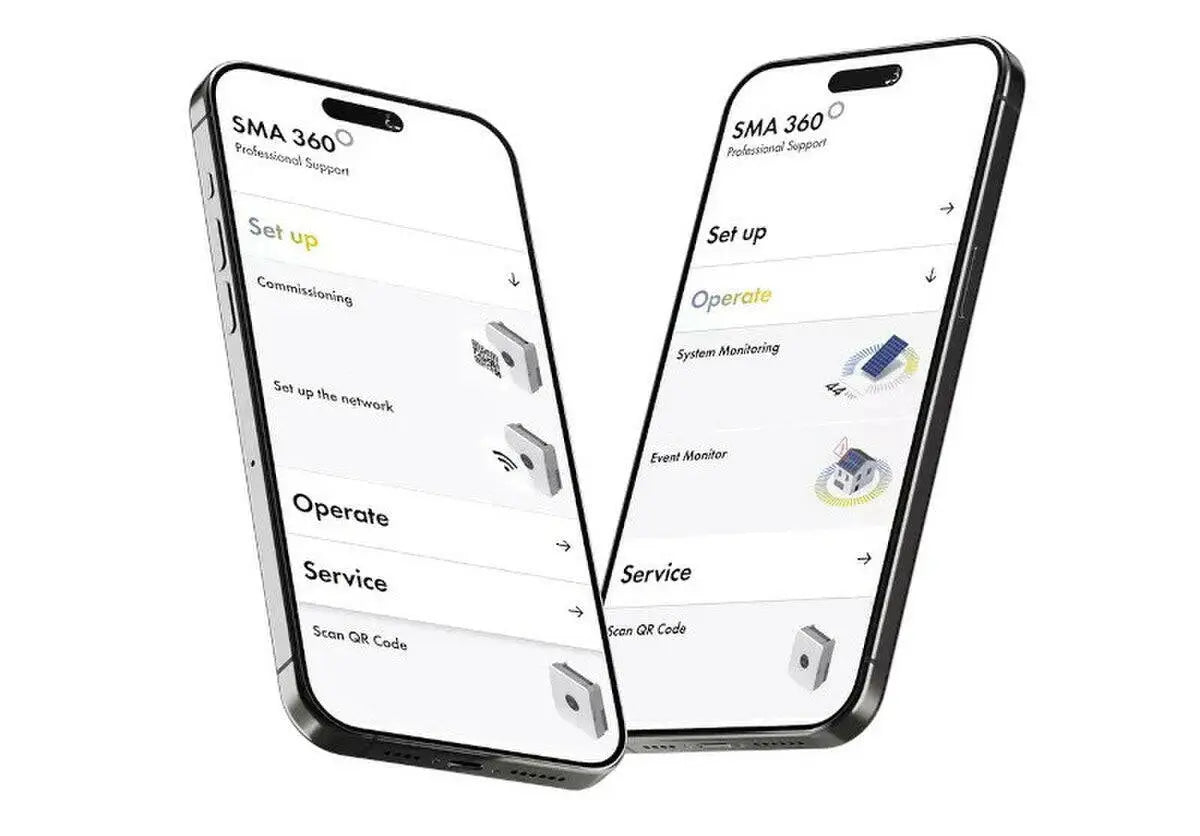

• Installer tools: Listed features include a built-in SunSpec-certified rapid-shutdown transmitter and commissioning through the SMA 360° app.
• Daytime backup option: SMA Backup Secure is described as providing power to a dedicated outlet during an outage when sunlight is available. Confirm the required configuration before planning backup loads.

Listed specifications

• Power rating: 9.6kW (9,600W)
• AC voltage: 208/240V, single phase
• Maximum PV array power: 19,200Wp
• Maximum DC voltage: 600V
• MPP voltage range: 60–480V
• Enclosure rating: IP65 / NEMA 3R
• Inverter dimensions: 20 × 23 × 8 in (W × H × D)

Verify battery compatibility, backup requirements and current electrical specifications against the SMA documentation before installation. Battery and backup accessories are not confirmed as included with this listing.

View specification sheet
