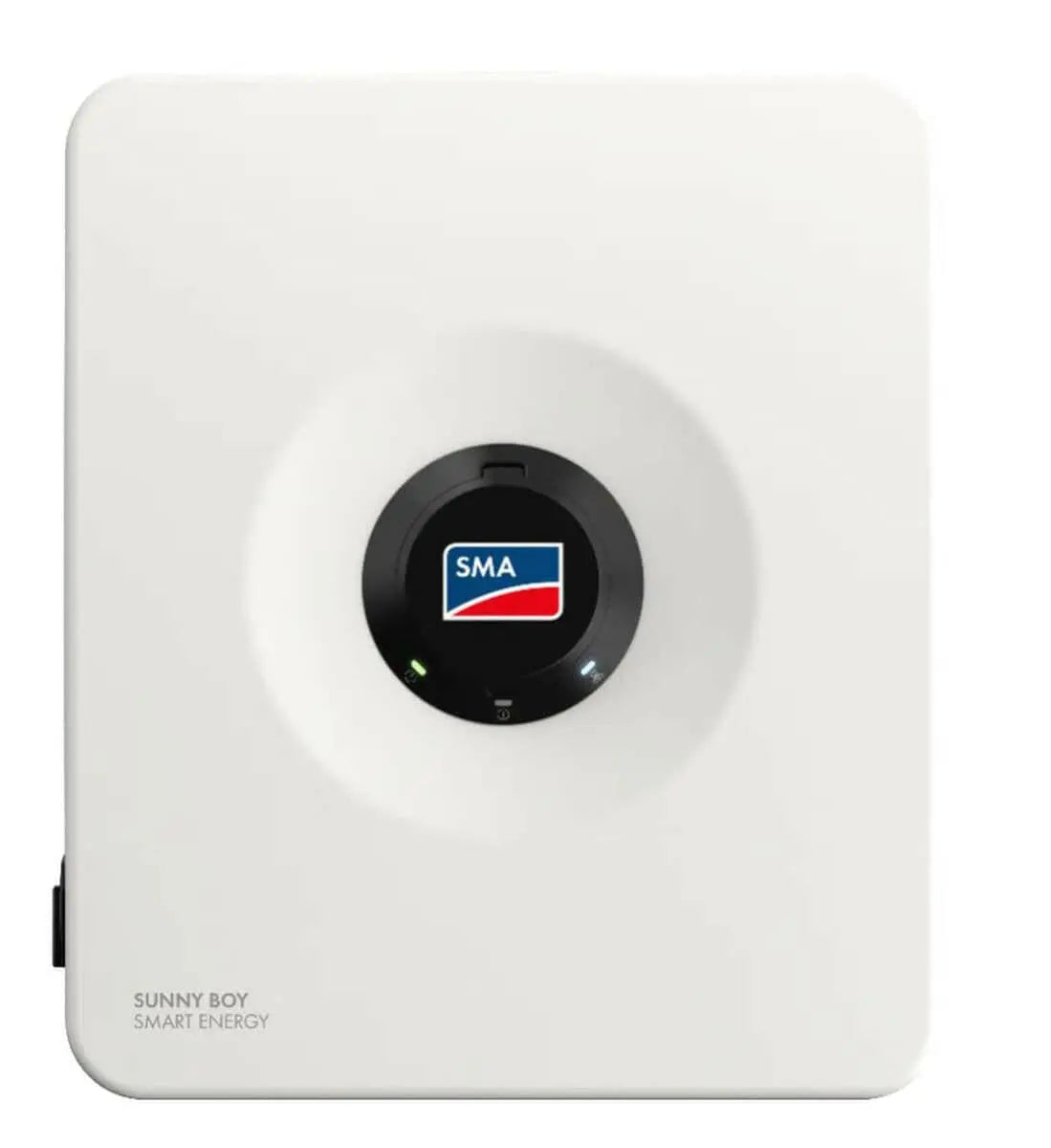

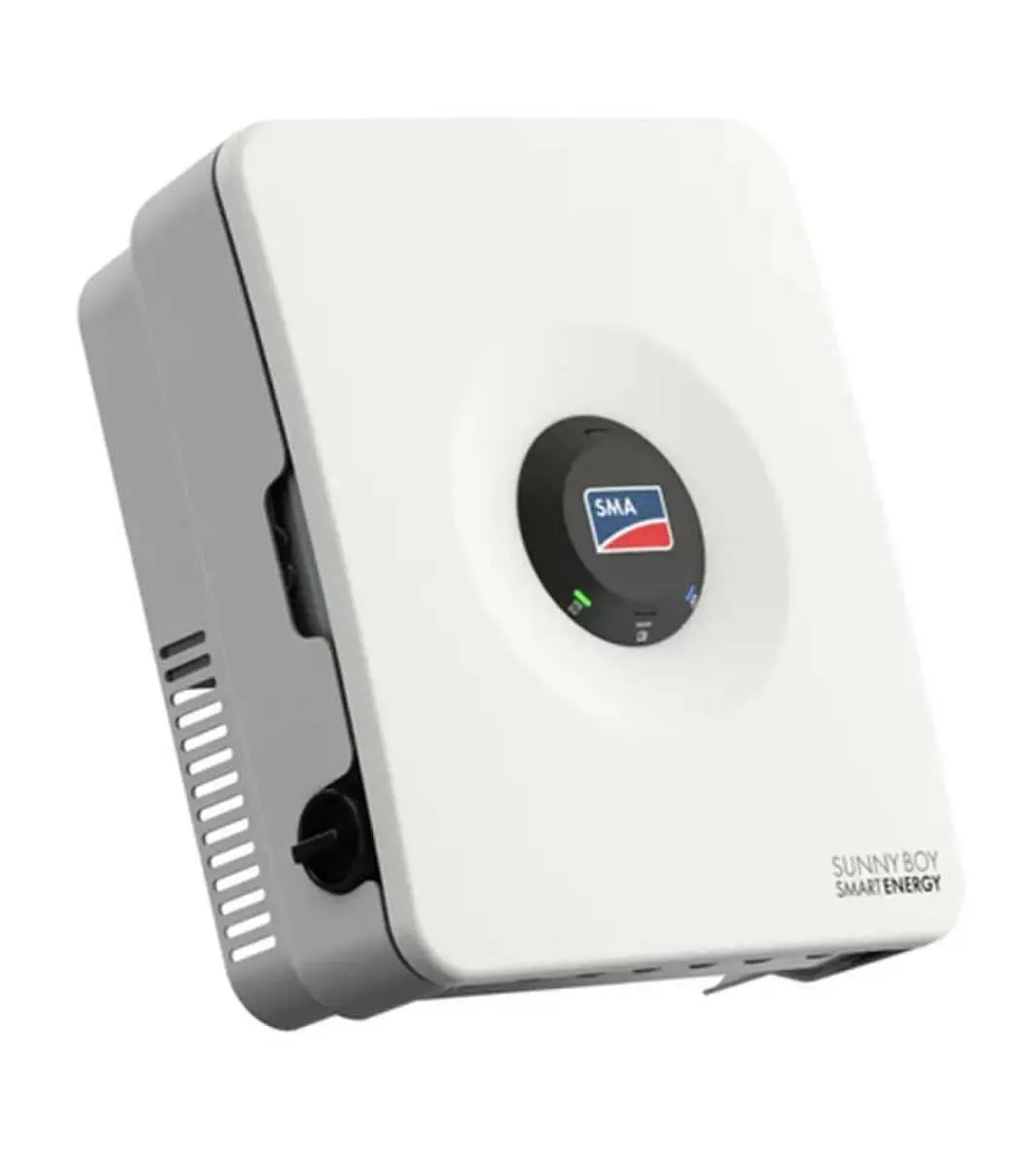

SMA Sunny Boy Smart Energy 3.8kW, Grid-Tie Hybrid Inverter

Understanding the SMA Sunny Boy Smart Energy 3.8kW, Grid-Tie Hybrid Inverter

For over 40 years, SMA has been the leader in solar energy and the new SMA Home Energy Solution will continue this trajectory. Installers choose SMA for reliability, performance and innovation. At the heart of the SMA Home Energy Solution is the new, ground-breaking Sunny Boy Smart Energy hybrid inverter. This system enables both immediate energy use and storage in one single device. SMA Backup Secure is back (previously Secure Power Supply). With most grid-tied inverters, when the grid goes down, so does the solar-powered home. SMA's solution provides daytime energy to a dedicated power outlet during grid outages, providing homeowners with access to power as the sun shines. With its high-speed battery charging capabilities to its easy installation and handling, this newest offering will provide a capable, flexible solution that empowers homeowners to take control of their energy.

Features

• Ultimate flexibility: 200% DC/AC design capability PV, Hybrid and AC coupling in one, 3 MPPT optimizing channels, Larger power classes
• Easy installation: Smaller and lighter, eases mounting, 2-in-1 solution saves time, wall space and electrical upgrades, Rapid commissioning via built-in SunSpec Certified RSD transmitter
• Complete reliability: No need for complex microinverters or optimizers, 10-year warranty, extendable to 25, Energy security with or without a battery
• New, modern design: Fresh aesthetic look, with more functional capabilities, Curved, easy-open cover, Quick commissioning, SMA 360° app saves installers time and money, Scan, tap and connect multiple devices from your mobile device or tablet

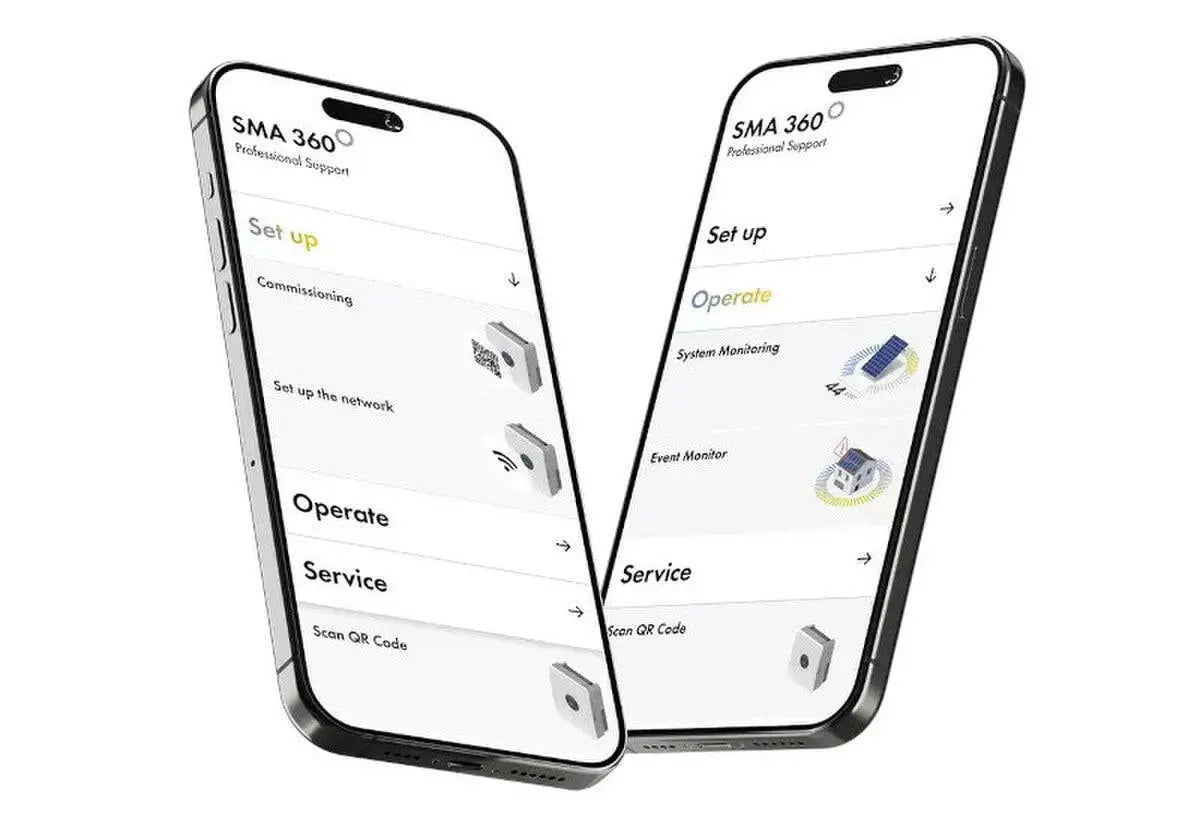

• SMA 360° App: When combined with the SMA Sunny Boy Smart Energy, the SMA 360° app enables installers to quickly commission, monitor, and access resources all in one place


Specifications

• Type: Preliminary, Transformerless Topology
• Dimensions: 20 in Width x 29.5 in Height x 8 in Depth
• Maximum PV Array Power: 7600 Wp
• Voltage Rating: 600 Vdc, 240/208 Vac
• MPP Voltage Range: 60-480 V
• Battery Type: HV/Lithium Based (TBD)
• Power Rating: 3800 W
• Frequency Rating: 60/55-66 Hz
• Output Amperage: 16 A
• Efficiency: 98%
• Wire Size: 10-4 AWG
• Enclosure Rating/IP Rating: IP65/NEMA 3R
• Warranty: 10 Years


Documents

• Specification Sheet


Innovative Technology for Optimal Performance

The SMA Sunny Boy Smart Energy 3.8kW, also known as SBSE-3.8-US-50, is designed to enhance your solar energy experience. This inverter excels at integrating your energy production with your home's energy needs. When paired with solar panels, it intelligently manages the energy flow, allowing you to utilize stored energy during peak demand times. However, it also seamlessly connects to the grid, offering reliability when solar production is low. Therefore, choosing the SMA Sunny Boy ensures you maximize your energy savings.

Smart Features for Enhanced Control

This hybrid inverter is not just efficient; it’s smart. It includes advanced monitoring capabilities, which allow users to track energy production and consumption via a user-friendly app. Because it provides real-time data, users can make informed decisions about their energy usage. Additionally, its compatibility with various battery systems further enhances flexibility, allowing for a tailored approach to energy management.

Durability and Reliability in One Package

Built to last, the SMA Sunny Boy Smart Energy inverter is designed for various environmental conditions, ensuring longevity and durability. It operates quietly and maintains high efficiencies even under challenging conditions. As a result, homeowners can have confidence in their investment, knowing that they have a dependable partner in their solar energy journey. Whether on a sunny day or a cloudy one, this inverter works tirelessly to provide optimal performance.
