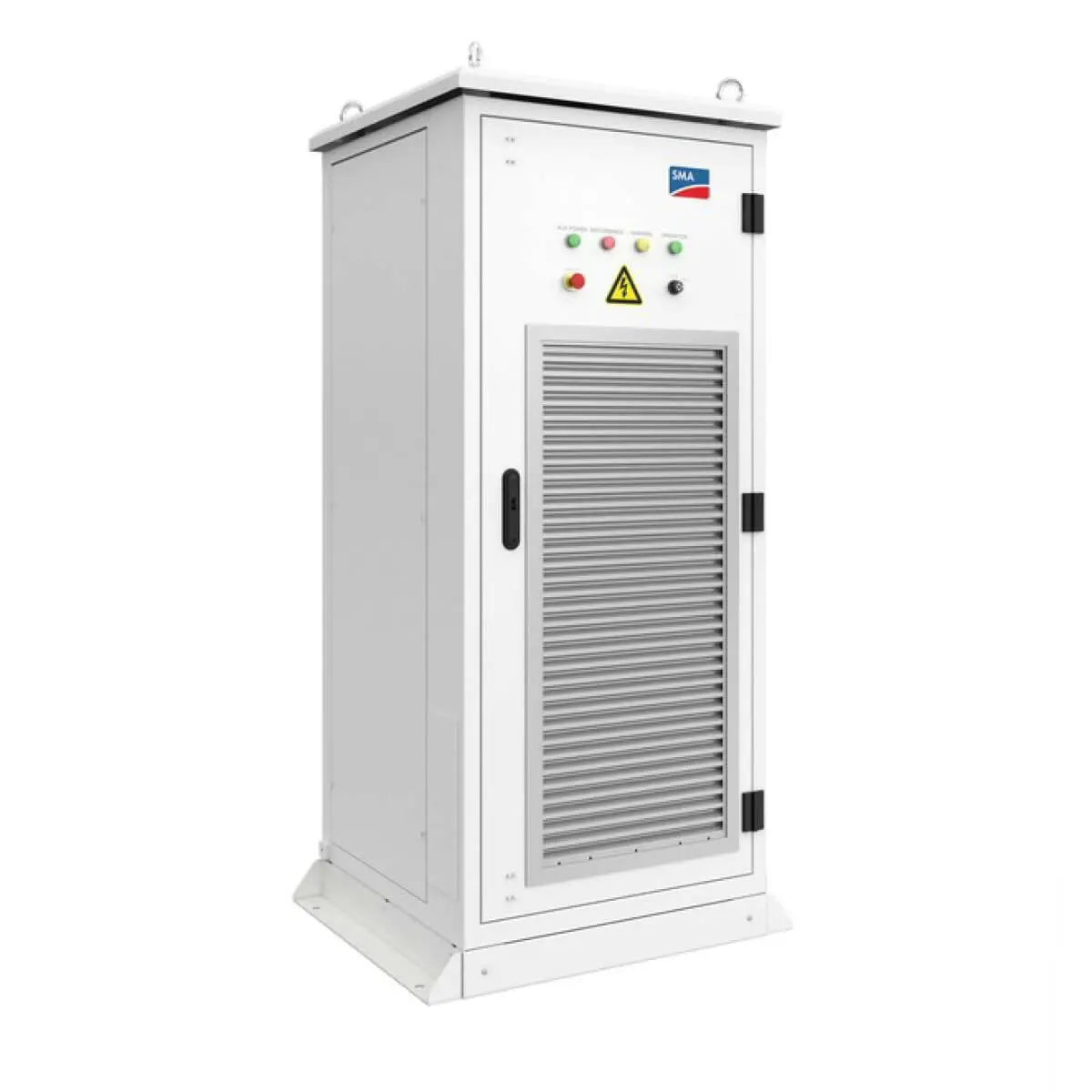

SMA Solar Technology AG 500 kW at 1000 Vdc 550-1500 V DC-DC Converter

SMA Solar Technology AG 500 kW DC-DC Converter

The SMA DC-DC converter allows designers to increase their PV power plant's yields by oversizing the DC array without compromising energy losses. This is accomplished with the new DC-coupling option and the generous DC-AC ratios of the Sunny Central UP inverter series. The inverter can intelligently control the flow of power for many different use-cases, including clipped-loss capturing. The stored energy can be fed in at attractive times, for example, in the morning or at night, to achieve a better price-point for the energy. Grid operators are able to benefit from grid services, such as frequency control or time-based feed-in schedules. Up to six DC-DC converters can be connected and operated simultaneously on the Sunny Central inverter. This minimizes battery short-circuits currents for high energy applications and avoids the need for additional and expensive protection measures inside the battery container.

Features

• Retrofittable (storage solution can be integrated anytime)
• Step-up/step-down converter with battery charge/discharge function
• Limits high short-circuit currents of the battery
• Intelligent power flow control of the system in the Sunny Central
• Coordinated protection concept with sunny central
• High efficiency at different DC voltages as well as partial and full load
• Enables new business models


Specifications

• Type: DC-DC
• Power Rating: 500 kW at 1000 Vdc
• Voltage Rating: 550-1500 V
• Input Voltage: 120-277 V
• Efficiency: 98.2%
• Dimensions: 33.5 in (Width) × 80.5 in (Height) × 39.4 in (Depth)
• Operating Temperature: -25 to 55°C


Documents

• Specification Sheet

Efficiency and Performance

The SMA Solar Technology AG 500 kW DC-DC Converter is designed to optimize solar energy conversion at 1000 Vdc. This high-performance unit is capable of handling input voltages between 550 V and 1500 V, making it highly versatile for different solar applications. With its advanced technology, this converter ensures that solar energy is harnessed effectively and fed into the grid or used for on-site consumption, so operators can benefit from increased energy yield.

Robust Design

This DC-DC converter is constructed with durability in mind. Its robust design allows it to withstand various environmental conditions, which is crucial for outdoor installations. Additionally, the converter features superior heat management systems that enhance its longevity and performance. Because it can operate reliably in temperatures ranging from -40°C to +60°C, it is well-suited for installations in diverse climates.

Easy Integration and Monitoring

The SMA Solar Technology converter is not only powerful but also user-friendly. Installation is straightforward, making it easy to integrate into existing systems. Moreover, it comes with advanced monitoring capabilities, allowing users to track performance metrics in real time. This feature helps identify inefficiencies quickly, so adjustments can be made to maximize energy generation efficiency.
