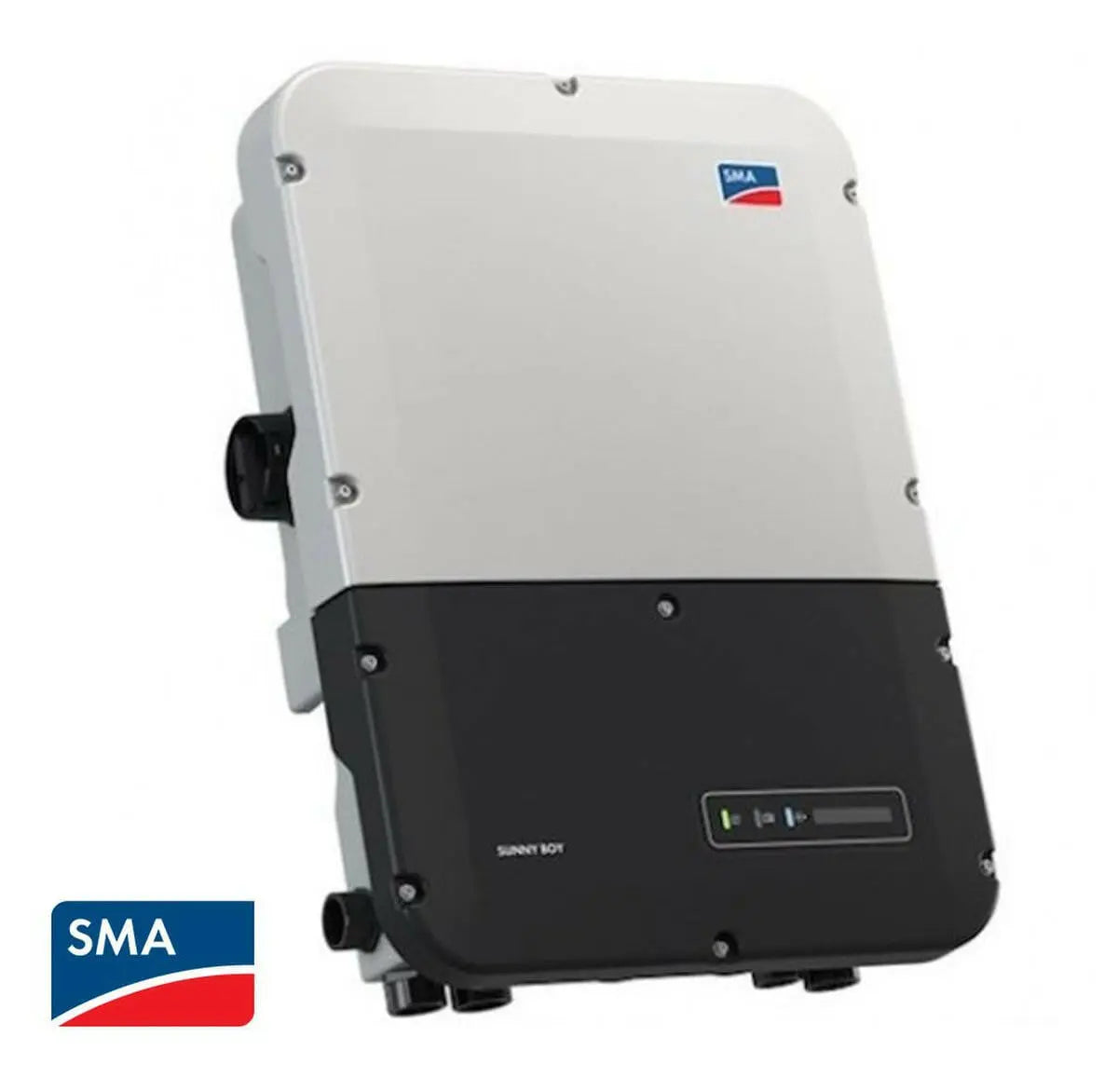

SMA Solar Technology AG 5 kW 240/211-264 V AC Coupled Transformerless Topology Sunny Boy Storage Battery Inverter

The Sunny Boy Storage SBS5.0-US-10 is a single phase 5kW, AC-coupled battery inverter. This type of inverter sometime also known as power inverter or hybrid inverter. The Sunny Boy Storage is design in such a way that in integrate your existing grid-tied PV system with power back-up. It can be used with industry-leading, high-voltage batteries and on-grid systems.The AC-coupled architecture will enable easy installation with three 10A individual battery inputs. And if needed the three inputs can made to form one 30A input plug. With the most cost effective, versatile and innovative residential storage the SMA Sunny Boy Storage SBS3.8-US-10 come extremely useful during grid power failure and secure power supply up to 2000W during both day and night.

Features

• AC coupled for new PV systems or retrofitting existing systems
• Compatible with many leading high-voltage batteries
• Quick and easy installation
• Multiple configuration options with the ability to expand
• High level of system integration provides unmatched monitoring and control
• Three separate DC inputs allow for maximum power and energy capacity
• Includes energy management functions for many different applications


Specifications

• Type: AC Coupled, Transformerless Topology
• Nominal AC Power: 5 kW
• Dimensions: 21.1 in x 28.5 in x 7.8 in
• DC Input Current: 40 A
• Nominal AC Voltage: 240/211-264 V
• AC Grid Frequency: 60 Hz
• Efficiency: 97.5%
• Maximum Output Power: 2000 W
• Maximum Output Amperage: 16 A
• Maximum DC Voltage: 600 V
• Operating Temperature: 25-60°C
• Warranty: 10 Years
• Weight: 57 lb
