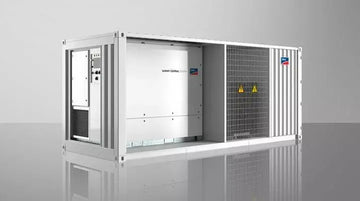

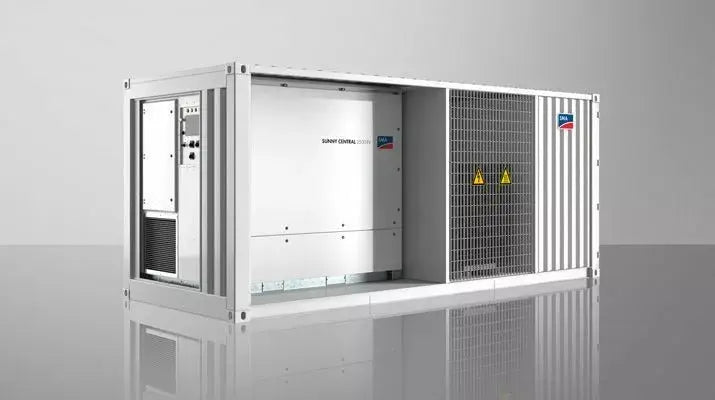

SMA Solar Technology AG 3780-4200 kVA at SC UP 10-35 kV Medium Voltage Power Station

With the power of the new robust central inverters, the Sunny Central UP or Sunny Central Storage UP, and with perfectly adapted medium-voltage components, the new MV Power Station offers even more power density and is a turnkey solution available worldwide. Being the ideal choice for the new generation of PV power plants operating at 1500 VDC, the integrated system solution is easy to transport and quick to assemble and commission. The MVPS and all components are type-tested. The MV Power Station combines rigorous plant safety with maximum energy yield and minimized deployment and operating risk. The MV Power Station is prepared for DC coupling.

Features

• Station and all individual components type-tested
• Optimally suited to extreme ambient conditions
• Plug and play concept
• Completely pre-assembled for easy set-up and commissioning
• Easy planning and installation
• Low transport costs due to 20-foot skid
• One design for the whole world
• DC-coupling ready


Specifications

• Type: Medium Voltage
• Number of DC Inputs: 1500 V
• Power Rating: 3780-4200 kVA at SC UP
• Voltage Rating: 10-35 kV
• Frequency Rating: 50/60 Hz
• Efficiency: 98.5-98.8%
• Dimensions: 6058 mm Width x 2896 mm Height x 2438 mm Depth


Documents

• Specification Sheet
