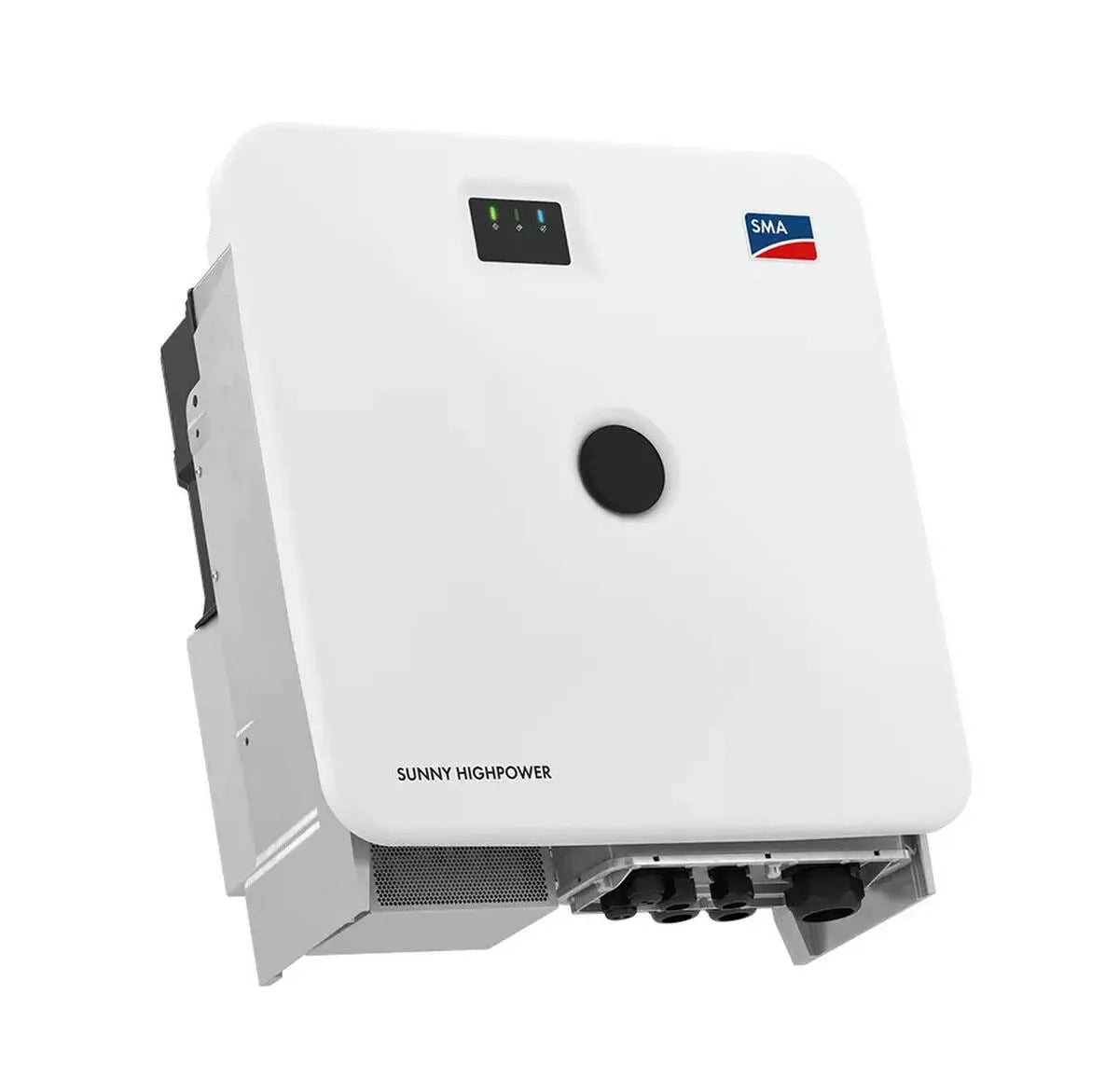

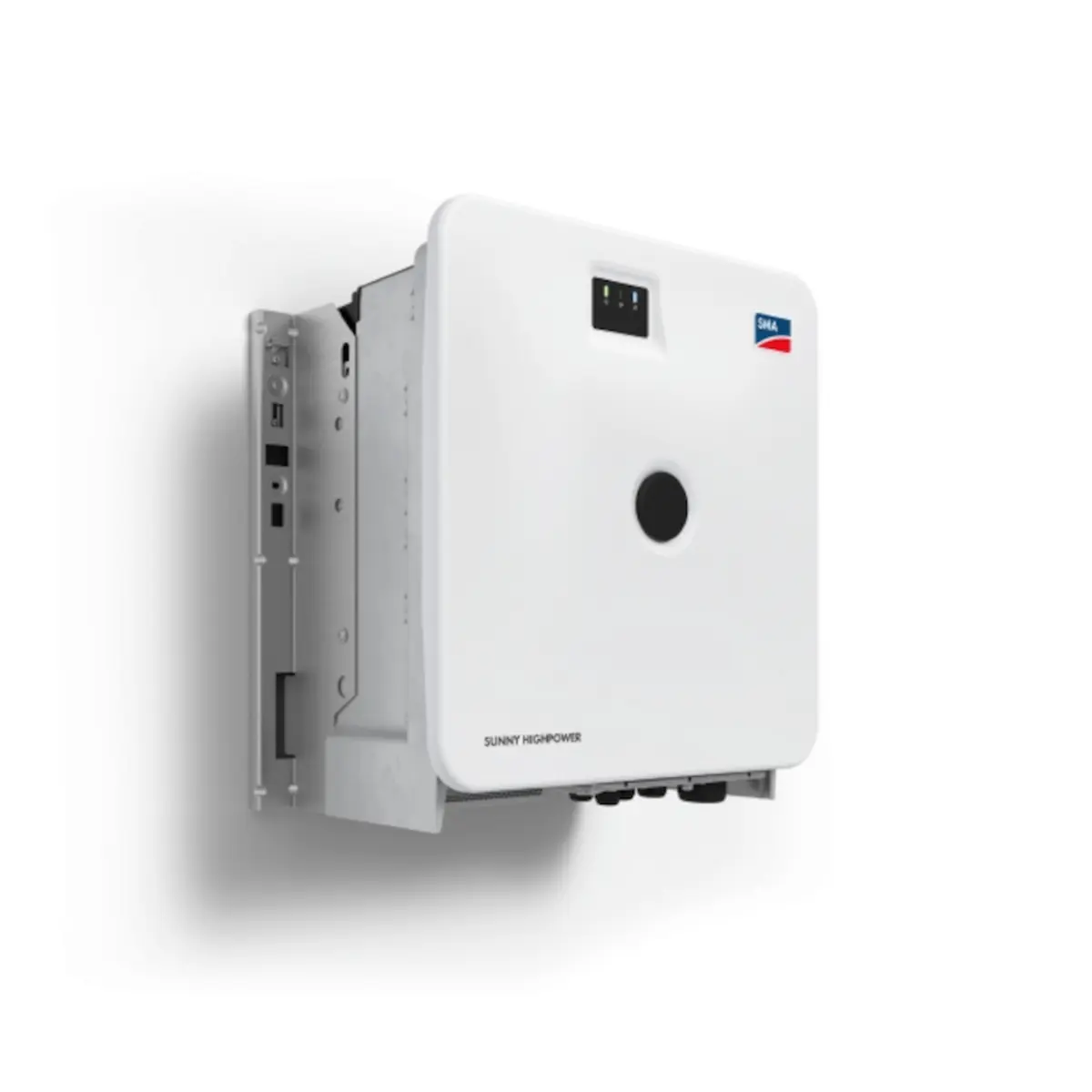

SMA 150KV 600VAC 1500V Sunny Highpower Peak3 (SHP 150-US-21) String Inverter

SMA String Inverter: Unleashing Solar Potential

The Sunny Highpower PEAK3 is the central component of the SMA solution for PV power plants with a decentralized architecture and system voltages of 1500 V DC. This compact string inverter enables cost-optimized solutions for industrial PV applications thanks to its high power density. It also provides a simple way of transport and allows for quick installation and commissioning. This string inverter with 150 kW of power is equipped with the automatic SMA Smart Connected service for proactive servicing that facilitates operation and maintenance and reduces service costs throughout the entire project lifetime.

Features

• High power density with 150 kW thanks to its compact structure
• Max. yield due to possible DC/AC ratio of up to 150%
• Superior PV system availability with 150 kW units
• Innovative digital features aligned with the energy management platform ennexOS
• For DC input voltages up to 1500 V
• Flexible DC solutions with customer-specific PV array junction boxes


Specifications

• Type: Transformless Topology
• Length: 32.7 in
• Width: 30.3 in
• Depth: 17.5 in
• Input Voltage: 1500 V
• Output Voltage: 600/480-690 V
• Power Rating: 150000 W
• Input Current: 180/325 A
• Amperage Rating: 151 A
• Efficiency: 99%
• Frequency Rating: 50 Hz
• Cooling Type: OptiCool, Active, Speed-Controlled Fan
• Power Factor: 1
• Mounting Type: Rack
• Connection Type: Terminal Lug/Screw Terminal
• Operating Temperature: -13 to 140 deg F
• Display Type: LED
• Phase: 3
• Warranty: 5 Years
• Weight: 21.8 lb
• Standards: UL 62109, UL 1998, CAN/CSA-C22.2 No.62109, FCC Part 15, Class A, IEEE 1547:2018, UL 1741-SA - CA Rule 21, HECO Rule 14H, UL1741SB


Documents

• Specification Sheet
• Owners/User Manual
• Instruction/Installation Manual

High Performance and Reliability

The SMA String Inverter is a top-notch solution for solar systems, capable of delivering 150KV output while handling 600VAC power effectively. This inverter is designed specifically for high-efficiency energy conversion, making it ideal for commercial and large-scale solar installations. Its advanced technology minimizes energy loss, ensuring that you get the maximum possible power from your solar panels. Therefore, you can trust in its performance, as it optimizes energy capture and usage.

User-Friendly Design and Monitoring

This inverter not only offers power but also prioritizes user accessibility. The SMA String Inverter features an intuitive interface and built-in monitoring capabilities. This means you can easily track performance and diagnose potential issues in real-time through your smartphone or computer. The convenience of monitoring ensures that your solar energy system operates at its peak efficiency, providing peace of mind.

Durability and Safety Features

Safety is crucial when it comes to electrical installations, and the SMA String Inverter excels in this area. It is built with robust materials and integrated safety features, protecting both the inverter and your solar system from unexpected surges or faults. This durability ensures a long service life, so you won’t have to worry about frequent replacements or repairs. As a result, you can invest in renewable energy without the fear of an unreliable system.
