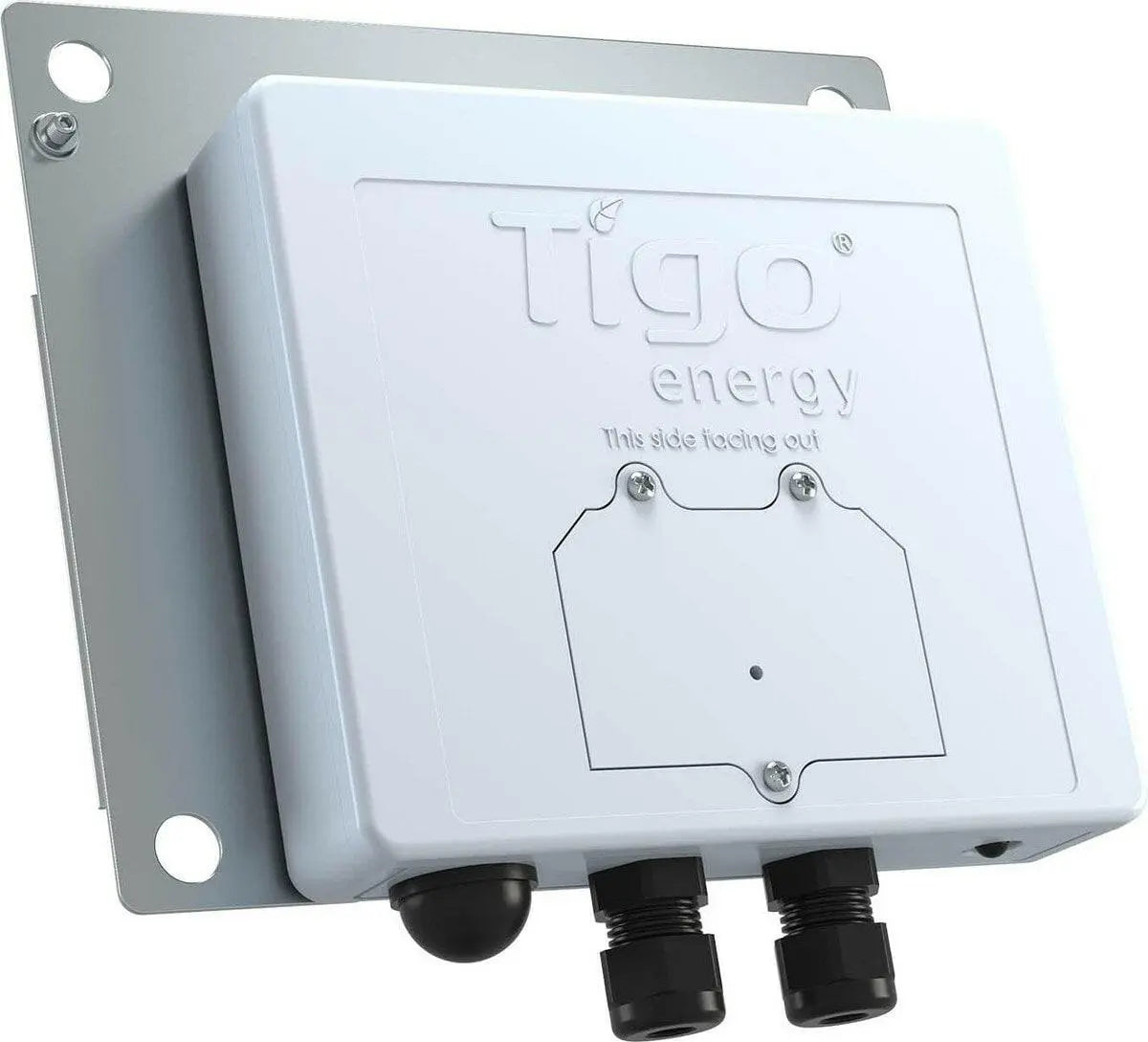

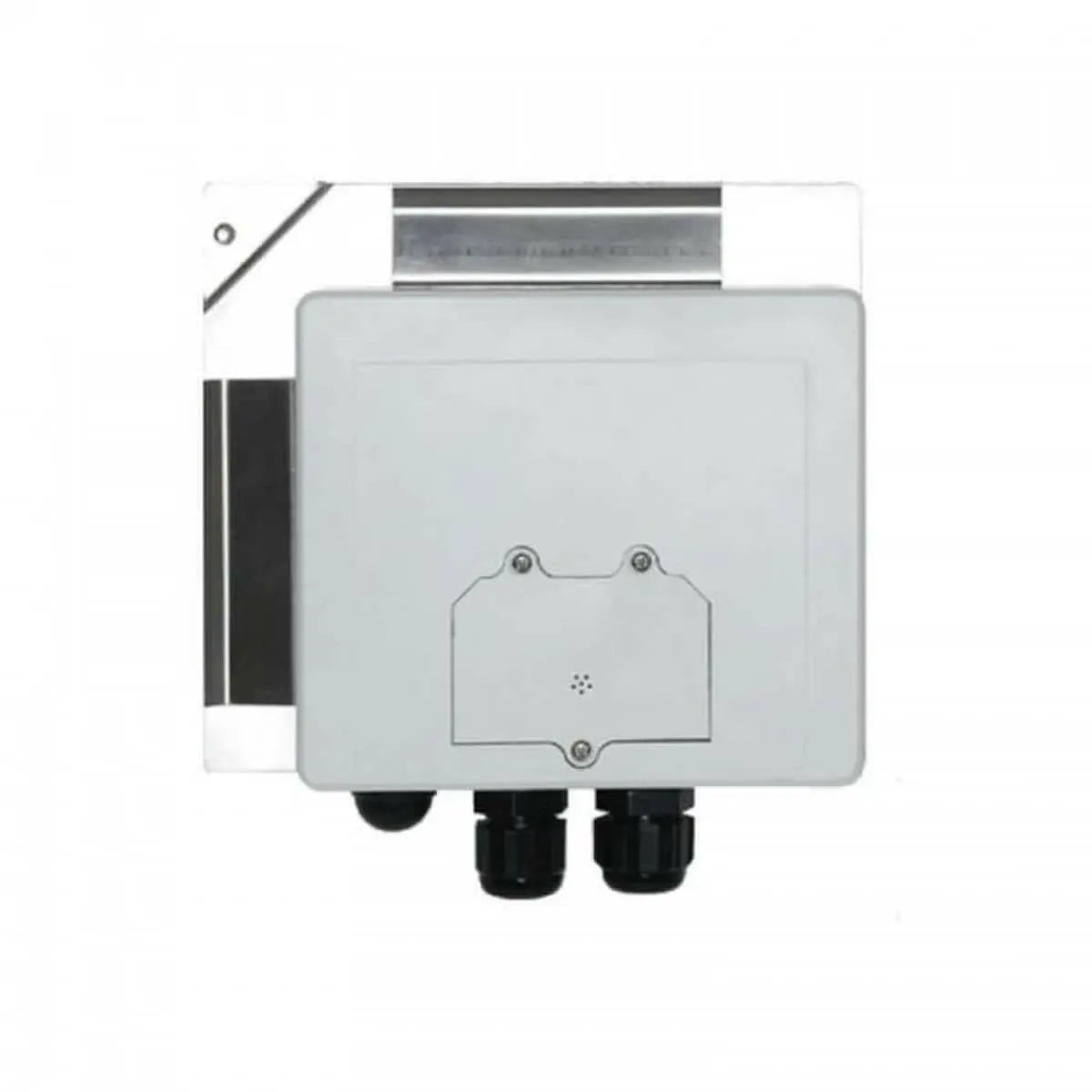

SMA Solar Technology AG 141.3 mm Width x 48.5 mm Height x 33.3 mm Depth IP67 4 Pins M12 Male Connector Straight Plug TS4 Gateway

The Tigo Energy Gateway provides a reliable wireless communication between the MMU management unit and each optimizer. This solution provides clear, concise communication with the optimizers on the array. Each Gateway can communicate with up to 120 optimizers. Multiple gateway units can communicate with each other to accommodate larger PV arrays. The Gateway enables wireless communication for up to 120 TS4-R components. It can be installed easily on the rear of the module or the substructure and has a range of up to 15 meters. The connection to Cloud Connect Advanced is a wired RS485 connection.

Specifications

• • Suitable For Use With: TIGO Optimizer Integrated with SMA Inverters
  • Dimensions: 141.3 mm Width x 48.5 mm Height x 33.3 mm Depth
  • Includes: IP67 4 Pins M12 Male Connector Straight Plug
  • Mounting Type: Module Frame or Rack
  • Wireless Range: 15 m
  • Number of Modules: 120 Max
  • Operating Temperature: -30 to 70°C
  • Enclosure Rating/IP Rating: IP65
