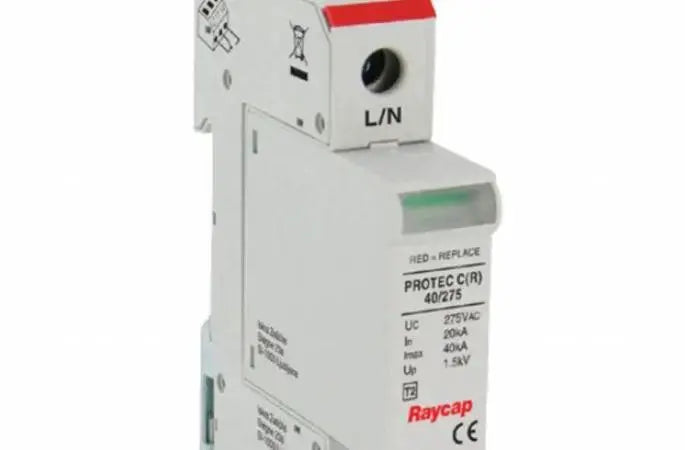

SMA AC Surge Protection Kit (Type 1/2) – For Sunny Tripower CORE1-US

Protect your SMA Sunny Tripower CORE1-US inverter from damaging voltage surges with this high-performance AC Surge Protection Kit. Engineered for commercial and industrial PV systems, this kit provides Type 1 and Type 2 protection, safeguarding against lightning strikes, grid switching surges, and transient over-voltages.

Key Features

• Comprehensive Protection: Combines Type 1 and Type 2 surge protection for complete coverage on both line and neutral conductors.

• Designed for CORE1-US Inverters: Fully compatible with SMA Sunny Tripower CORE1-US (STP xx-US-40) series.

• Easy Installation: Pre-assembled for simple integration and minimal wiring.

• Replaceable Modules: Field-replaceable surge cartridges minimize downtime and maintenance costs.

• Compact Design: Space-saving layout fits seamlessly into existing inverter systems.

Technical Specifications

• Model: AC_SPD_KIT2_T1T2

• Protection Class: Type 1 + Type 2 (per IEC 61643-11)

• Rated Discharge Current (In): 20 kA

• Maximum Discharge Current (Imax): 50 kA

• Response Time: < 25 ns

• System Voltage: 480 VAC (3-phase)

• Configuration: 4-pole (L1, L2, L3, N)

• Operating Temperature: −40 °C to +80 °C

• Compatibility: SMA Sunny Tripower CORE1-US Inverters

Applications

Ideal for commercial, industrial, and utility-scale solar PV systems using SMA Sunny Tripower CORE1-US inverters. Recommended for installations in areas with frequent lightning activity or unstable grid conditions.

Package Includes

• (1) AC Surge Protection Kit – Type 1/2

• (4) Surge Protection Modules (L1, L2, L3, N)

• Installation Guide

Why Choose SMA Surge Protection

Prevent costly downtime and inverter damage by adding SMA’s certified AC surge protection. This kit ensures your solar investment stays protected and compliant with modern electrical safety standards.
